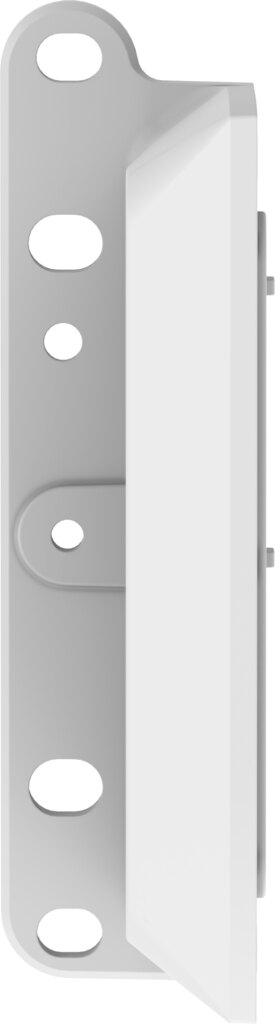

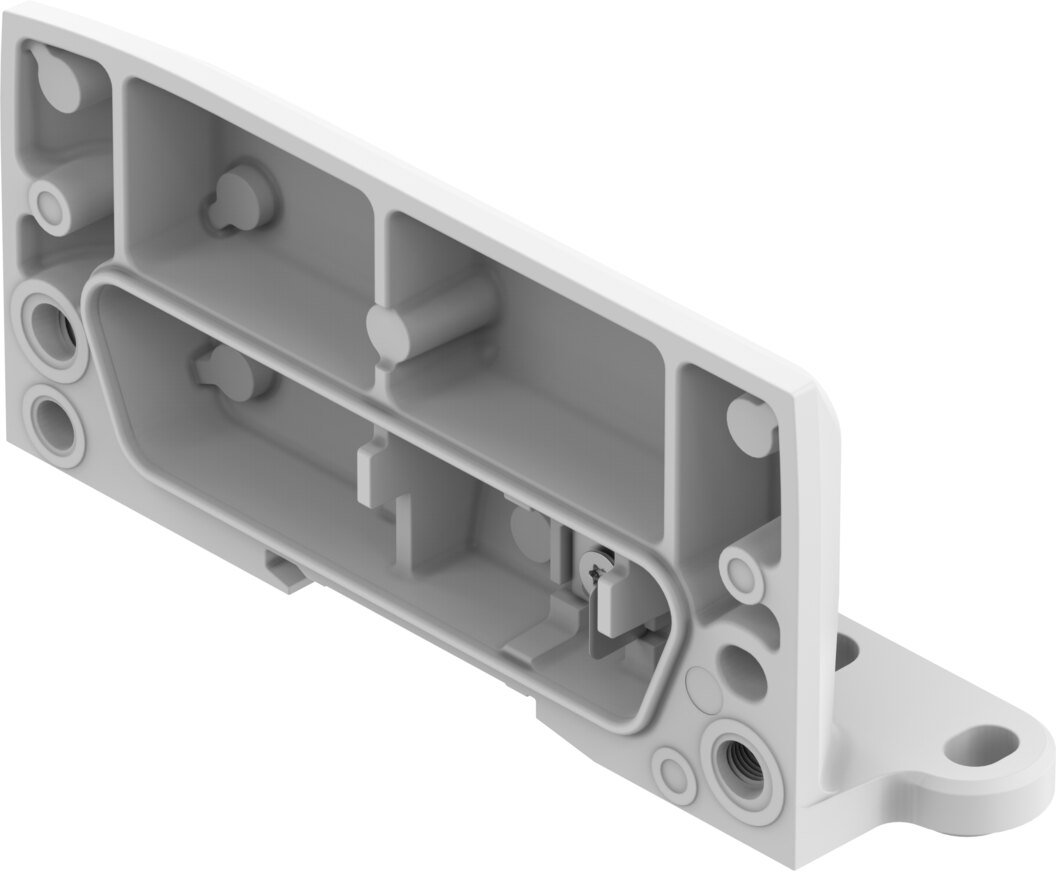

End plate for CPX-AP-A, genuine Festo part CPX-AP-A-EPR - Festo 8112477
The end plate CPX-AP-A-EPR forms the lateral end of the CPX-AP-A system. Key data: ambient temperature -20 to 50 °C, dimensions 30.4 mm x 117.2 mm x 53.6 mm (W x L x H) and end plate made of coated die-cast aluminium. Further data: seals made of polyurethane foam.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The end plate CPX-AP-A-EPR forms the lateral end of the CPX-AP-A system. The key selection criteria are ambient temperature -20 to 50 °C and dimensions 30.4 mm x 117.2 mm x 53.6 mm (W x L x H).
Advantages
- Suitable for ambient temperatures of -20 to 50 °C
- Dimensions 30.4 mm x 117.2 mm x 53.6 mm (W x L x H)
- Corrosion resistance class CRC 1 (low corrosion stress)
- End plate: coated die-cast aluminium
- Seals: polyurethane foam
- PWIS conformity to VDMA24364-B2-L
Application
CPX-AP-A-EPR is used to build and extend automation solutions based on the CPX-AP-A system.
Technical data
| Type | CPX-AP-A-EPR |
|---|---|
| Festo part number | 8112477 |
| Dimensions (W x L x H) | 30.4 mm x 117.2 mm x 53.6 mm |
| Type of mounting | On DIN rail via accessories, Via through-hole for M5 screw, Via through-hole for M6 screw |
| Product weight | 116 g |
| Mounting position | Any, on H-rail: horizontal |
| Ambient temperature | -20 to 50 °C |
| Note on ambient temperature | Observe ambient temperature derating according to IEC 61131-2:2017 |
| Storage temperature | -20 to 70 °C |
| Relative air humidity | 5 - 95%, Non-condensing |
| Nominal altitude of use | ≤ 2000 m ASL (> 79.5 kPa) |
| Max. installation height | 3500 m |
| Note on max. installation height | Observe ambient temperature derating according to IEC 61131-2:2017 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Note on vibration resistance | Transport application test with severity class 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Note on shock resistance | 30 g/11 ms to EN 60068-2-27, SG1 on DIN rail, SG2 on direct mounting, Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Protection class | III |
| Overvoltage category | II |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS compliant, Free of halogen, Free of phosphoric acid ester |
| Material end plate | Coated die-cast aluminium |
| Material screws | Nickel-plated steel |
| Material seals | Polyurethane foam |
| Weight | 0.125 kg |
| Manufacturer | Festo |
| Hersteller-Nr | CPX-AP-A-EPR |
| EAN | 4052568589523 |
| Zolltarifnummer | 85389099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Temperaturbereich | -20-50 °C |
| Temperature (max.) | 50 |
