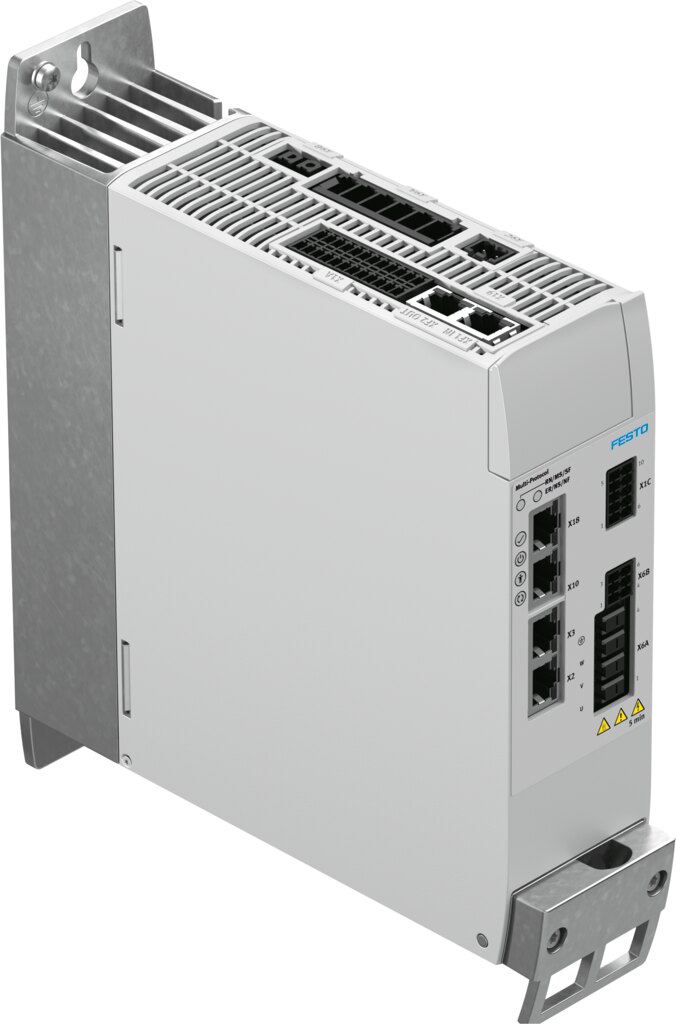

Servo drive 1200 VA 400 V three-phase CMMT-AS-C3-11A-P3-MP-S1 - Festo 8143166

Festo ✓ Original product Brand new

The Festo CMMT-AS-C3-11A-P3-MP-S1 servo drive delivers 1200 VA nominal power and 2.5 A nominal current per phase from a three-phase 400 V AC supply. Protocol: EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET IRT, PROFINET RT. Nominal power 1200 VA, peak power 3600 VA.

Net
€1,150.40
excl. VAT
Item FES-8143166
Manufacturer no. CMMT-AS-C3-11A-P3-MP-S1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo CMMT-AS-C3-11A-P3-MP-S1 servo drive delivers 1200 VA nominal power and 2.5 A nominal current per phase from a three-phase 400 V AC supply.

Benefits

  • Nominal power 1200 VA, peak power 3600 VA
  • 2.5 A nominal and 7.5 A peak current per phase for up to 2 s
  • Mains connection three-phase 400 V AC
  • Fieldbus and network connectivity: EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET IRT, PROFINET RT
  • Conforms to EN 61800-3, EN 61800-5-1, EN 61800-5-2, EN ISO 13849-1

Applications

It is integrated via EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET IRT, PROFINET RT. With 3600 VA peak power it handles positioning and synchronisation tasks in handling, assembly and packaging.

Technical data

TypeCMMT-AS-C3-11A-P3-MP-S1
Festo part number8143166
Type of mountingMounting plate, attached with screws
Mounting positionOpen convection, vertical
Product weight2100 g
DisplayGreen/yellow/red LED
Operator controlsOptional: Operator unit CDSB
Conforms to standardEN 61800-3, EN 61800-5-1, EN 61800-5-2, EN ISO 13849-1
Based on standardEN 50581, EN 60204-1, EN 61508-1, EN 61508-2, EN 61508-3, EN 61508-4, EN 61508-5, EN 61508-6, EN 61508-7, EN 61800-2, EN 62061
ApprovalRCM, German Technical Control Board (TÜV), c UL us - Listed (OL)
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, to EC Machinery Directive, in accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC, to UK regulations for machines, to UK RoHS instructions
Certificate issuing authorityGerman Technical Control Board (TÜV) Rheinland UK Ltd 01/205U/5640.01/23, German Technical Control Board (TÜV) Rheinland 01/205/5640.01/23, UL E331130
Storage temperature-25 to 55 °C
Ambient temperature0 to 50 °C
Note on ambient temperaturePower must be reduced by 3% per °C at ambient temperatures above 40°C
UL ambient temperature0 to 50 °C
Relative air humidity5 - 90%, Non-condensing
Maximum installation height2000 m
Note on maximum installation heightFrom 1000 m: power reduction by 1% per 100 m
Degree of protectionIP20
Protection classI
Overvoltage categoryIII
Pollution degree2
Immunity to surge6 kV
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Phases of nominal operating voltage3 Phase ~
Nominal operating voltage AC400 V
Permissible voltage fluctuations+/-10%
Input voltage range AC200 to 480 V
Mains frequency48 to 62 Hz
Nominal current, load supply3 A
Peak current load power supply9 A
Active PFCNo
Mains filterBuilt in
System voltage to EN 61800-5-1300 V
Maximum short circuit current rating of the mains10 kA
Mains typesPN, IT
Nominal voltage load voltage DC560 V
Permissible range for load power supply±10%
Maximum intermediate circuit voltage DC800 V
Brake resistor, integrated130 Ohm
Pulse power, braking resistor5 kVA
Pulse energy for braking resistor850 Ws
Nominal power braking resistor (IEC)48 W
Brake resistor, external130 to 250 Ohm
Maximum continuous output of the external braking resistor (IEC)600 W
Nominal voltage for logic power supply DC24 V
Permissible range for logic voltage±20%
Current consumption of logic power supply without clamping brake0.5 A
Current consumption for logic supply with parking brake1.5 A
Maximum current consumption, logic power supply with clamping brake and I/O2 A
Output voltage range AC3x (0 - input) V
Nominal current per phase, effective2.5 A
Peak current per phase, effective7.5 A
Maximum peak current duration2 s
Nominal controller power1200 VA
Peak power3600 VA
Output frequency0 to 599 Hz
Maximum length of motor cable without external mains filter50 m
Maximum output current of holding brake1 A
Maximum voltage drop from logic supply to brake output0.8 V
Number of inputs for motor temperature sensor1
Controller operating modeCascade controller, P position controller, PI speed controller, PI current controller for F or M, Profile operation with record and direct mode, Interpolated mode via fieldbus, Synchronised operating modes, Homing, Setting-up, Autotuning
Operating modeField-oriented closed-loop control, Position resolution 24 bit/rev., Sampling rate 16 kHz, PWM with 8 or 16 KHz, Vector modulation with 3rd harmonic, Real-time data acquisition, 2x Input capture (x, v, F), 2x Output trigger (x, v, F), 2x position encoder input, 1x SYNC interface for encoder emulation or encoder input
Ethernet interface, functionParameterisation and commissioning
Ethernet interface, protocolTCP/IP
Field bus, protocolEtherCAT, EtherNet/IP, Modbus/TCP, PROFINET IRT, PROFINET RT
Fieldbus interface, functionBus connection incoming/outgoing, EtherCAT slave, PROFINET slave, EtherNet/IP slave
Fieldbus linkEtherCAT, EtherNet/IP, Modbus/TCP, PROFINET
Communication profileCiA402, CoE (CANopen over EtherCAT), EoE (Ethernet over EtherCAT), FoE (File over EtherCAT), PROFIdrive, DriveProfile
Process interfacingAC1: Adjustable-speed drives, AC3: Drives with positioning function, AC4: Synchronous servo application, Adjustable-speed drives, Drives with positioning function, I/O mode for 256 positioning records, Interpolated mode CSP, Interpolated mode CST, Interpolated mode CSV
Field bus interface, transmission rate100 Mbit/s
Field bus, connection type2x socket
Field bus, connection systemRJ45
Encoder interface, functionBiSS-C, EnDat 2.1 encoder, EnDat 2.2-sensor, Hiperface encoder, Incremental encoder, Nikon, SIN/COS encoder
Encoder interface 2, functionIncremental encoder, SIN/COS encoder
Synchronisation interface, functionEncoder emulation A/B/Z, Encoder input A/B/Z
Encoder interface output, features1 MHz maximum output frequency, maximum 16384 ppr
Encoder interface input, features1 MHz maximum output frequency, maximum 16384 ppr
Number of digital logic inputs12
Switching logic for inputsPNP (positive switching)
Features of logic inputFreely configurable in some cases, Safety inputs in some cases, Not galvanically isolated
Specification logic inputBased on IEC 61131-2, type 3
Working range of logic input-3 to 30 V
Number of high-speed logic inputs2
Time resolution of high-speed logic inputs1 µs
Number of digital logic outputs 24 V DC6
Switching logic for outputsPNP (positive switching)
Features of digital logic outputsFreely configurable in some cases, Not galvanically isolated, partial diagnostic outputs
Maximum current digital logic outputs20 mA
Number of high-speed switching outputs2
Time resolution of high-speed switching outputs1 µs
Number of floating switching outputs1
Maximum current of the floating switching outputs50 mA
Number of analogue setpoint inputs1
Features of setpoint inputsDifferential inputs, configurable for speed, configurable for current/force
Working range setpoint input± 10 V
Working range of analogue inputs± 10 V
Impedance of setpoint input70 kOhm
Safety functionSafe brake control (SBC), Safe torque off (STO), Safe Stop 1 (SS1)
Safety Integrity Level (SIL)Safe brake control (SBC)/SIL 3/SILCL 3, Safe torque off (STO)/SIL 3/SILCL 3
Safety sub-functions up to SIL3Safe torque off, Safe brake control
Performance Level (PL)Safe brake control (SBC)/category 3, performance level e, Safe Torque Off (STO)/category 4, performance level e
Safety sub-function up to PL e, Cat, 3Safe brake control
Safety sub-function up to PL e, Cat, 4Safe torque off
Diagnostic coverage97 %
SFF Safe Failure Fraction99 %
Hardware fault tolerance1
Number of safe 2-pin inputs2
Number of diagnostic outputs2
Weight2.3 kg
ManufacturerFesto
Hersteller-NrCMMT-AS-C3-11A-P3-MP-S1
EAN4052568598723
Zolltarifnummer85044095
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Protection ratingIP20
Temperaturbereich0-50 °C
Temperature (max.)50
