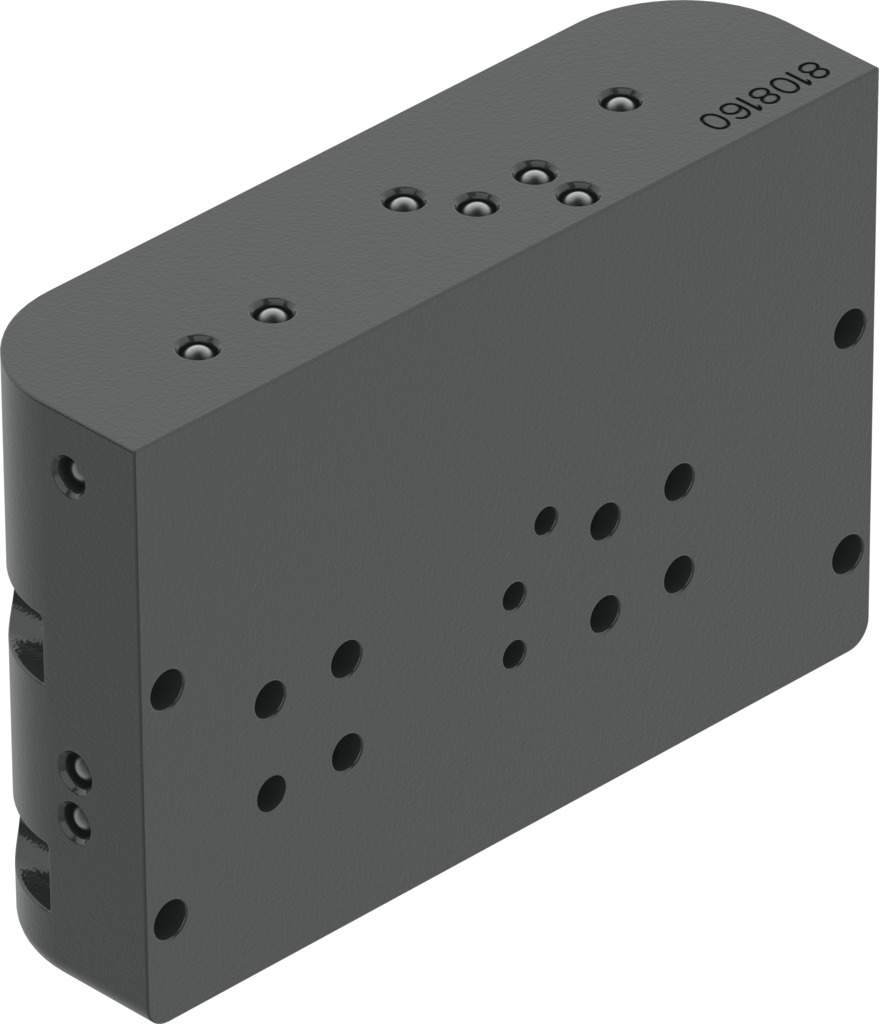

Manifold block double-acting 1/4 NPT 270 l/min CAPS-M1-VDE1-D-C-AL-N14-V - Festo 8154587

Festo ✓ Original product Brand new

The Festo CAPS-M1-VDE1-D-C-AL-N14-V manifold block is mounted in accordance with VDI/VDE 3845 and feeds compressed air double-acting at 270 l/min standard nominal flow to the actuator. Port 1/4 NPT. Safety position: Safety position - pneumatic outlets closed.

Net
€149.09
excl. VAT
Item FES-8154587
Manufacturer no. CAPS-M1-VDE1-D-C-AL-N14-V
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo CAPS-M1-VDE1-D-C-AL-N14-V manifold block is mounted in accordance with VDI/VDE 3845 and feeds compressed air double-acting at 270 l/min standard nominal flow to the actuator.

Key benefits

  • Standard nominal flow rate 270 l/min
  • Safety position: Safety position - pneumatic outlets closed
  • Mounting in accordance with VDI/VDE 3845
  • LABS (PWIS) conformity VDMA24364 zone III
  • Housing made of aluminium, powder-coated

Areas of use

Compressed air is connected via 1/4 NPT. Dimensions 65 mm x 104 mm x 28 mm.

Technical data

TypeCAPS-M1-VDE1-D-C-AL-N14-V
Festo part number8154587
Dimensions (W x L x H)65 mm x 104 mm x 28 mm
Mode of operationDouble-acting
Design characteristicsSafety position - pneumatic outlets closed
Standard nominal flow rate (standardised to DIN 1343)270 l/min
LABS (PWIS) conformityVDMA24364 zone III
Product weight465 g
Type of mountingin accordance with VDI/VDE 3845
Pneumatic connection1/4 NPT
Note on materialsRoHS compliant
Material screwsHigh-alloy stainless steel
Material housingAluminium, powder-coated
ManufacturerFesto
Hersteller-NrCAPS-M1-VDE1-D-C-AL-N14-V
EAN4052568577322
Zolltarifnummer76169990
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
