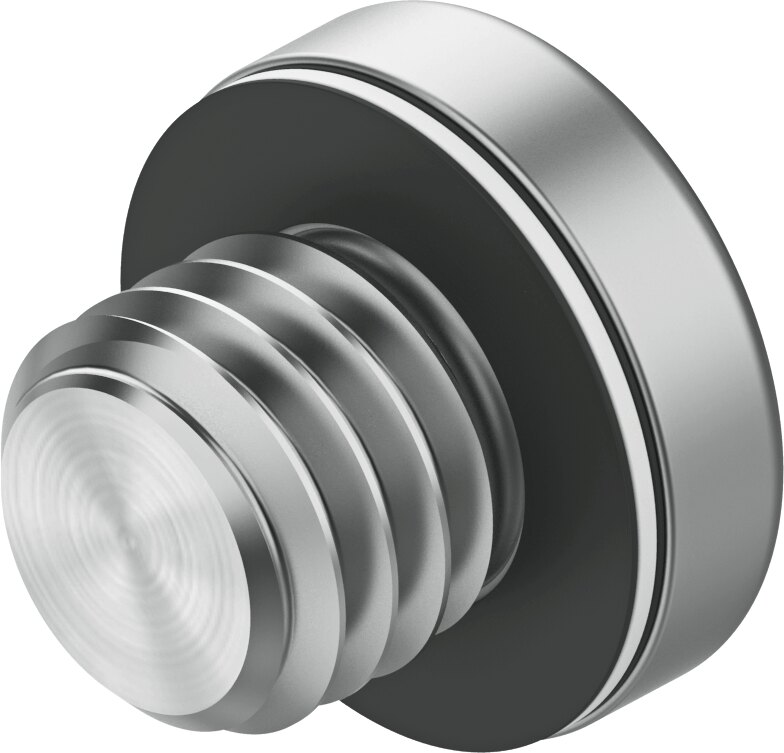

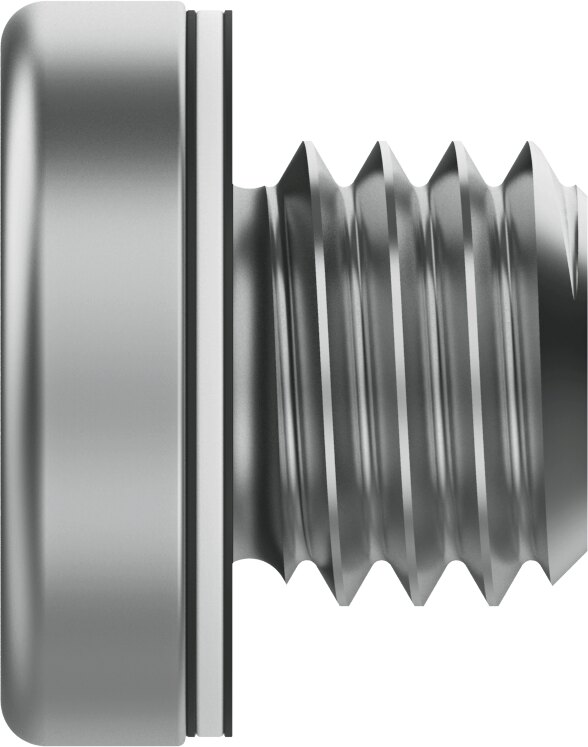

Blanking plug with male thread M5 made of chemically nickel-plated steel B-M5-F1A - Festo 8142288

Festo ✓ Original product Brand new

The B-M5-F1A blanking plug reliably closes free threaded ports. Connection: male thread M5. Materials: blanking plug made of chemically nickel-plated steel, o-ring made of stainless steel and NBR.

Net
€1.12
excl. VAT
Item FES-8142288
Manufacturer no. B-M5-F1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The B-M5-F1A blanking plug reliably closes free threaded ports. Connection: male thread M5.

Benefits

  • Blanking plug made of chemically nickel-plated steel
  • Defined assembly with nominal tightening torque 1.5 Nm
  • Battery production F1a: reduced Cu/Zn/Ni content
  • Cleanroom suitable, Class 6 to ISO 14644-1
  • PWIS (LABS) conformity to VDMA24364-B2-L

Applications

B-M5-F1A in use: for spare ports on valve terminals, manifold rails and service units.

Technical data

FeatureValue
TypeB-M5-F1A
Festo part number8142288
PWIS (LABS) conformityVDMA24364-B2-L
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni content (F1a)
Cleanroom suitability to ISO 14644-14Class 6 to ISO 14644-1
Nominal tightening torque1.5 Nm
Tolerance of nominal tightening torque-30 %
Mounting typeHexagon socket A/F 2.5
Pneumatic connection 1Male thread M5
Material noteRoHS compliant
Blanking plug materialChemically nickel-plated steel
O-ring materialstainless steel, NBR
Weight0.0014 kg
ManufacturerFesto
Hersteller-NrB-M5-F1A
EAN4052568577056
Zolltarifnummer73079910
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadM 5
Thread typeExternal thread
Schlüsselweite [mm]2,5
Pneumatic connectionM5 AG
