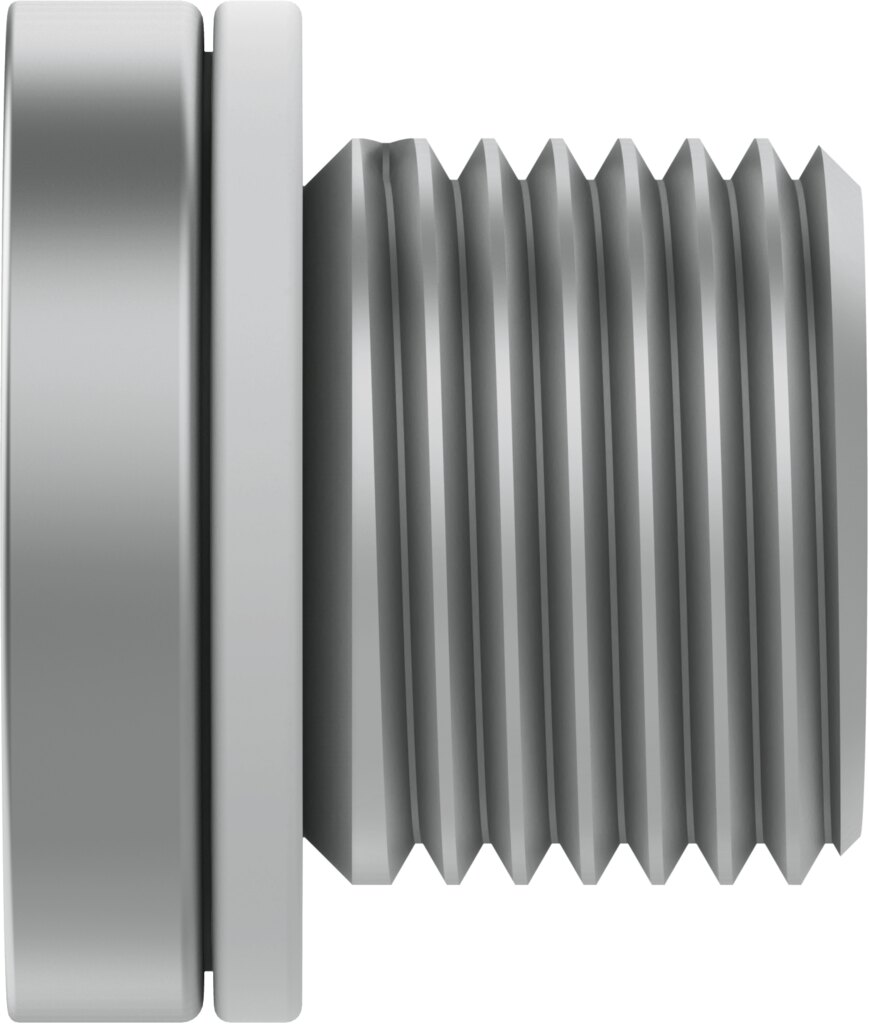

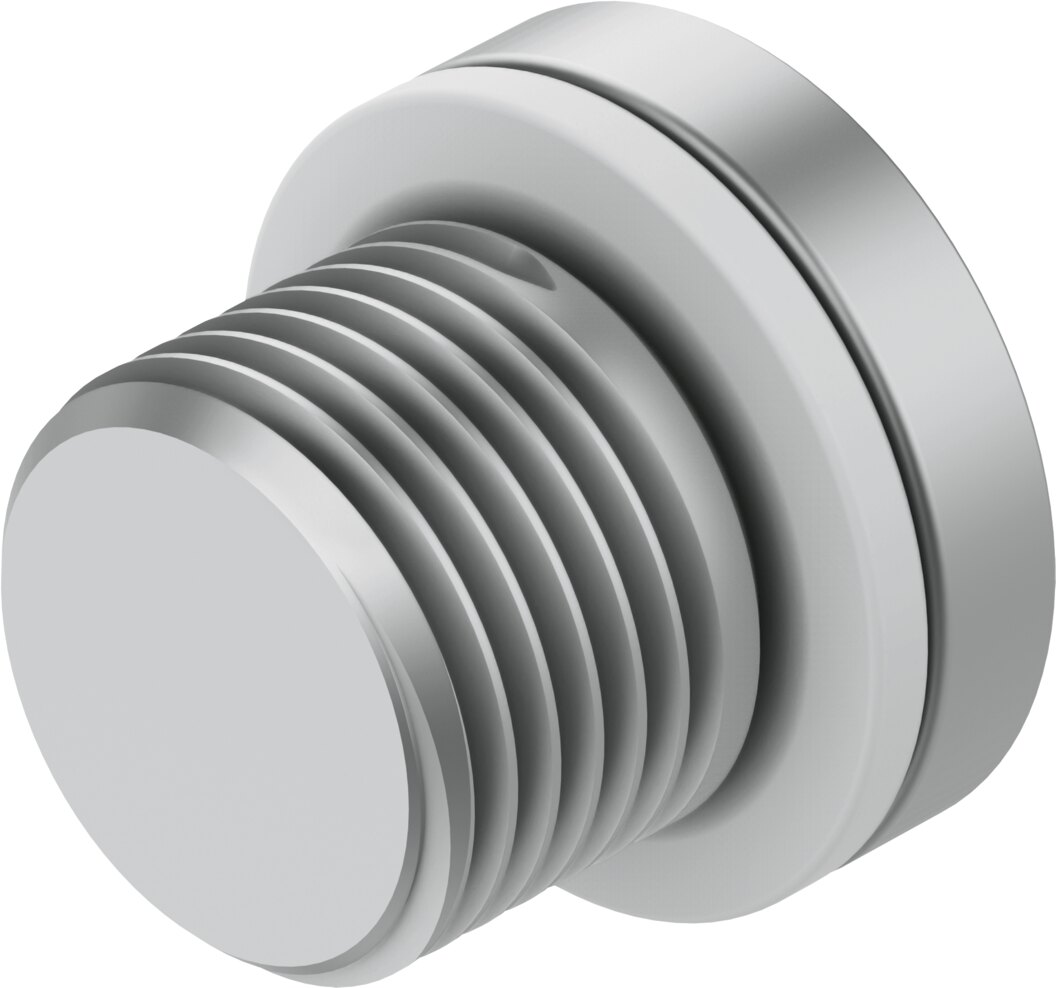

Blanking plug with male thread G1/4 made of chemically nickel-plated steel B-1/4-F1A - Festo 8142290
The B-1/4-F1A blanking plug reliably closes free threaded ports. Connection: male thread G1/4. Materials: blanking plug made of chemically nickel-plated steel, o-ring made of PA and TPE-U(PUR).
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The B-1/4-F1A blanking plug reliably closes free threaded ports. Connection: male thread G1/4.
Benefits in use
- Blanking plug made of chemically nickel-plated steel
- Defined assembly with nominal tightening torque 8.5 Nm
- Battery production F1a: reduced Cu/Zn/Ni content
- Cleanroom suitable, Class 6 to ISO 14644-1
- PWIS (LABS) conformity to VDMA24364-B2-L
- Design to DIN 908
Applications
Typical use of the B-1/4-F1A: for spare ports on valve terminals, manifold rails and service units.
Technical data
| Feature | Value |
|---|---|
| Type | B-1/4-F1A |
| Festo part number | 8142290 |
| Conforms to standard | DIN 908 |
| PWIS (LABS) conformity | VDMA24364-B2-L |
| Suitability for Li-ion battery production | Suitable for battery production with reduced Cu/Zn/Ni content (F1a) |
| Cleanroom suitability to ISO 14644-14 | Class 6 to ISO 14644-1 |
| Nominal tightening torque | 8.5 Nm |
| Tolerance of nominal tightening torque | -20 % |
| Mounting type | Hexagon socket A/F 6 |
| Pneumatic connection 1 | Male thread G1/4 |
| Material note | RoHS compliant |
| Blanking plug material | Chemically nickel-plated steel |
| O-ring material | PA, TPE-U(PUR) |
| Weight | 0.015 kg |
| Manufacturer | Festo |
| Hersteller-Nr | B-1/4-F1A |
| EAN | 4052568577070 |
| Zolltarifnummer | 73079910 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 AG |
| Thread type | External thread |
| Schlüsselweite [mm] | 6 |
| Norm | DIN 908 |
| Pneumatic connection | G1/4 AG |
