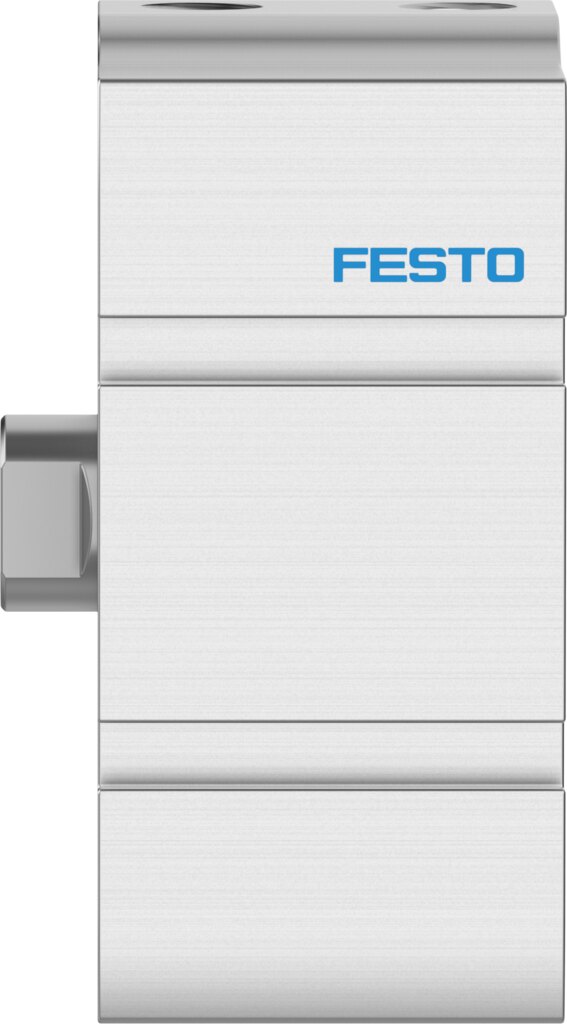

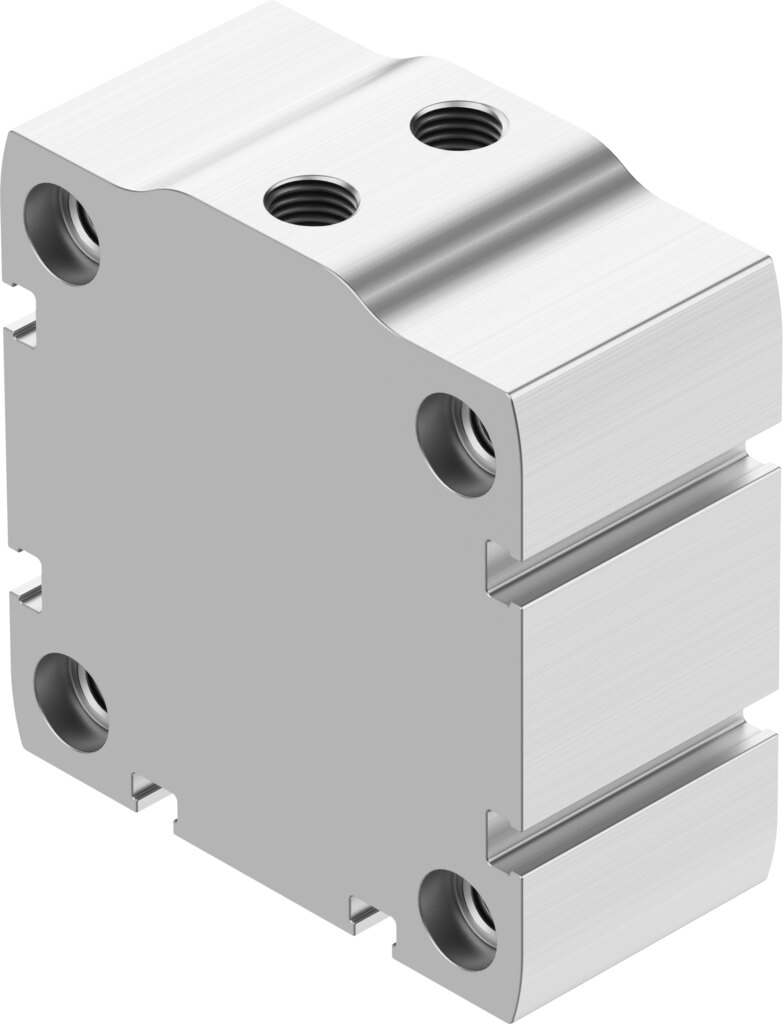

Double-acting compact cylinder Ø 63 mm stroke 5 mm ADN-S-63-5-I-P - Festo 5132653

For 5 mm of travel, the double-acting compact cylinder ADN-S-63-5-I-P with a Ø 63 mm piston produces a theoretical force of 1870 N at 6 bar, and 1750 N on the return. The load is coupled via the piston rod with female thread, compressed air is supplied via G1/8. It is rated for 0.4 to 10 bar operating pressure at ambient temperatures of 0 to 80 °C.

Benefits at a glance

• 1870 N advance and 1750 N return force at 6 bar
• Cushioning P: elastic rings at both ends for 0.64 J
• Piston rod with female thread made of high-alloy stainless steel
• Pressure range 0.4 to 10 bar
• Cleanroom suitable: class 5 according to ISO 14644-1
• LABS (PWIS) conformity to VDMA24364-B2-L

Use

With a 5 mm stroke, the ADN-S-63-5-I-P suits clamping, holding and stopping tasks in fixtures that need only a few millimetres of travel. The medium is compressed air to ISO 8573-1:2010 [7:4:4], and the 5 mm stroke can be used in any mounting position.
