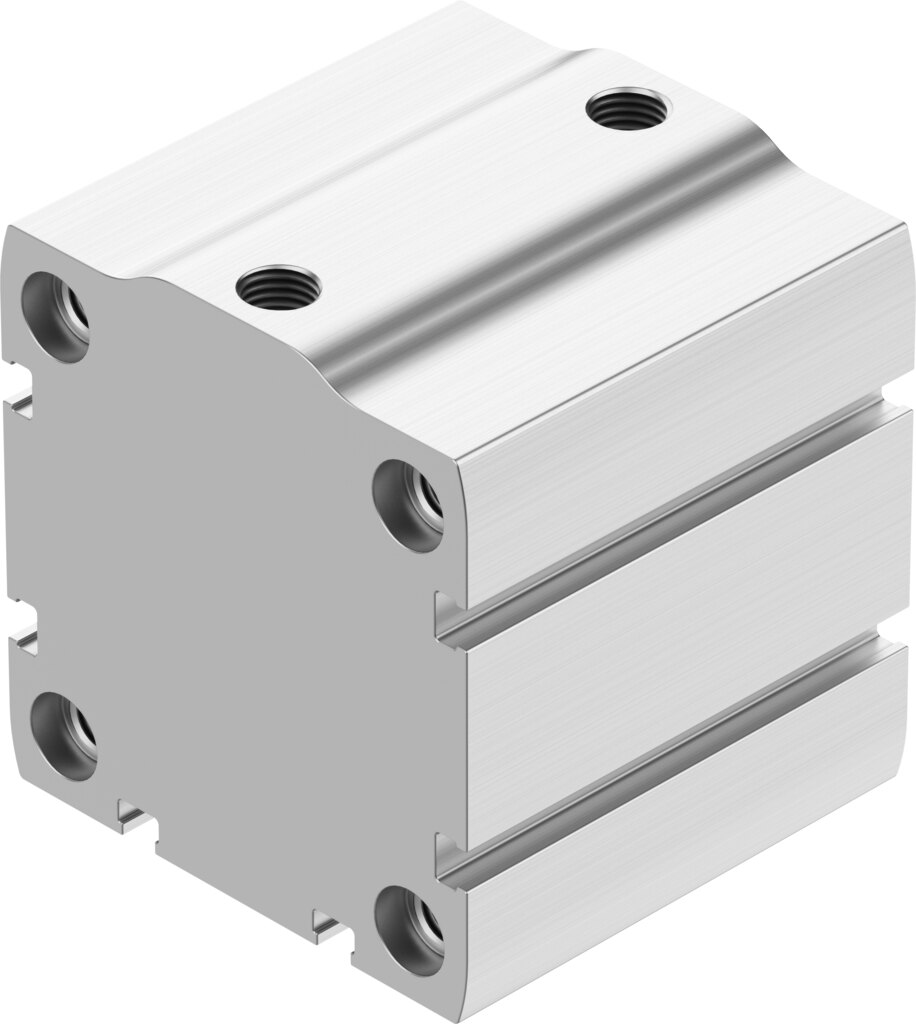

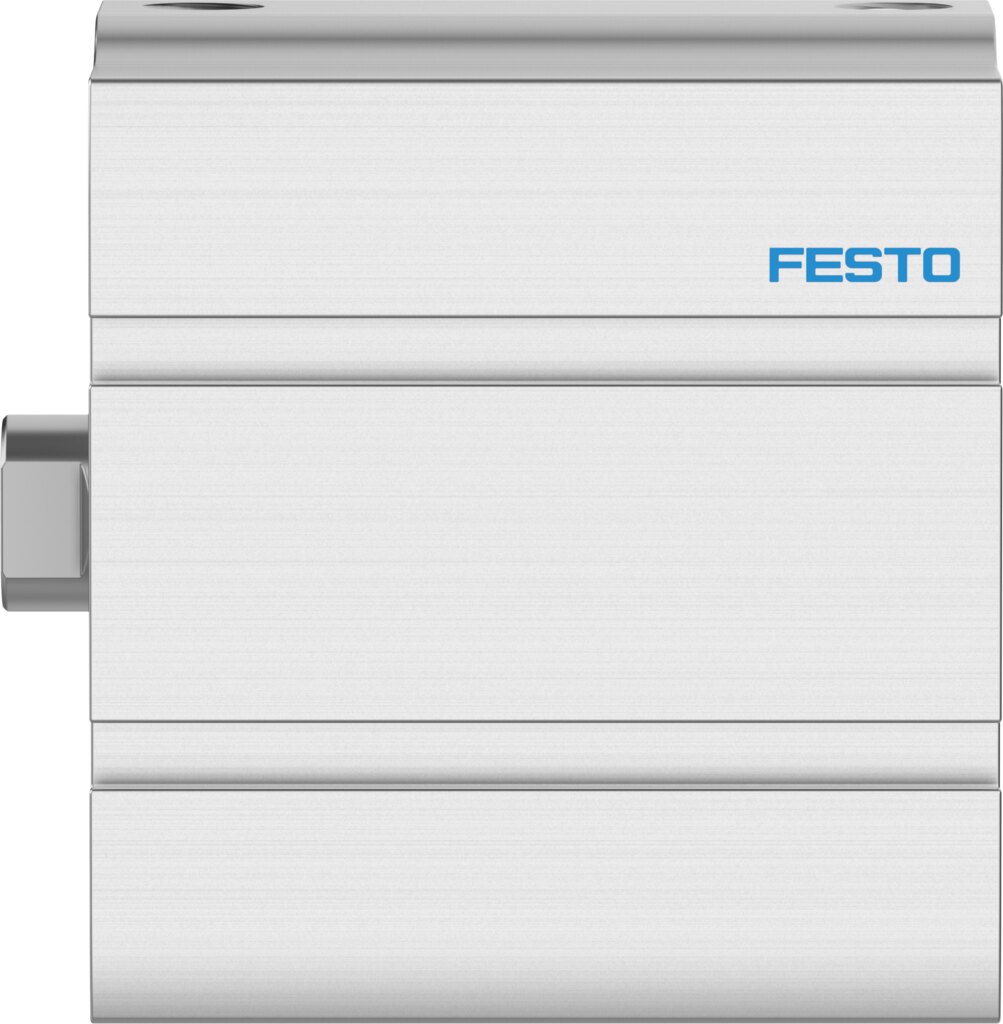

Double-acting compact cylinder Ø 63 mm stroke 40 mm ADN-S-63-40-I-P - Festo 5132660

The compact cylinder ADN-S-63-40-I-P provides 1870 N advance and 1750 N retracting force at 6 bar while its Ø 63 mm piston and 40 mm stroke take up little space. The piston rod with female thread takes the tooling or load, the air port is G1/8. Measured to ISO 14644-14, the cylinder is suitable for cleanrooms of class 5 according to ISO 14644-1.

Benefits

• 1870 N advance and 1750 N return force at 6 bar
• Cushioning P: elastic rings at both ends for 0.64 J
• Piston rod with female thread made of high-alloy stainless steel
• Pressure range 0.4 to 10 bar
• Cleanroom suitable: class 5 according to ISO 14644-1
• LABS (PWIS) conformity to VDMA24364-B2-L

Applications

The ADN-S-63-40-I-P handles pushing, lifting and ejecting movements over 40 mm in assembly systems, packaging machines and feeding equipment. The Ø 63 mm cylinder runs on compressed air to ISO 8573-1:2010 [7:4:4] and can be installed in any orientation.
