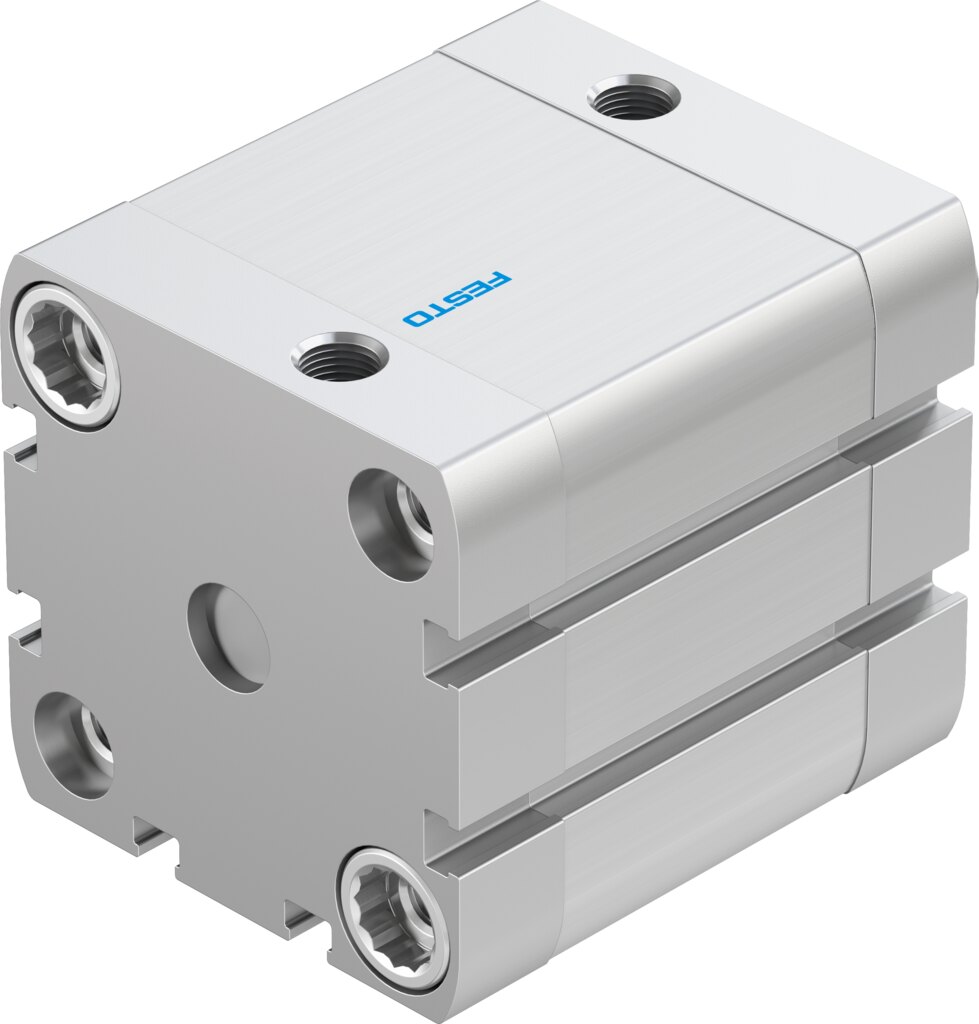

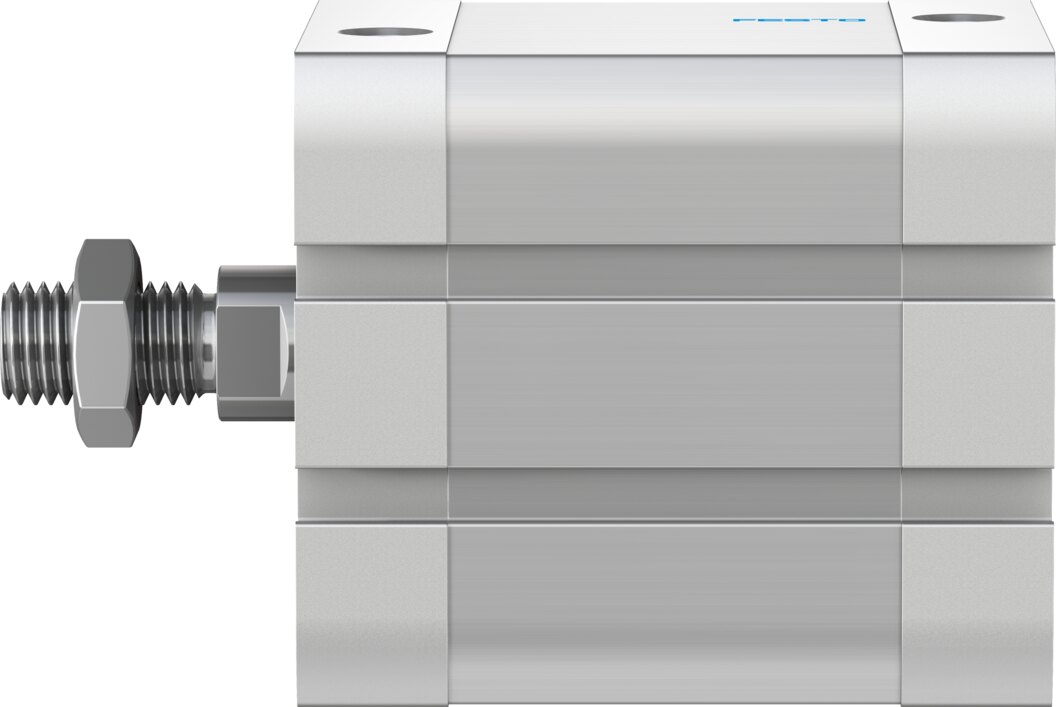

Double-acting compact cylinder Ø 50 mm stroke 75 mm ADN-50-75-A-P-A - Festo 593617

The Festo compact cylinder ADN-50-75-A-P-A moves its load over a 75 mm stroke, the piston measures Ø 50 mm. According to type code ADN-50-75-A-P-A, the cylinder is prepared for end-position sensing with proximity switches. Compressed air drives the piston both ways, so advance and return over 75 mm are powered.

Benefits

• Piston Ø 50 mm, stroke 75 mm
• Elastic end-position cushioning P at both ends
• Piston rod with male thread
• End positions can be sensed with proximity switches
• Double-acting: force in both directions
• Weight 0.9 kg

Applications

The ADN-50-75-A-P-A handles pushing, lifting and ejecting movements over 75 mm in assembly systems, packaging machines and feeding equipment.
