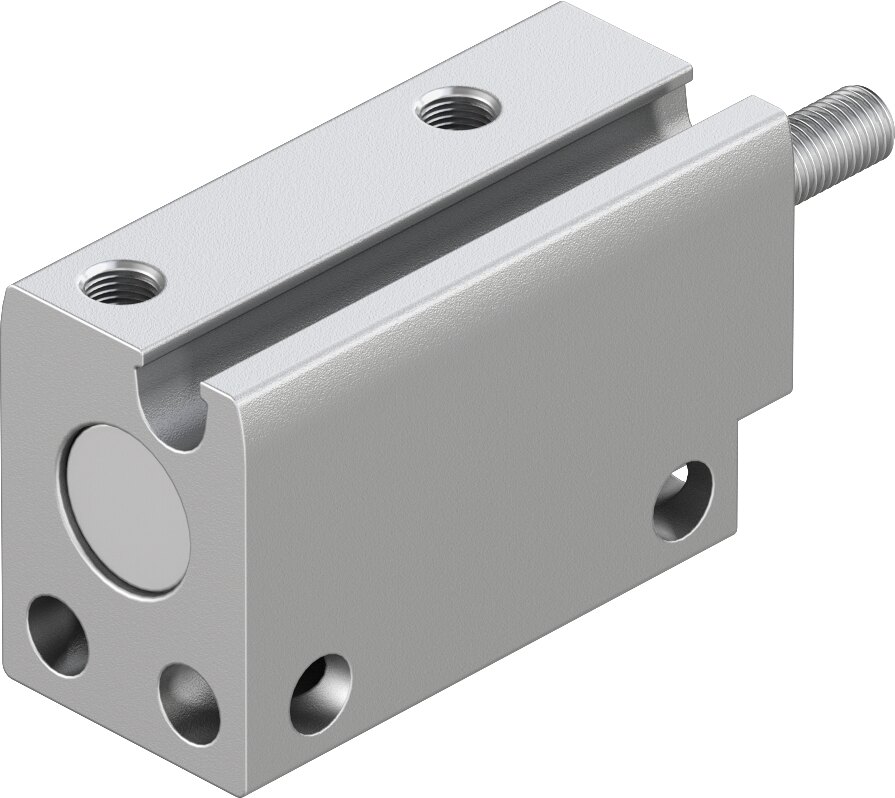

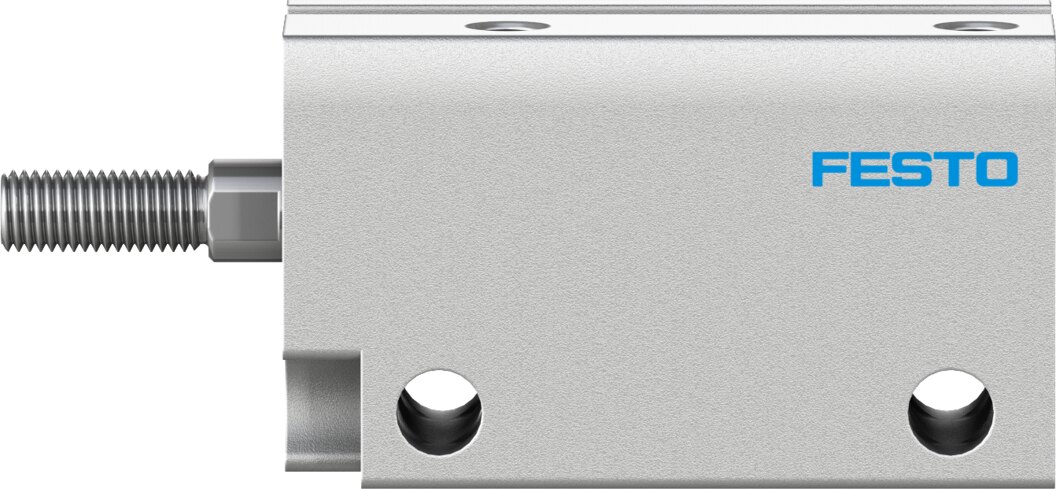

Compact cylinder double-acting Ø 6 mm stroke 10 mm ADN-S-6-10-A-A-F1A - Festo 8142516

The Festo ADN-S-6-10-A-A-F1A is a double-acting compact cylinder with a 6 mm piston and 10 mm stroke. At 6 bar it reaches 17 N advance and 9.4 N return force.

Key benefits

• Easy sizing: 17 N forward and 9.4 N back at 6 bar according to Festo
• Compact and light: 6 mm piston, port M3, product weight 13.6 g
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Sensor-ready: end positions detectable via proximity switch, air port M3
• Flexible use: operating pressure 2 to 8 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

With a 6 mm piston, the ADN-S-6-10-A-A-F1A suits small-parts handling, electronics assembly and light stoppers. The short 10 mm stroke keeps cycle times short and air consumption low. For mounting, the ADN-S-6-10-A-A-F1A uses through-holes in the housing, air port M3. According to Festo the product weight is 13.6 g.
