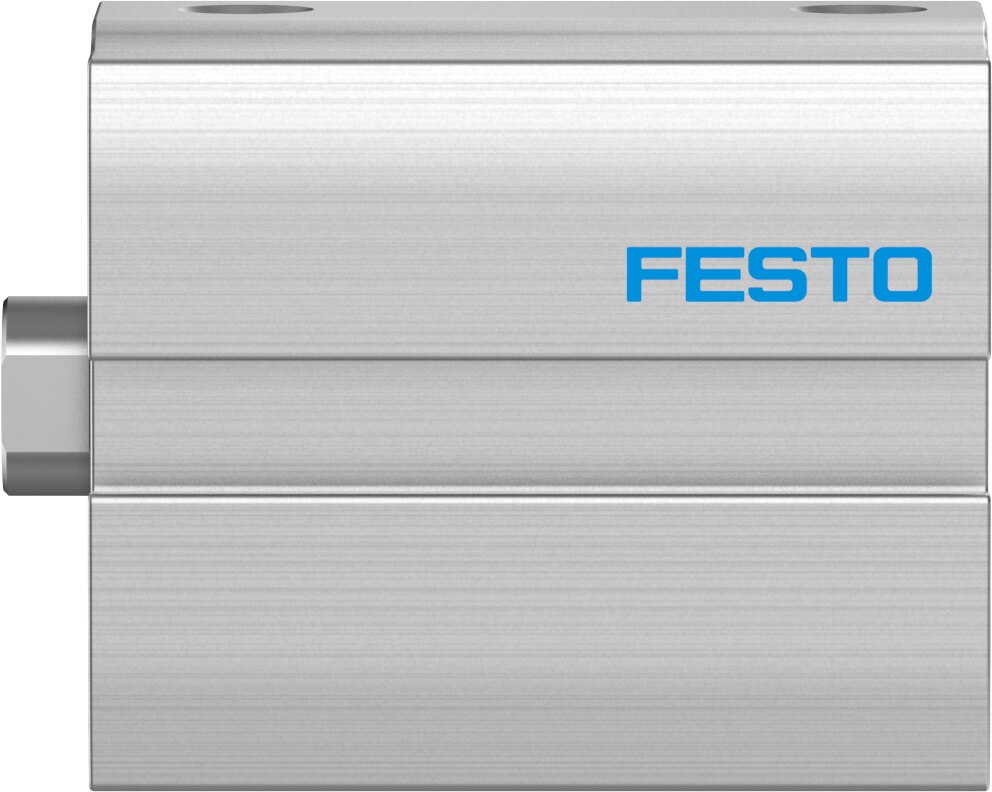

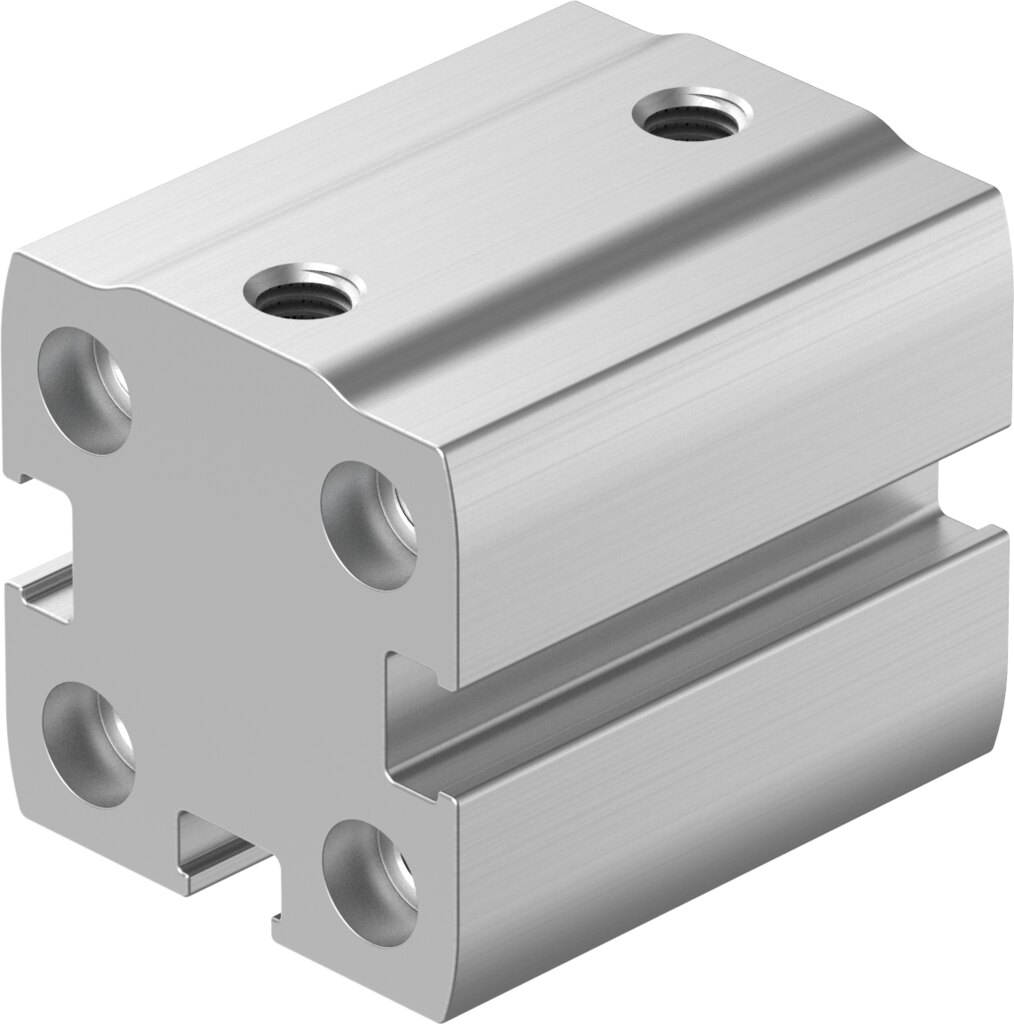

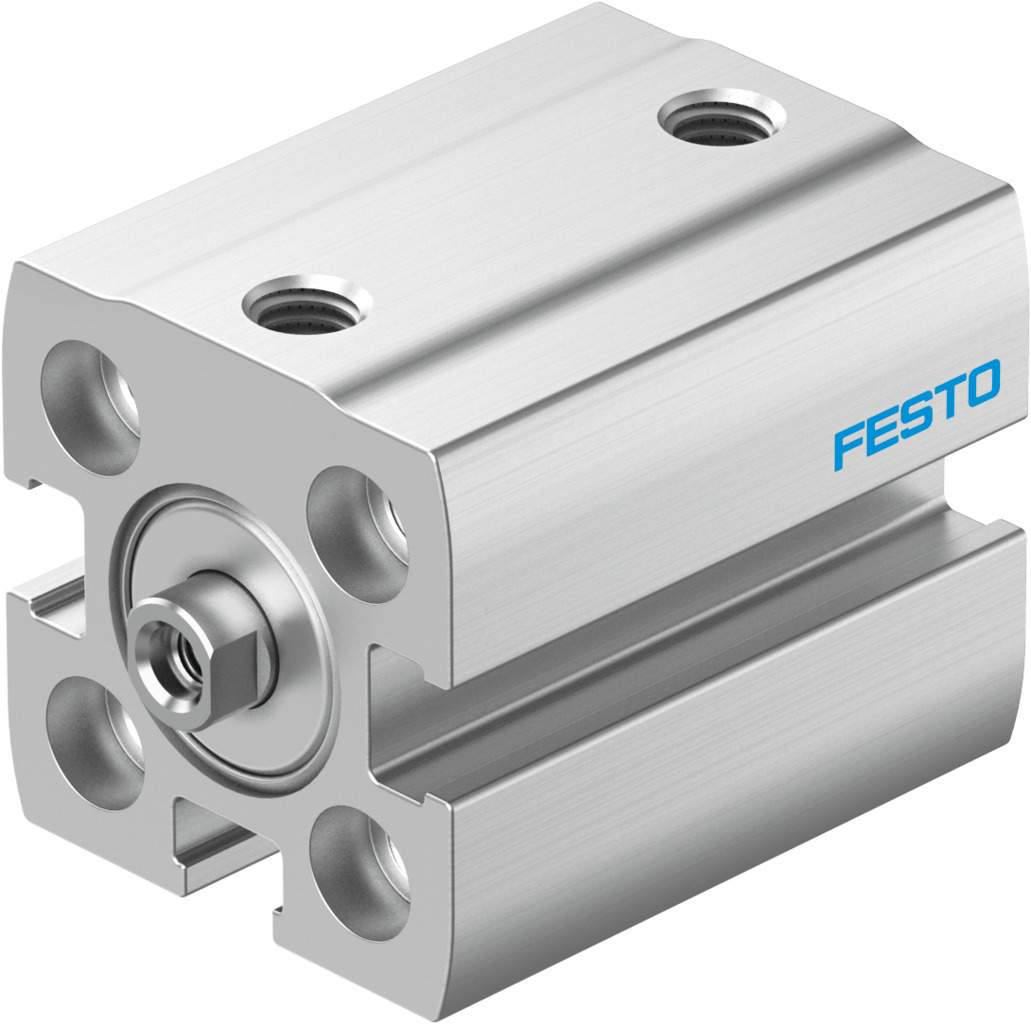

Compact cylinder double-acting Ø 16 mm stroke 5 mm ADN-S-16-5-I-P-A - Festo 8076392

The Festo ADN-S-16-5-I-P-A is a double-acting compact cylinder with a 16 mm piston and 5 mm stroke. At 6 bar it reaches 121 N advance and 90 N return force.

Benefits

• Easy sizing: 121 N forward and 90 N back at 6 bar according to Festo
• Quiet stop: elastic cushioning at both ends absorbs 0.15 J in the end positions
• Position sensing: prepared for proximity switches, port M5
• Flexible use: operating pressure 1 to 10 bar, any mounting position
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

With a 16 mm piston, the ADN-S-16-5-I-P-A suits small-parts handling, electronics assembly and light stoppers. The short 5 mm stroke keeps cycle times short and air consumption low. Mount the ADN-S-16-5-I-P-A via through-holes, female threads or Festo accessories. For sizing, Festo states 42 g basic weight and 11 g moving mass at 0 mm stroke, plus 18 g and 4 g respectively per 10 mm stroke.
