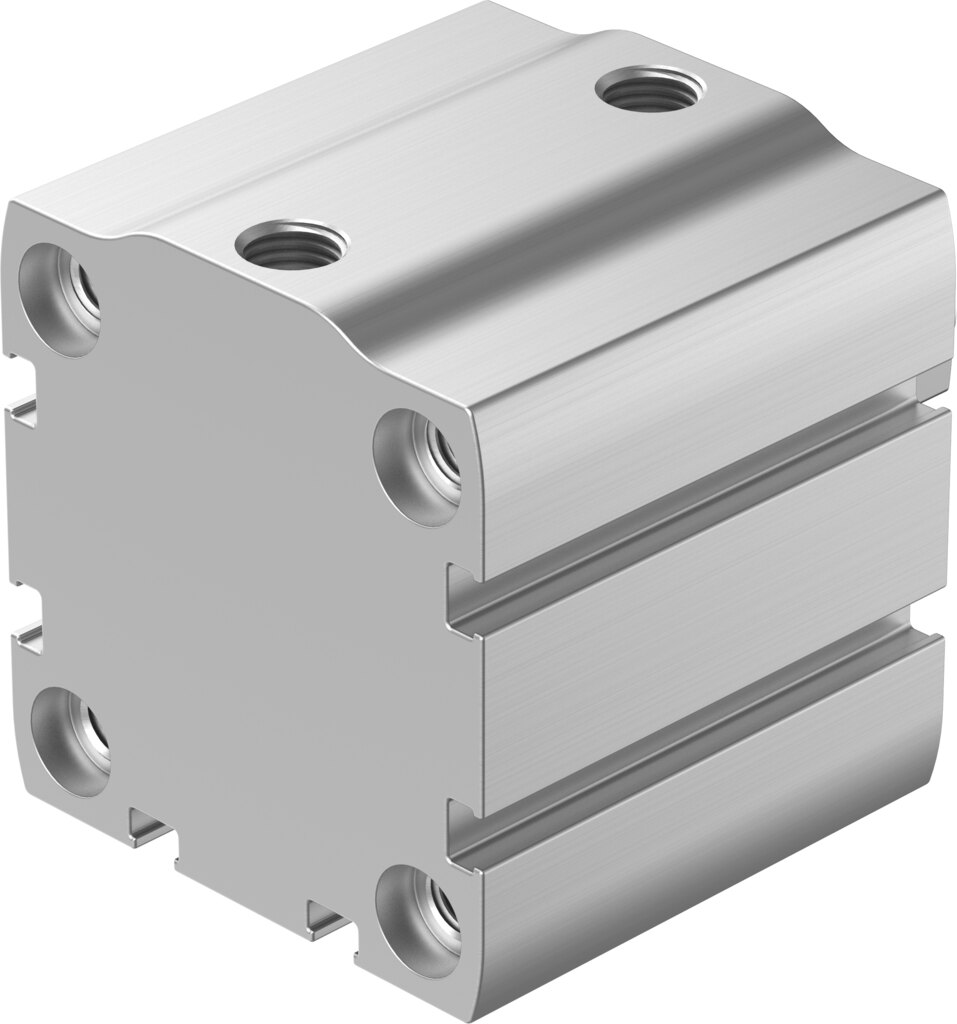

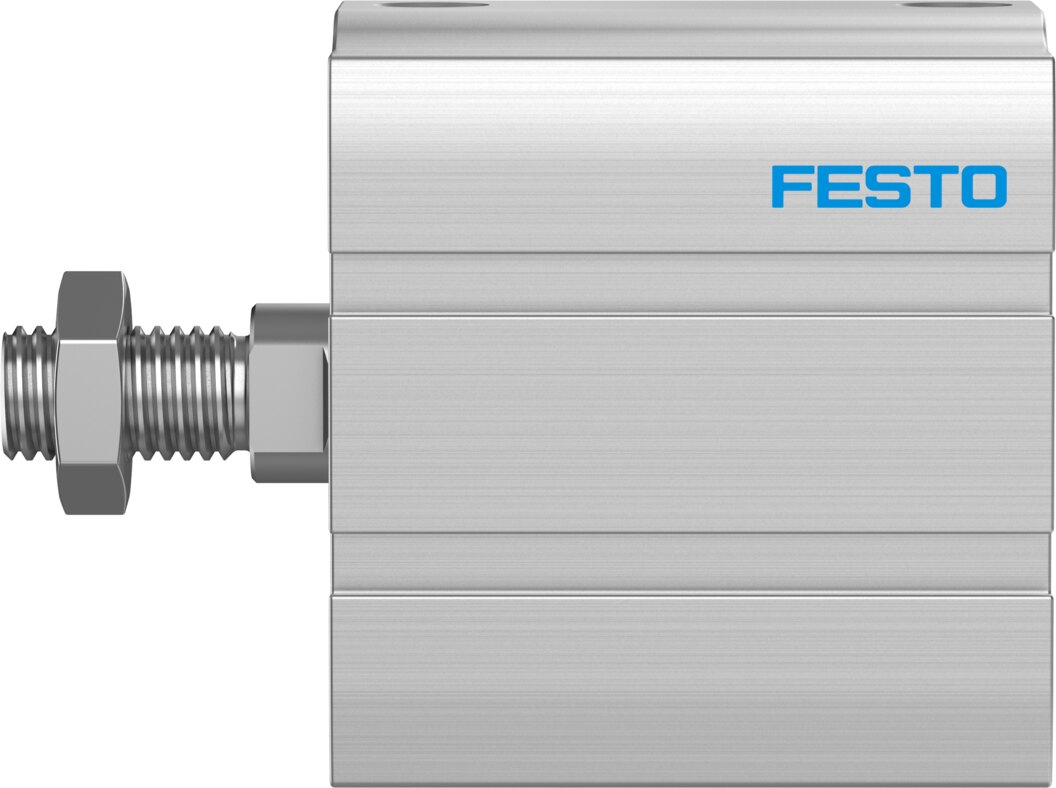

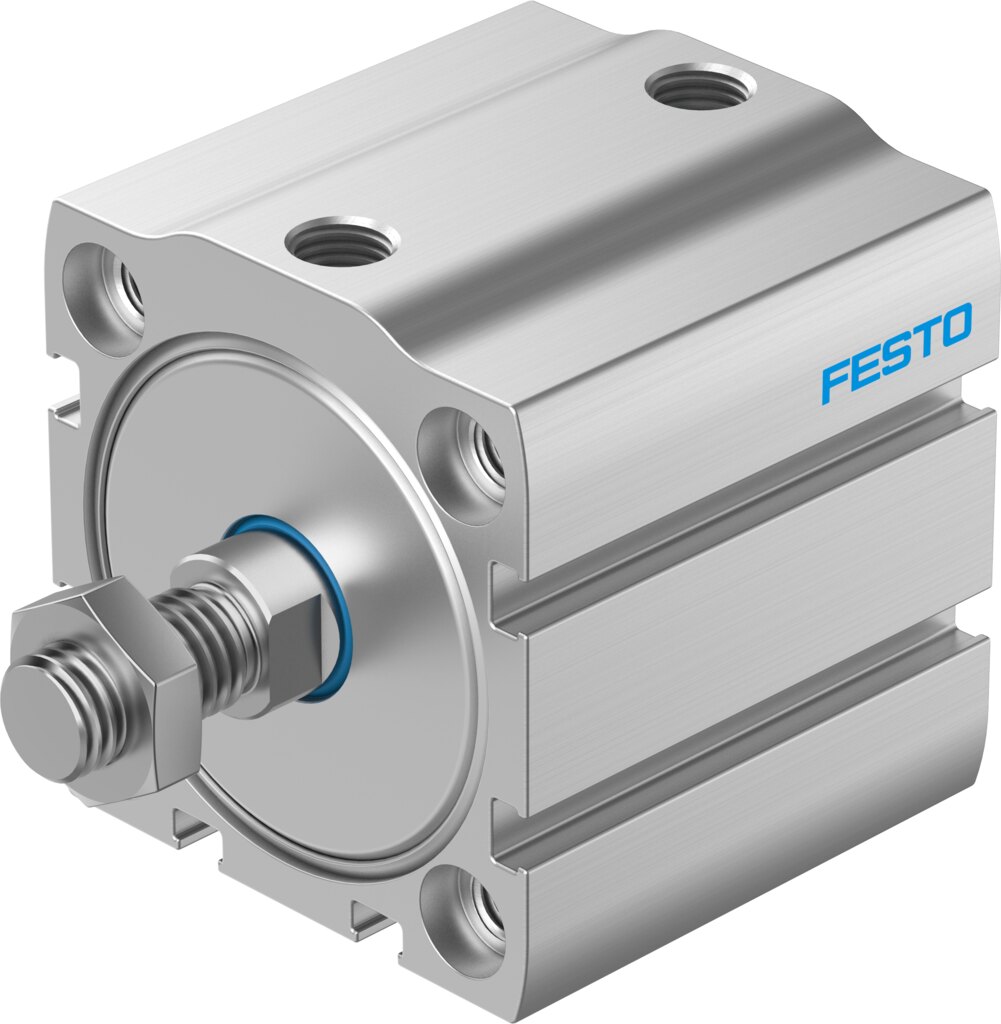

Compact cylinder double-acting Ø 50 mm stroke 45 mm ADN-S-50-45-A-P-A-F1A - Festo 8142915

50 mm piston, 45 mm stroke, 1178 N advance and 1057 N return force at 6 bar: the double-acting compact cylinder ADN-S-50-45-A-P-A-F1A fits fixtures where a standard cylinder is too long.

Key benefits

• Force in both directions: theoretical 1178 N advance and 1057 N return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 1 J in the end positions
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Sensor-ready: end positions detectable via proximity switch, air port G1/8
• Wide pressure range: 0.4 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 0: piston rod in high-alloy stainless steel

Applications

With a 50 mm piston the ADN-S-50-45-A-P-A-F1A covers force-intensive tasks such as pressing, press-fitting and clamping heavy workpieces. For mounting, the ADN-S-50-45-A-P-A-F1A uses through-holes or female threads in the housing, air port G1/8. For sizing, Festo states 324 g basic weight and 104 g moving mass at 0 mm stroke, plus 63 g and 16 g respectively per 10 mm stroke.
