Double-acting compact cylinder Ø 50 mm stroke 15 mm ADN-S-50-15-I-P-A - Festo 5138190

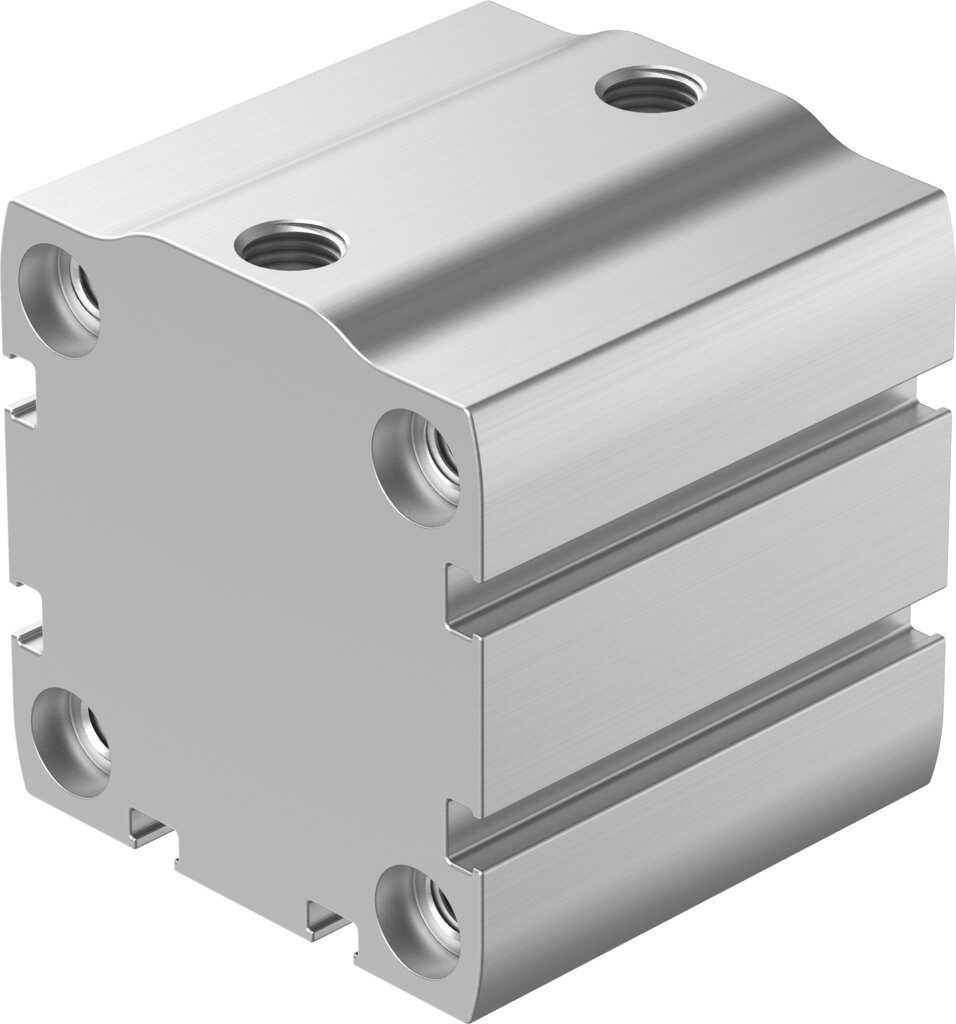

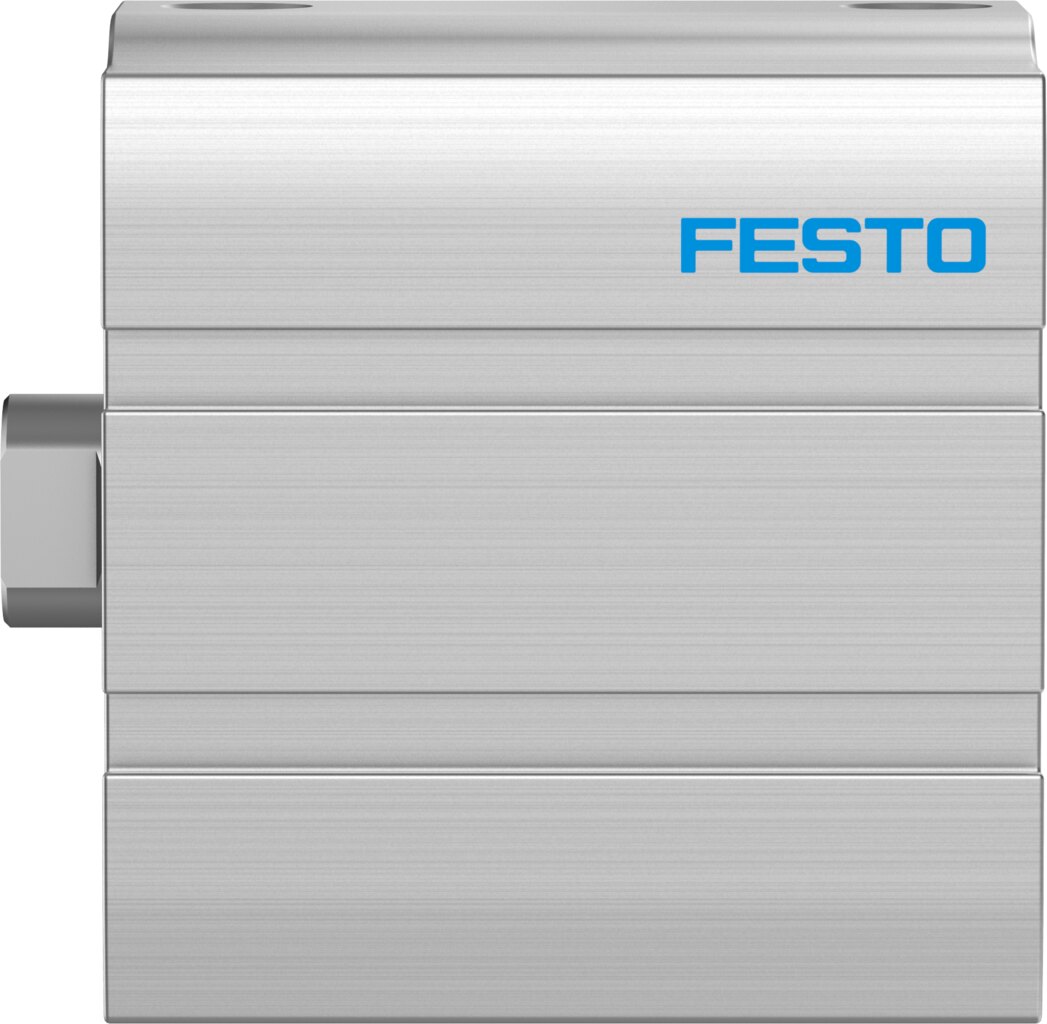

The compact cylinder ADN-S-50-15-I-P-A provides 1178 N advance and 1057 N retracting force at 6 bar while its Ø 50 mm piston and 15 mm stroke take up little space. The load is coupled via the piston rod with female thread, compressed air is supplied via G1/8. Operating pressure 0.4 to 10 bar, ambient temperature 0 to 80 °C.

Key benefits

• 1178 N advance and 1057 N return force at 6 bar
• Elastic end-position cushioning P at both ends, up to 1 J impact energy
• Piston rod with female thread made of high-alloy stainless steel
• Position detection via proximity switches
• Operating pressure 0.4 to 10 bar
• LABS (PWIS) conformity to VDMA24364-B2-L

Typical applications

Typical tasks are clamping, locking and separating, for example in assembly lines and test stations where 15 mm of stroke is sufficient. The medium is compressed air to ISO 8573-1:2010 [7:4:4], and the 15 mm stroke can be used in any mounting position.
