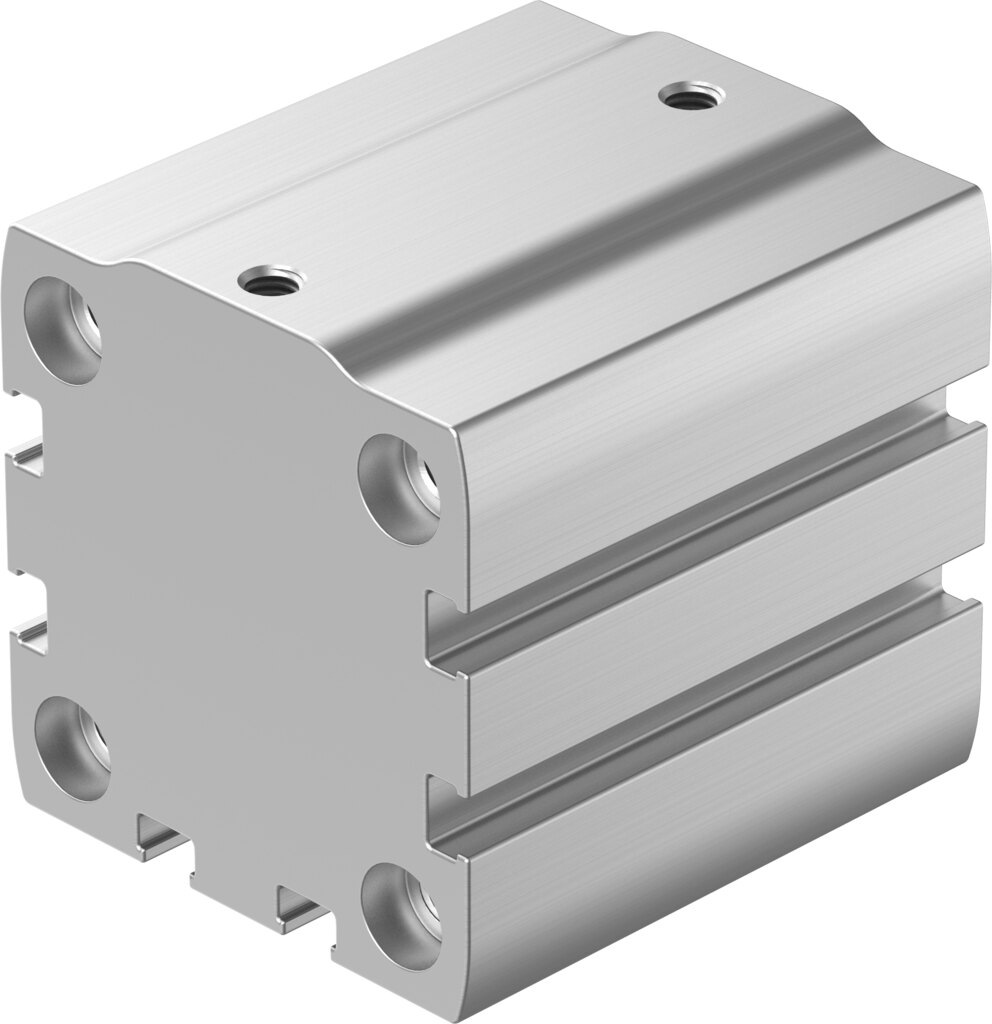

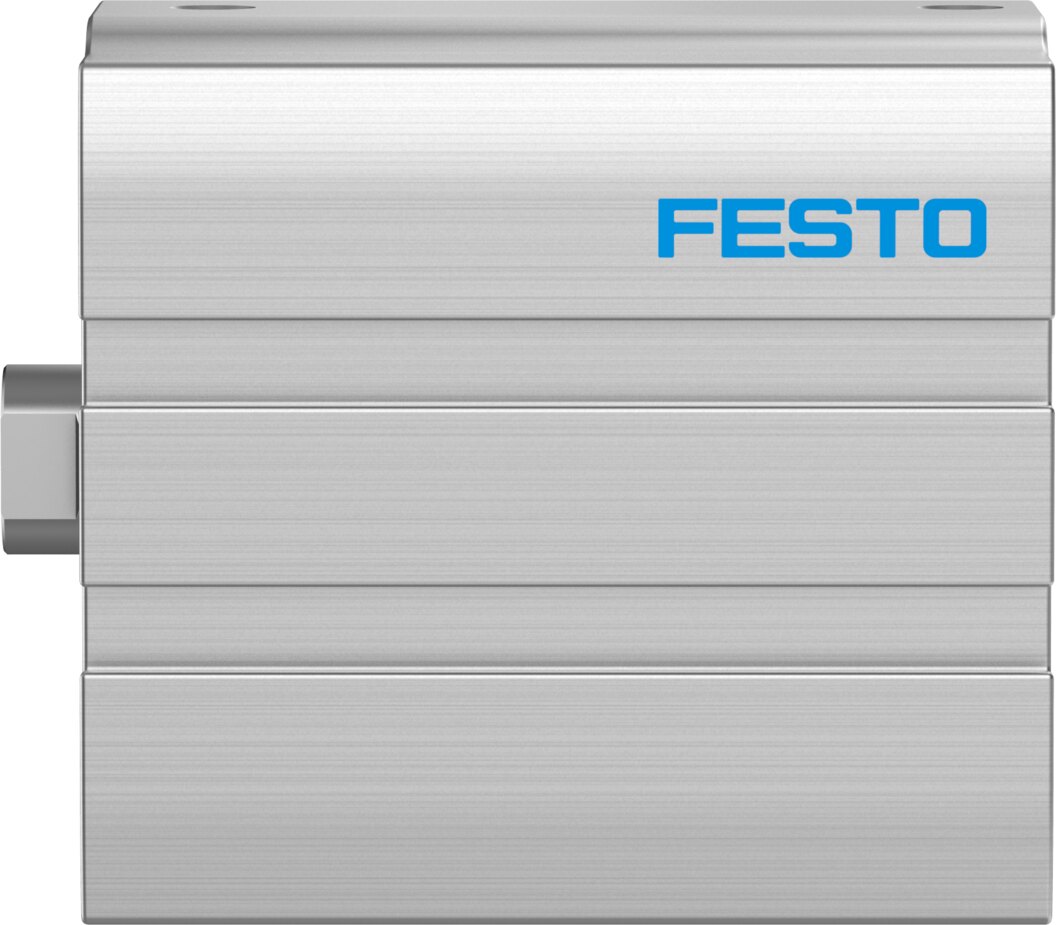

Compact cylinder double-acting Ø 40 mm stroke 40 mm ADN-S-40-40-I-P-A-F1A - Festo 8142883

40 mm piston, 40 mm stroke, 754 N advance and 686 N return force at 6 bar: the double-acting compact cylinder ADN-S-40-40-I-P-A-F1A fits fixtures where a standard cylinder is too long.

Key benefits

• Double-acting: 754 N on advance, 686 N on return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.7 J in the end positions
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Position sensing: prepared for proximity switches, port M5
• Wide pressure range: 0.6 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

Typical tasks for the ADN-S-40-40-I-P-A-F1A are clamping, aligning, stopping and pushing out in assembly and test stations. For mounting, the ADN-S-40-40-I-P-A-F1A uses through-holes or female threads in the housing, air port M5. For sizing, Festo states 304 g basic weight and 62 g moving mass at 0 mm stroke, plus 45 g and 9 g respectively per 10 mm stroke.
