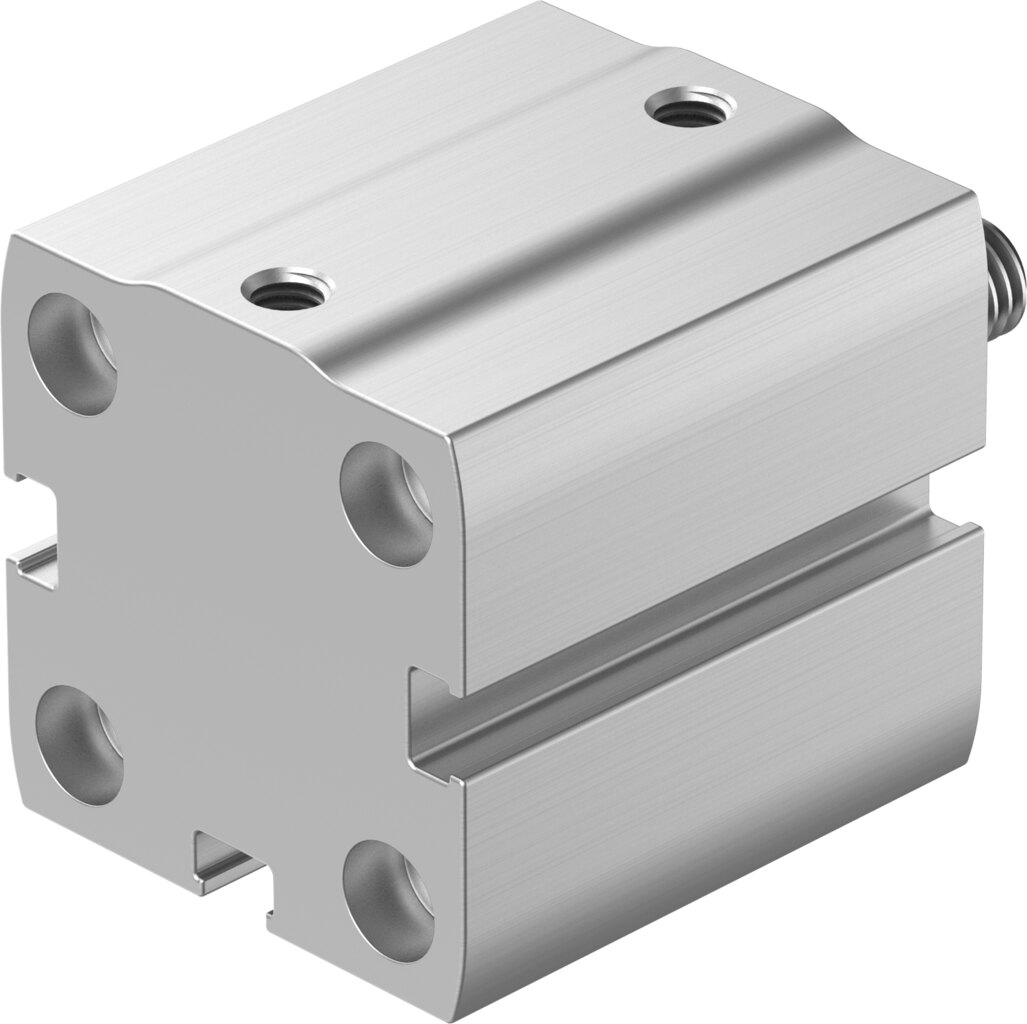

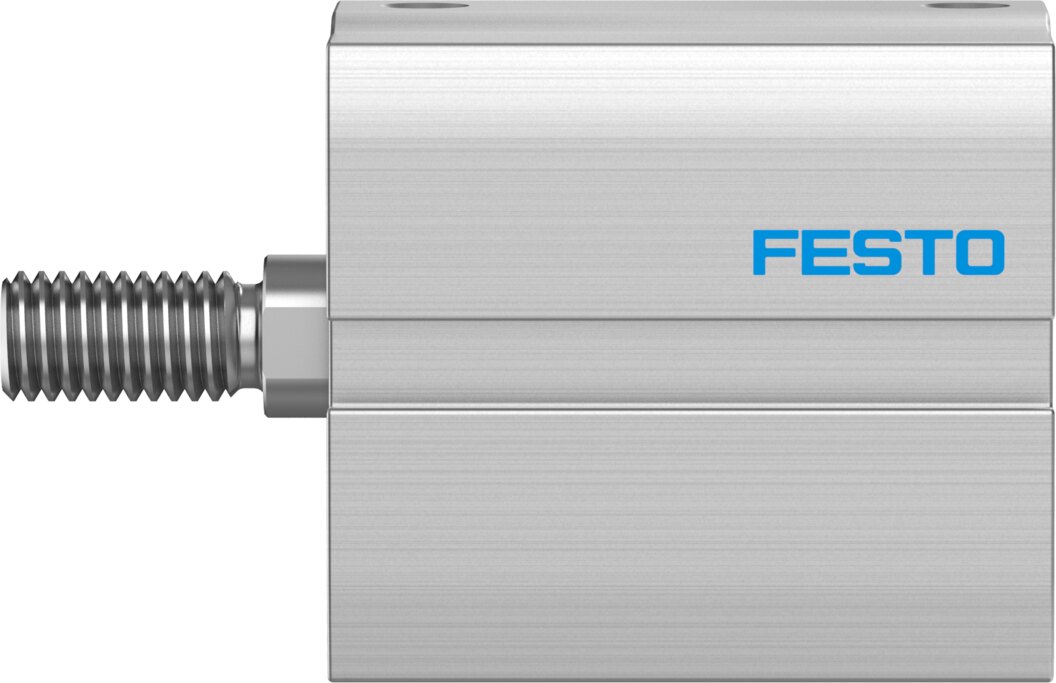

Compact cylinder double-acting Ø 25 mm stroke 20 mm ADN-S-25-20-A-P-A-F1A - Festo 8142829

Where space in the stroke direction is short, the ADN-S-25-20-A-P-A-F1A fits in: double-acting compact cylinder, 25 mm piston, 20 mm stroke, 295 N advance and 247 N return force at 6 bar.

Benefits at a glance

• Easy sizing: 295 N forward and 247 N back at 6 bar according to Festo
• Quiet stop: elastic cushioning at both ends absorbs 0.3 J in the end positions
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Position sensing: prepared for proximity switches, port M5
• Flexible use: operating pressure 0.6 to 10 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

On assembly lines the ADN-S-25-20-A-P-A-F1A with a 25 mm diameter handles clamping, stopping and positioning tasks. Mounting via through-holes or female threads in the housing, attachments go on the piston rod with male thread of the ADN-S-25-20-A-P-A-F1A. For sizing, Festo states 88 g basic weight and 25 g moving mass at 0 mm stroke, plus 30 g and 6 g respectively per 10 mm stroke.
