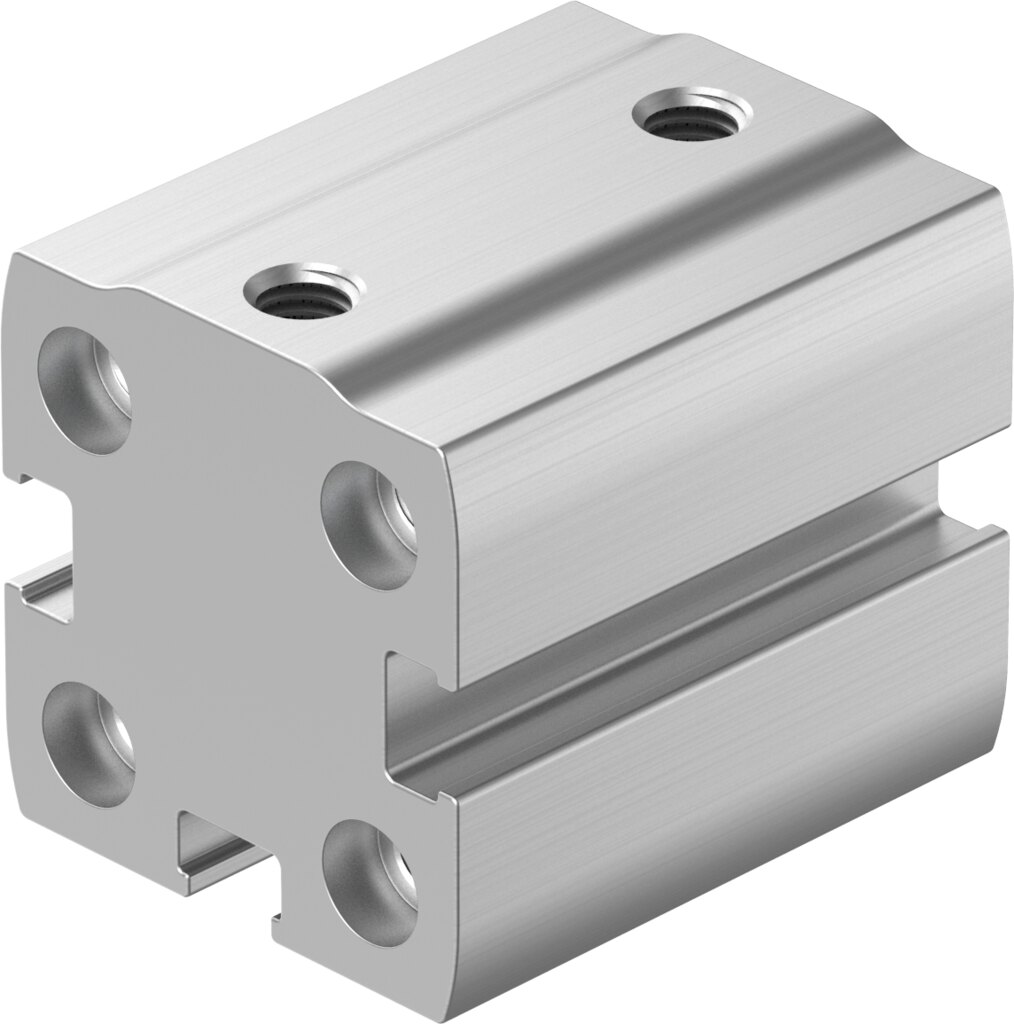

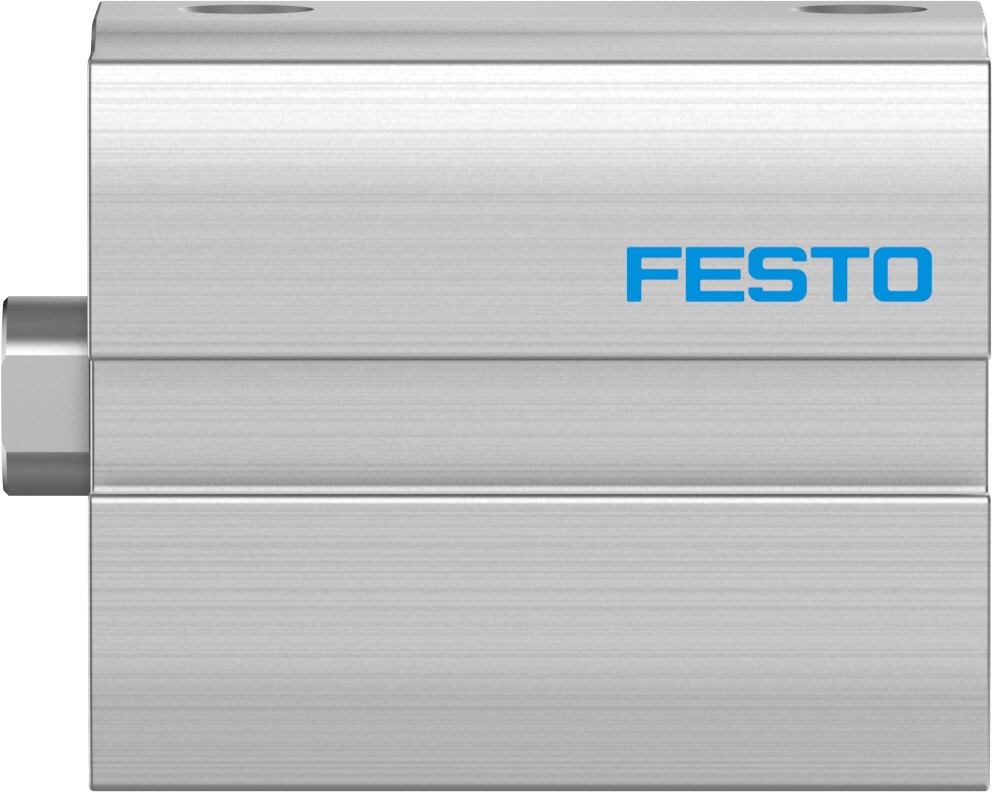

Compact cylinder double-acting Ø 16 mm stroke 30 mm ADN-S-16-30-I-P-A-F1A - Festo 8142733

The Festo ADN-S-16-30-I-P-A-F1A is a double-acting compact cylinder with a 16 mm piston and 30 mm stroke. At 6 bar it reaches 121 N advance and 90 N return force.

Key benefits

• Force in both directions: theoretical 121 N advance and 90 N return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.15 J in the end positions
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Wide pressure range: 1 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

With a 16 mm piston, the ADN-S-16-30-I-P-A-F1A suits small-parts handling, electronics assembly and light stoppers. Mounting via through-holes or female threads in the housing, attachments go on the piston rod with female thread of the ADN-S-16-30-I-P-A-F1A. For sizing, Festo states 42 g basic weight and 11 g moving mass at 0 mm stroke, plus 18 g and 4 g respectively per 10 mm stroke.
