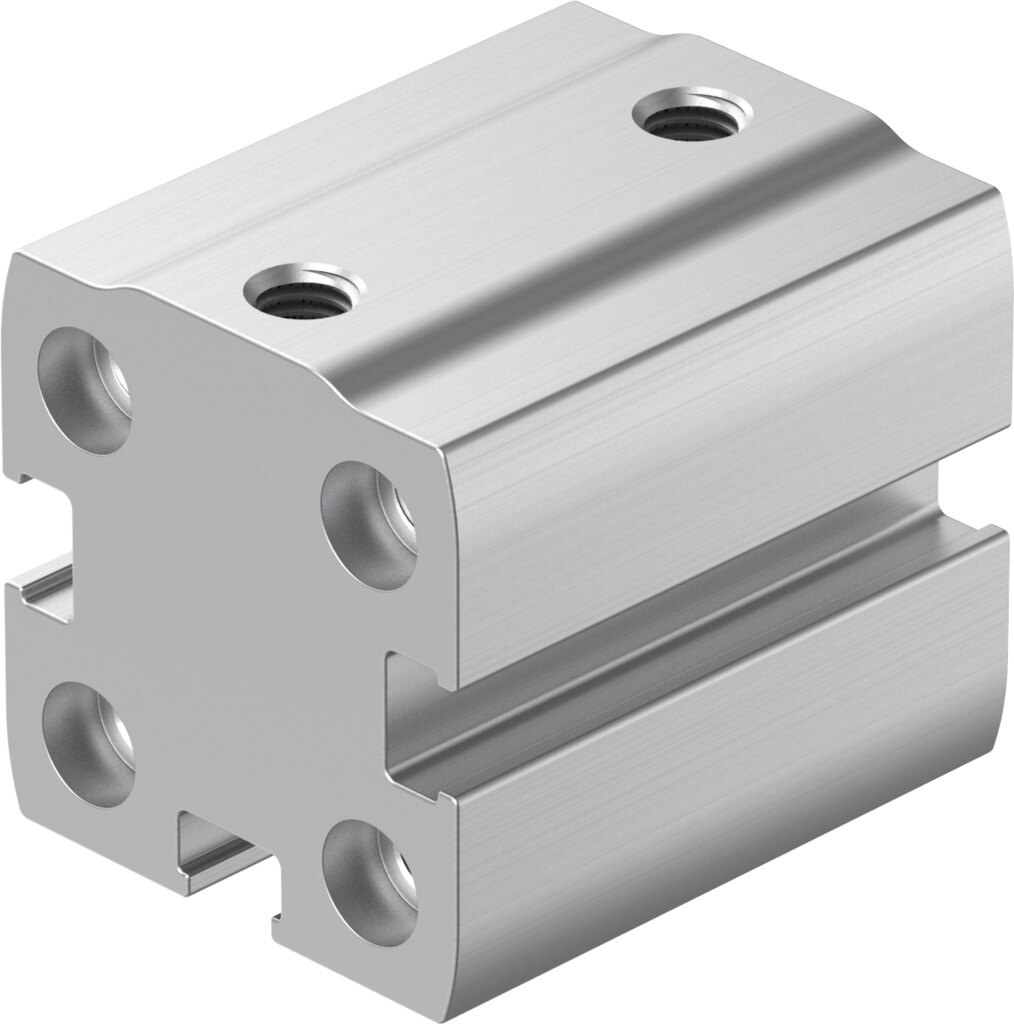

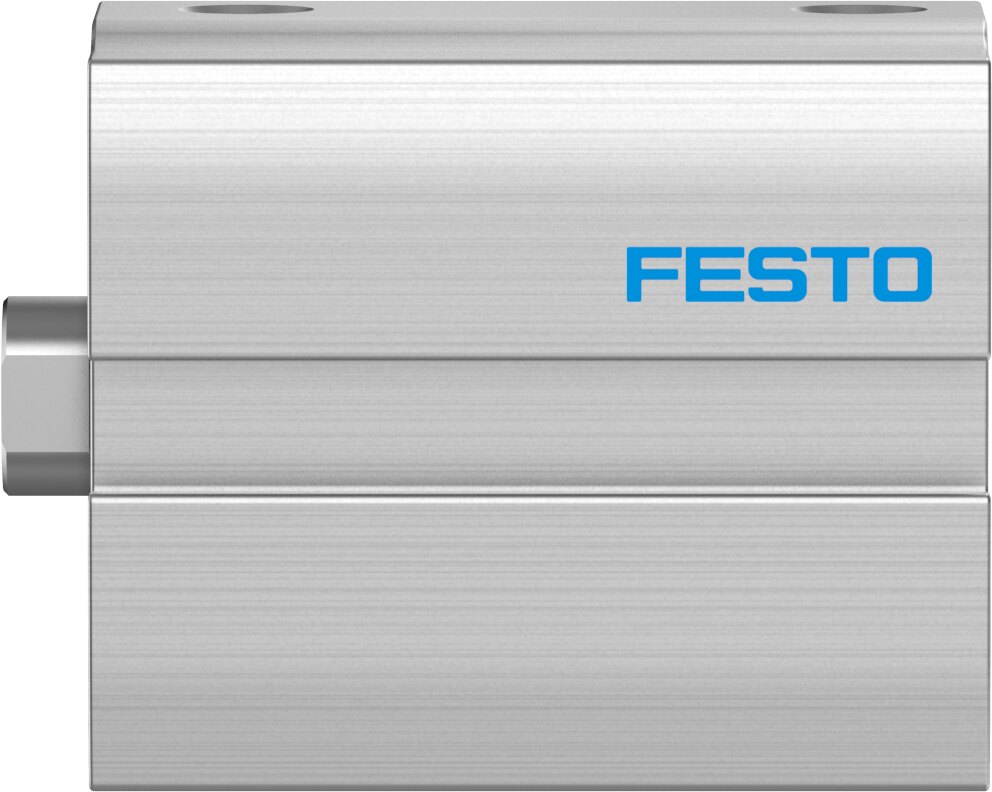

Compact cylinder double-acting Ø 16 mm stroke 25 mm ADN-S-16-25-I-P-A - Festo 8076398

Where space in the stroke direction is short, the ADN-S-16-25-I-P-A fits in: double-acting compact cylinder, 16 mm piston, 25 mm stroke, 121 N advance and 90 N return force at 6 bar.

Key benefits

• Easy sizing: 121 N forward and 90 N back at 6 bar according to Festo
• Quiet stop: elastic cushioning at both ends absorbs 0.15 J in the end positions
• Position sensing: prepared for proximity switches, port M5
• Wide pressure range: 1 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

With a 16 mm piston, the ADN-S-16-25-I-P-A suits small-parts handling, electronics assembly and light stoppers. For mounting, the ADN-S-16-25-I-P-A uses through-holes, female threads or Festo accessories, air port M5. For sizing, Festo states 42 g basic weight and 11 g moving mass at 0 mm stroke, plus 18 g and 4 g respectively per 10 mm stroke.
