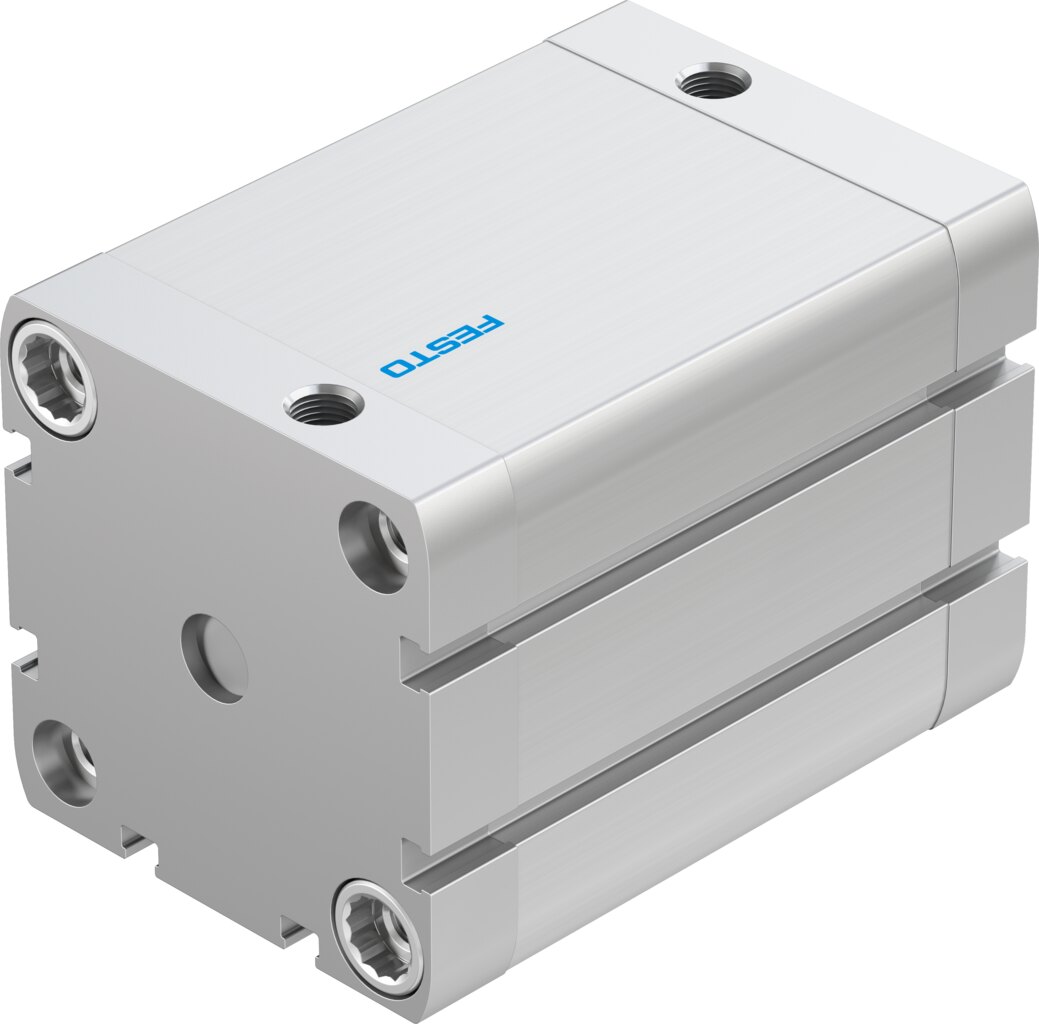

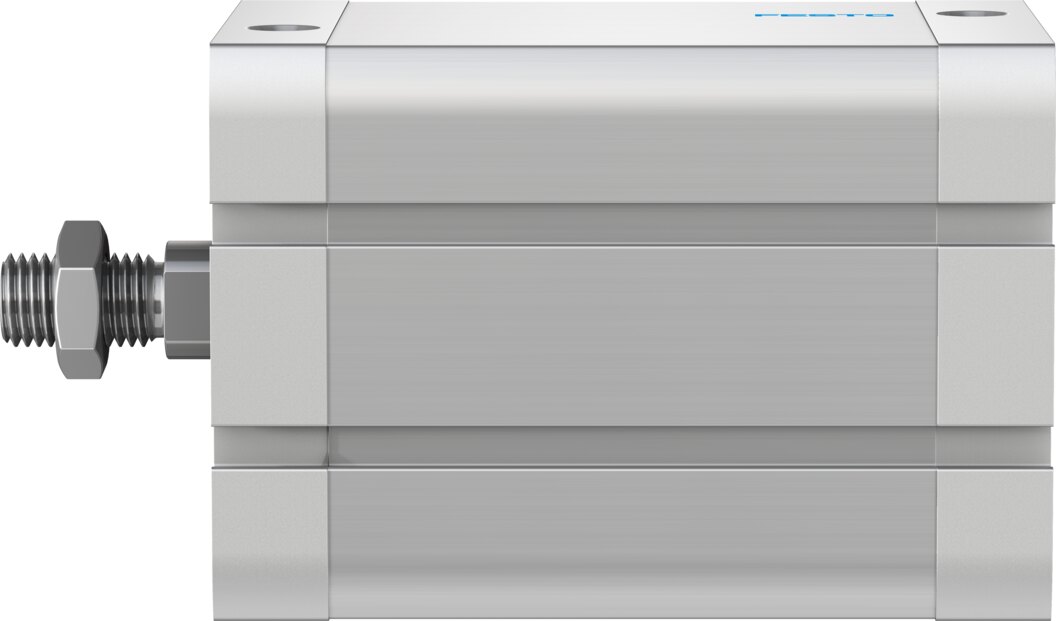

Compact cylinder double-acting Ø 63 mm stroke 70 mm PPS cushioning ADN-63-70-A-PPS-A - Festo 8178287

Where space in the stroke direction is short, the ADN-63-70-A-PPS-A fits in: double-acting compact cylinder, 63 mm piston, 70 mm stroke, 1870 N advance and 1750 N return force at 6 bar.

Benefits at a glance

• Double-acting: 1870 N on advance, 1750 N on return at 6 bar
• Self-adjusting PPS cushioning: adapts to load and speed, impact energy 4.8 J in the end positions
• Position sensing: prepared for proximity switches, port G1/8
• Flexible use: operating pressure 1 to 10 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy steel, thread M12x1.25
• Standard dimensions: Festo states ISO 21287, replacement without redesign

Applications

Pressing, joining and clamping larger workpieces are typical uses of the ADN-63-70-A-PPS-A with a 63 mm diameter. Mount the ADN-63-70-A-PPS-A via through-holes, female threads or Festo accessories. According to Festo the product weight is 1190 g.
