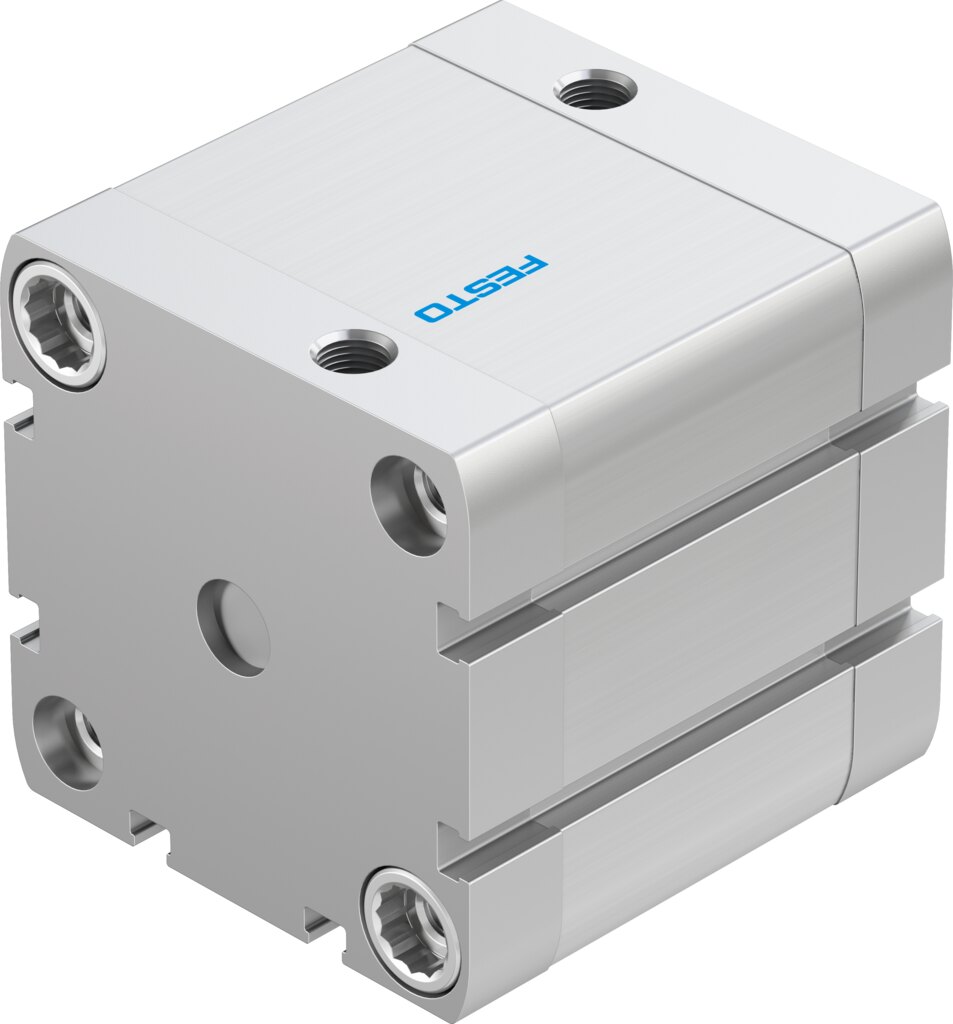

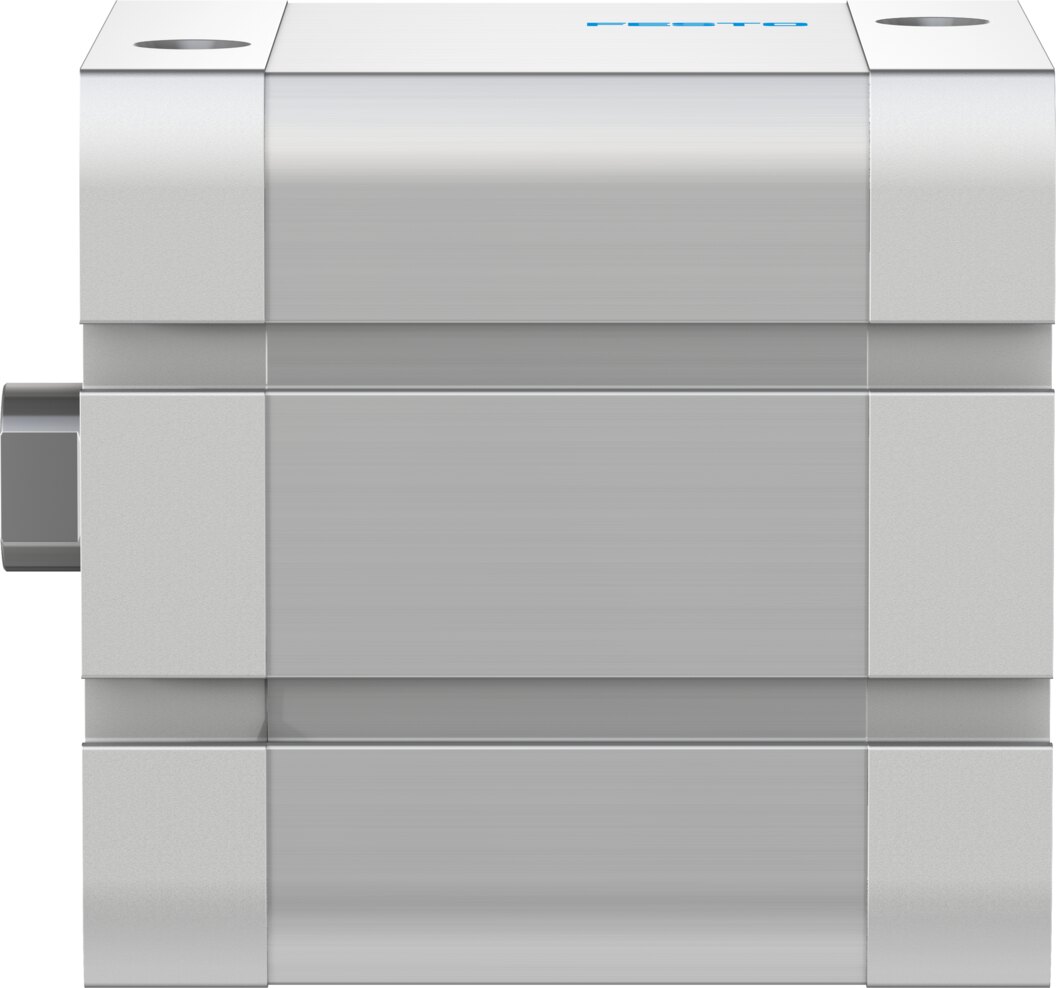

Compact cylinder double-acting Ø 63 mm stroke 35 mm PPS cushioning ADN-63-35-I-PPS-A - Festo 609539

63 mm piston, 35 mm stroke, 1870 N advance and 1750 N return force at 6 bar: the double-acting compact cylinder ADN-63-35-I-PPS-A fits fixtures where a standard cylinder is too long.

Key benefits

• Easy sizing: 1870 N forward and 1750 N back at 6 bar according to Festo
• Self-adjusting PPS cushioning: adapts to load and speed, impact energy 4.8 J in the end positions
• Sensor-ready: end positions detectable via proximity switch, air port G1/8
• Flexible use: operating pressure 1 to 10 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy steel, thread M10
• Standard dimensions: Festo states ISO 21287, replacement without redesign

Applications

With a 63 mm piston the ADN-63-35-I-PPS-A covers force-intensive tasks such as pressing, press-fitting and clamping heavy workpieces. Mounting via through-holes, female threads or Festo accessories, attachments go on the piston rod with female thread M10 of the ADN-63-35-I-PPS-A. According to Festo the product weight is 939 g.
