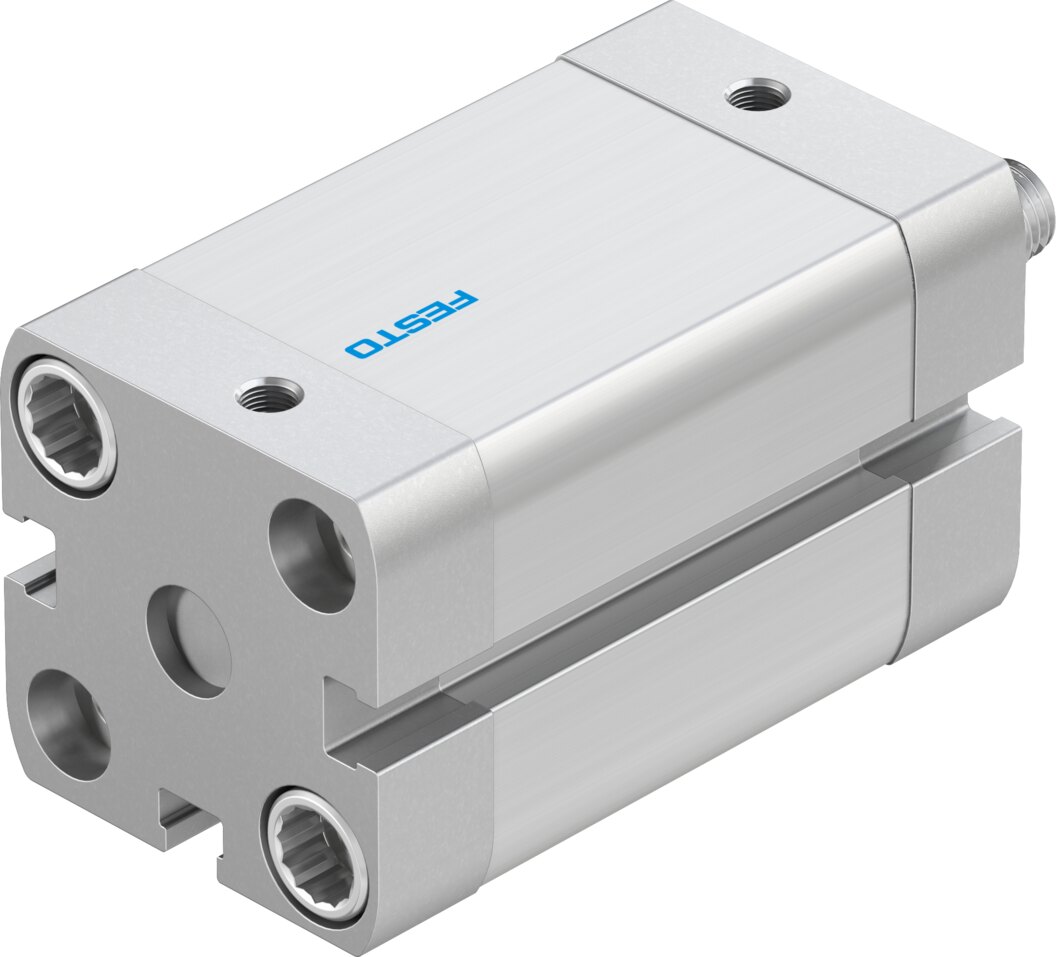

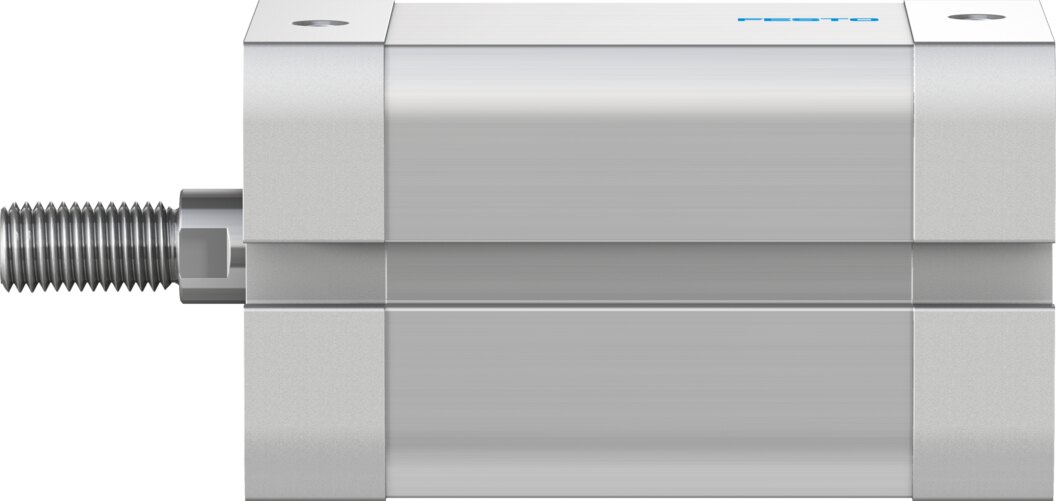

Double-acting compact cylinder Ø 25 mm stroke 6 mm ADN-25-6-A-P-A - Festo 589906

The Festo compact cylinder ADN-25-6-A-P-A moves its load over a 6 mm stroke, the piston measures Ø 25 mm. According to type code ADN-25-6-A-P-A, the cylinder is prepared for end-position sensing with proximity switches. Compressed air drives the piston both ways, so advance and return over 6 mm are powered.

Benefits

• Piston Ø 25 mm, stroke 6 mm
• Elastic end-position cushioning P at both ends
• Piston rod with male thread
• Position detection via proximity switches
• Double-acting: force in both directions
• Weight 0.175 kg

Applications

With a 6 mm stroke, the ADN-25-6-A-P-A suits clamping, holding and stopping tasks in fixtures that need only a few millimetres of travel.
