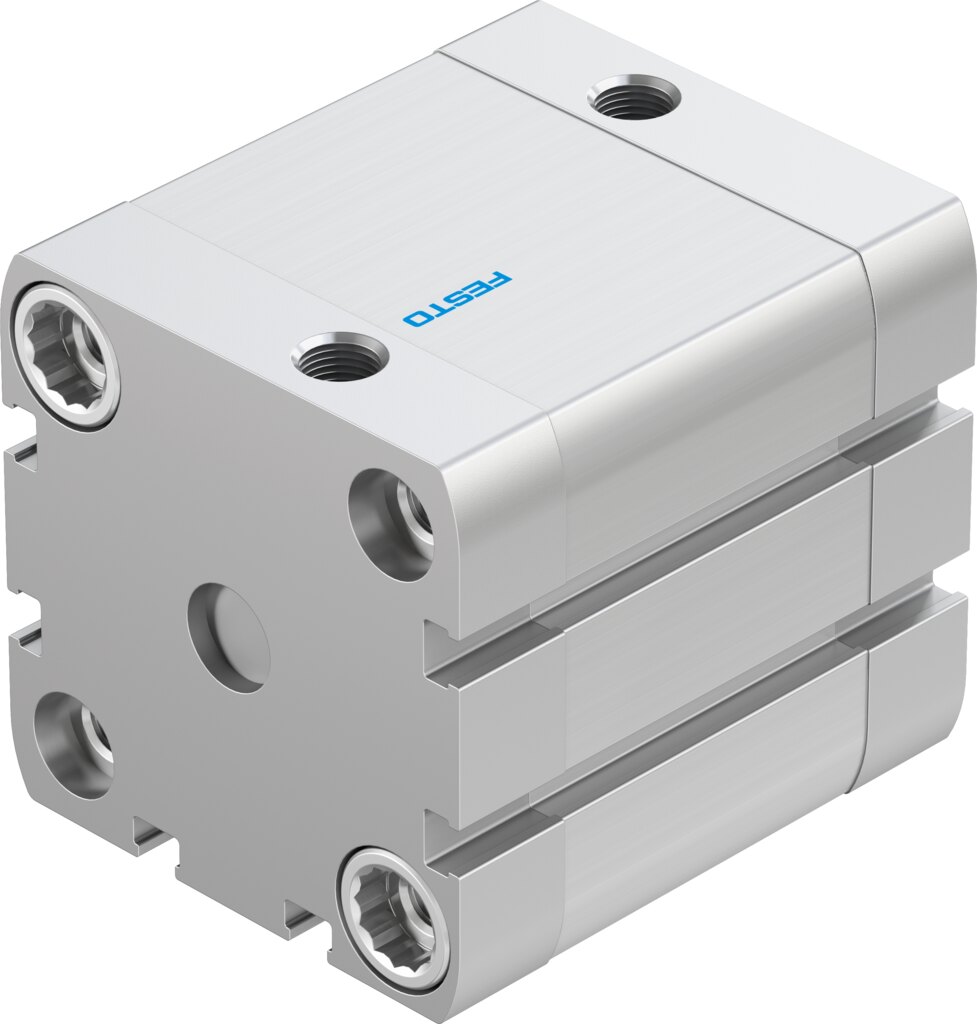

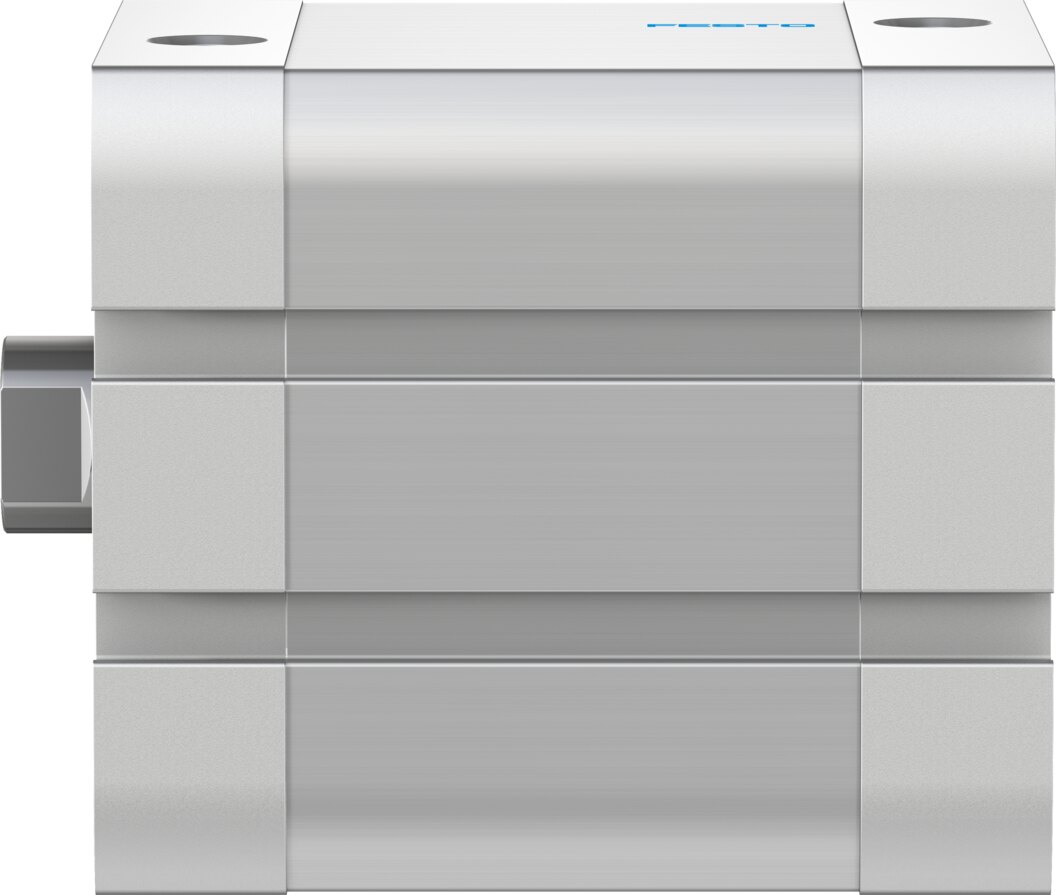

Compact cylinder double-acting Ø 50 mm stroke 35 mm ADN-50-35-I-P-A - Festo 8178619

Where space in the stroke direction is short, the ADN-50-35-I-P-A fits in: double-acting compact cylinder, 50 mm piston, 35 mm stroke, 1178 N advance and 1057 N return force at 6 bar.

Key benefits

• Easy sizing: 1178 N forward and 1057 N back at 6 bar according to Festo
• Quiet stop: elastic cushioning at both ends absorbs 1 J in the end positions
• Position sensing: prepared for proximity switches, port G1/8
• Wide pressure range: 0.6 to 10 bar operating pressure, -20 to 80 °C ambient temperature
• Corrosion resistance class CRC 2: piston rod in high-alloy steel, thread M10
• Standard dimensions: Festo states ISO 21287, replacement without redesign

Applications

With a 50 mm piston the ADN-50-35-I-P-A covers force-intensive tasks such as pressing, press-fitting and clamping heavy workpieces. The 50 mm cylinder is fastened via through-holes, female threads or Festo accessories, the piston rod has a female thread M10. According to Festo the product weight is 669 g.
