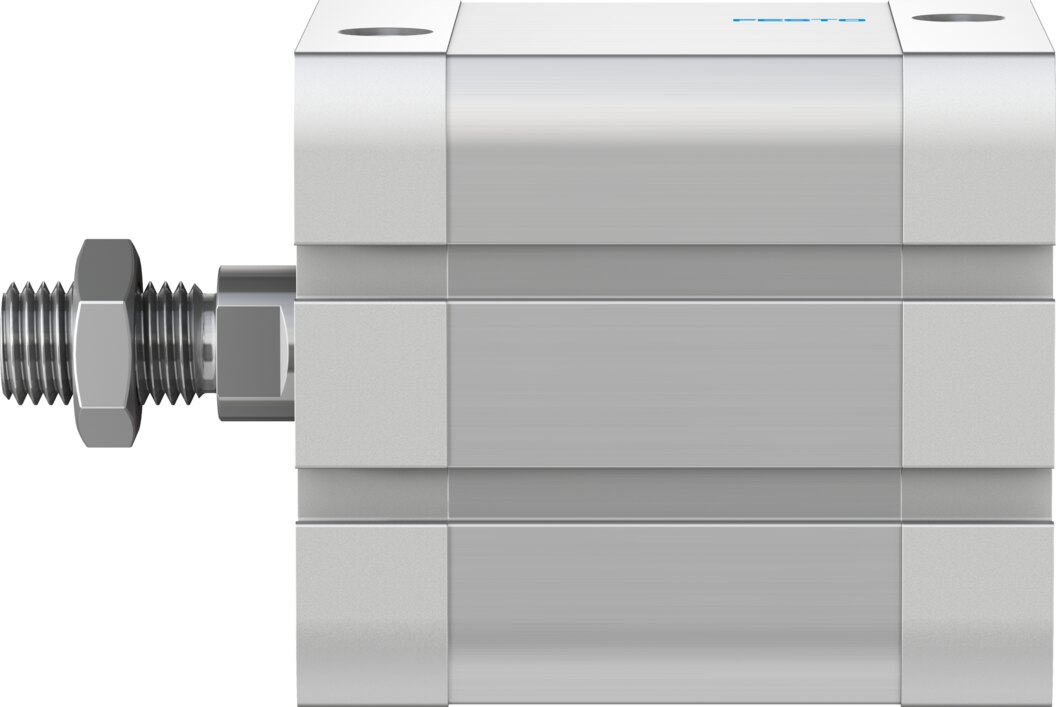

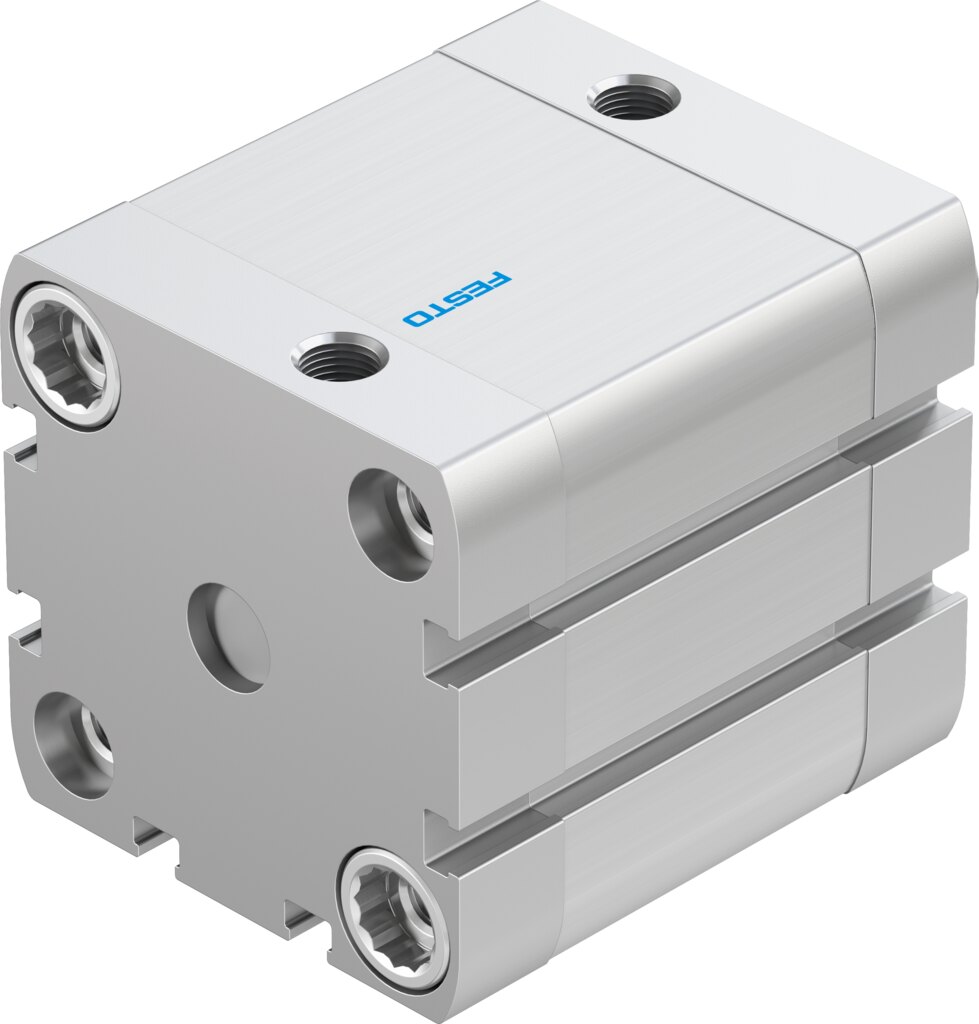

Double-acting compact cylinder Ø 50 mm stroke 125 mm ADN-50-125-I-P-A - Festo 588864
The double-acting Festo compact cylinder ADN-50-125-I-P-A works with a Ø 50 mm piston and a 125 mm stroke and is much shorter than a standard cylinder. Both end positions are cushioned by elastic rings. The load is coupled via the piston rod with female thread. Weight 1.1 kg.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Ø 50 mm piston, 125 mm stroke: the double-acting compact cylinder ADN-50-125-I-P-A from the ADN series is the Festo version with part number 588864. The letter A after the cushioning code in type ADN-50-125-I-P-A stands for position detection via proximity switches. Compressed air drives the piston both ways, so advance and return over 125 mm are powered.
Benefits
- Piston Ø 50 mm, stroke 125 mm
- Elastic end-position cushioning P at both ends
- Piston rod with female thread
- Position detection via proximity switches
- Double-acting: force in both directions
- Weight 1.1 kg
Applications
In handling and fixture construction the cylinder moves parts over 125 mm, for example as an ejector, pusher or lifting unit.
Technical data
| Order type | ADN-50-125-I-P-A |
|---|---|
| Festo part number | 588864 |
| Piston diameter | 50 mm |
| Stroke | 125 mm |
| Mode of operation | double-acting |
| Piston rod end | female thread |
| Cushioning | P: elastic cushioning rings/plates at both ends |
| Position detection | via proximity switch |
| Weight | 1.1 kg |
| Customs tariff number | 84123100 |
| Manufacturer | Festo |
| Hersteller-Nr | ADN-50-125-I-P-A |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Piston Ø [mm] | 50 |
| Stroke [mm] | 125 |
| Function | double-acting |
| Series | ADN |
| Bore (mm) | 50 |
