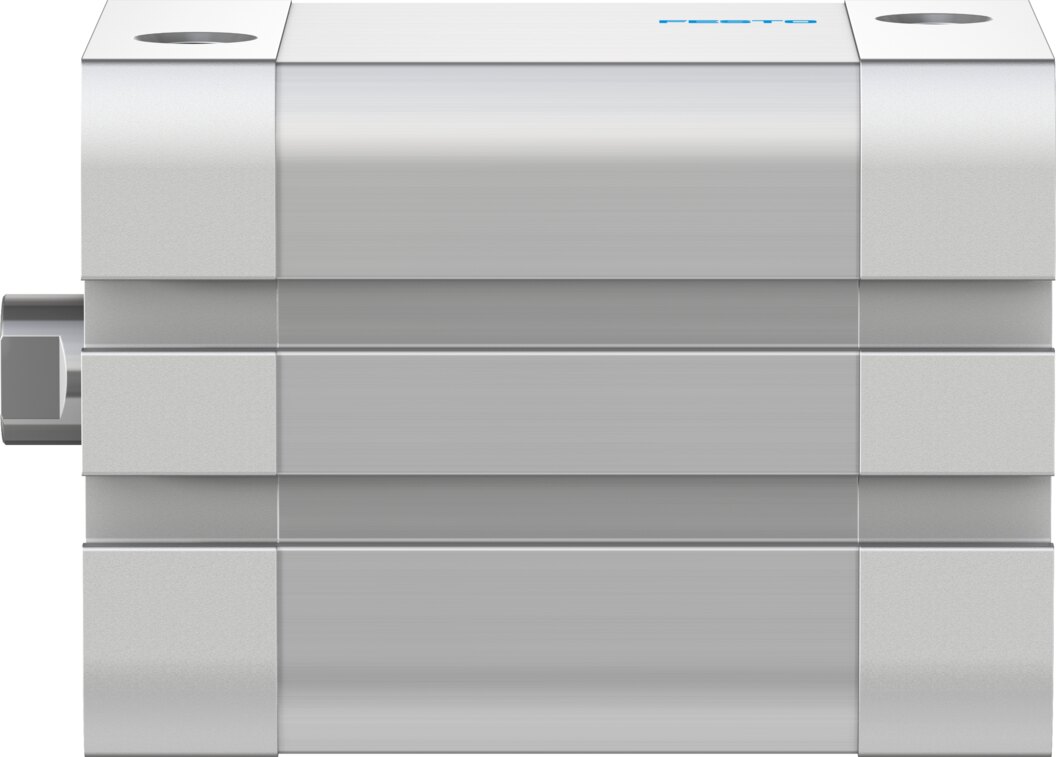

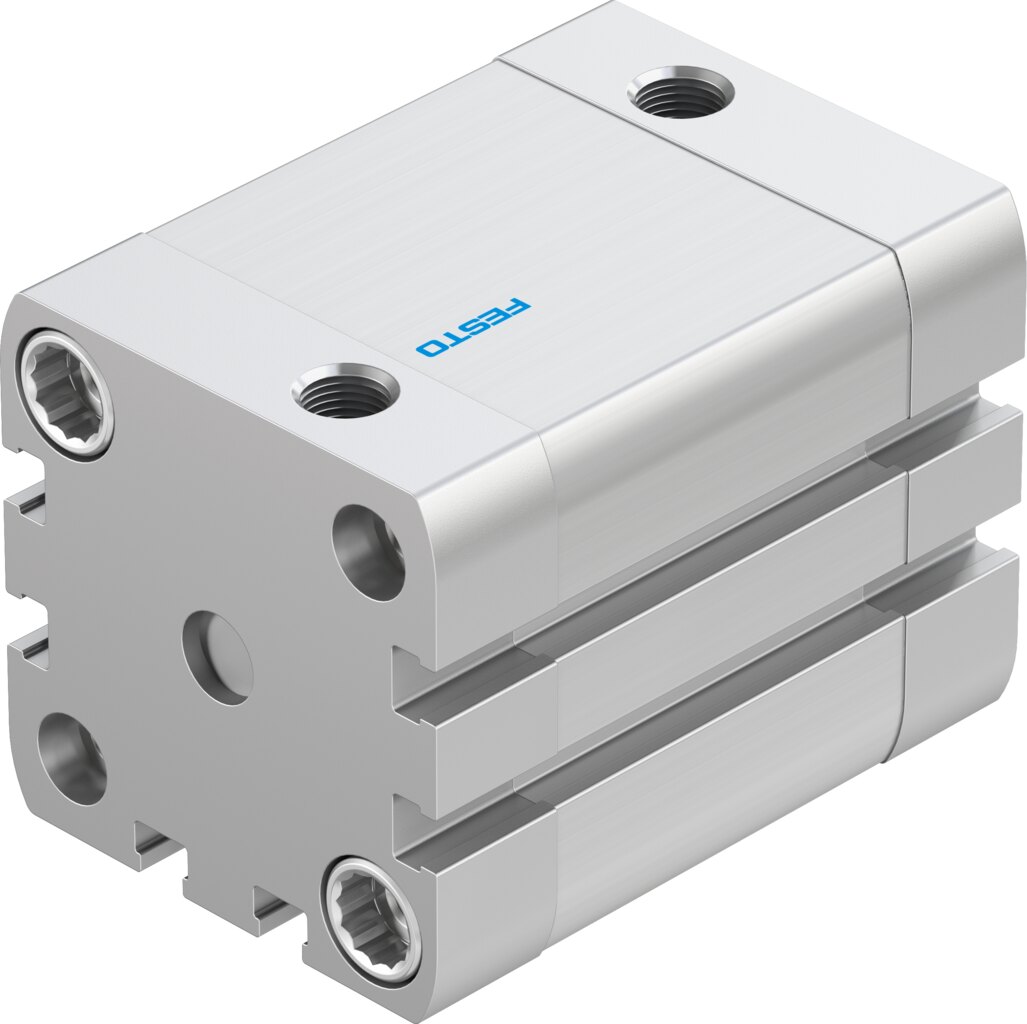

Compact cylinder, double-acting, Ø 40 mm stroke 35 mm ADN-40-35-I-PPS-A - Festo 8179037

A short body, 35 mm of stroke and 754 N pushing force at 6 bar characterise the Festo ADN-40-35-I-PPS-A. This compact cylinder with a 40 mm piston conforms to ISO 21287 and works with self-adjusting pneumatic end-position cushioning PPS.

Benefits

• Theoretical force at 6 bar: 754 N advance, 686 N return
• Self-adjusting end-position cushioning PPS over a 5 mm cushioning length, adapts to load and speed without manual adjustment
• Cleanroom-suitable, class 5 to ISO 14644-1, PWIS (LABS) conformity VDMA24364-B1/B2-L
• Dimensions to ISO 21287, so standard mounting accessories fit directly
• Mounting via through-holes or female thread in the cover, port G1/8
• Operating pressure 1 to 10 bar, ambient temperature -20 to 80 °C

Applications

The ADN-40-35-I-PPS-A suits clamping, ejecting and short positioning moves of up to 35 mm in fixtures and handling modules. With port G1/8 and piston rod thread M8 it connects without adapters.
