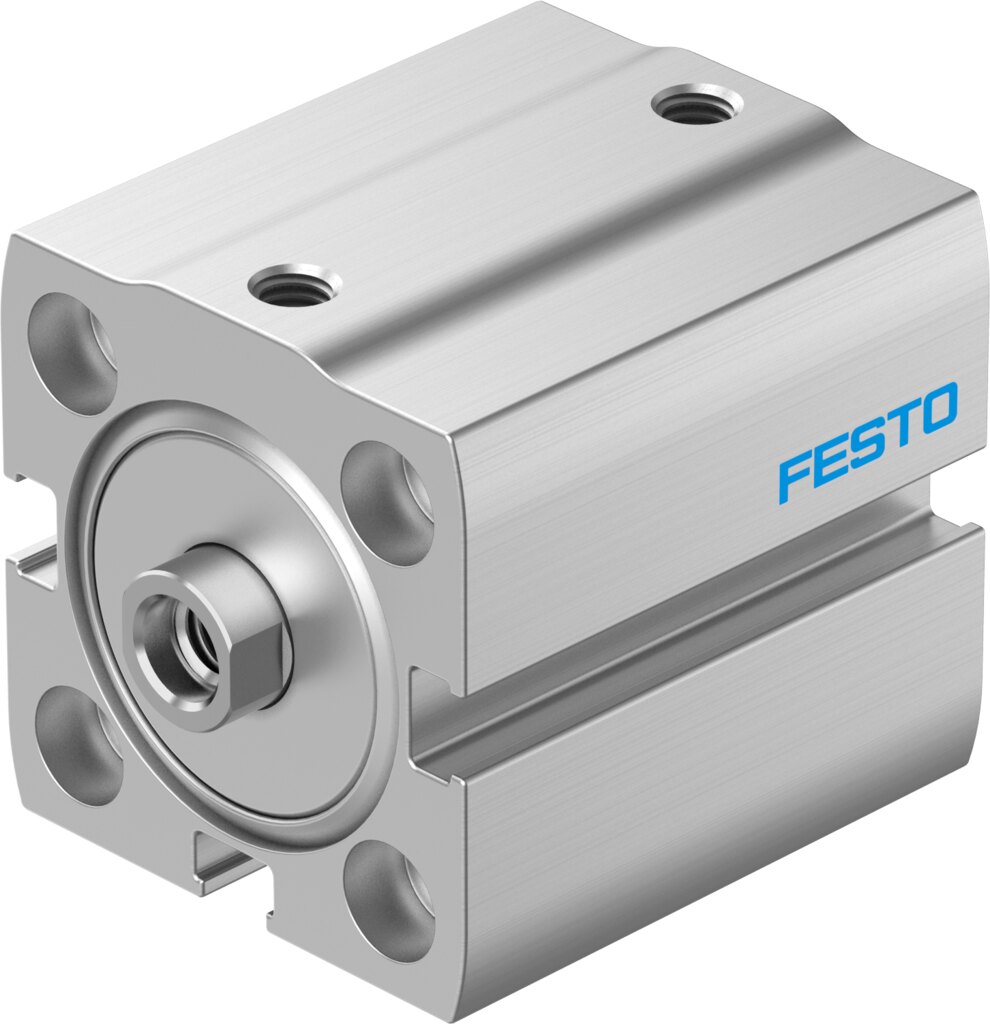

Compact cylinder, double-acting, Ø 40 mm stroke 35 mm ADN-40-35-I-P-A - Festo 8179033

The compact cylinder ADN-40-35-I-P-A has the short ISO 21287 body and pushes with 754 N at 6 bar. Piston Ø 40 mm, 35 mm stroke, double-acting with elastic cushioning rings at both ends (P).

Benefits

• Theoretical force at 6 bar: 754 N advance, 686 N return
• Elastic cushioning rings at both ends, permissible impact energy 0.7 J
• Cleanroom-suitable, class 5 to ISO 14644-1, PWIS (LABS) conformity VDMA24364-B1/B2-L
• Dimensions to ISO 21287, so standard mounting accessories fit directly
• Operating pressure 0.6 to 10 bar, ambient temperature -20 to 80 °C
• Mounting via through-holes or female thread in the cover, port G1/8

Applications

Typical uses are hold-downs, stoppers and pushers where 754 N at 6 bar and 35 mm of travel are enough. Cleanroom class 5 to ISO 14644-1 also allows the ADN-40-35-I-P-A in clean production areas.
