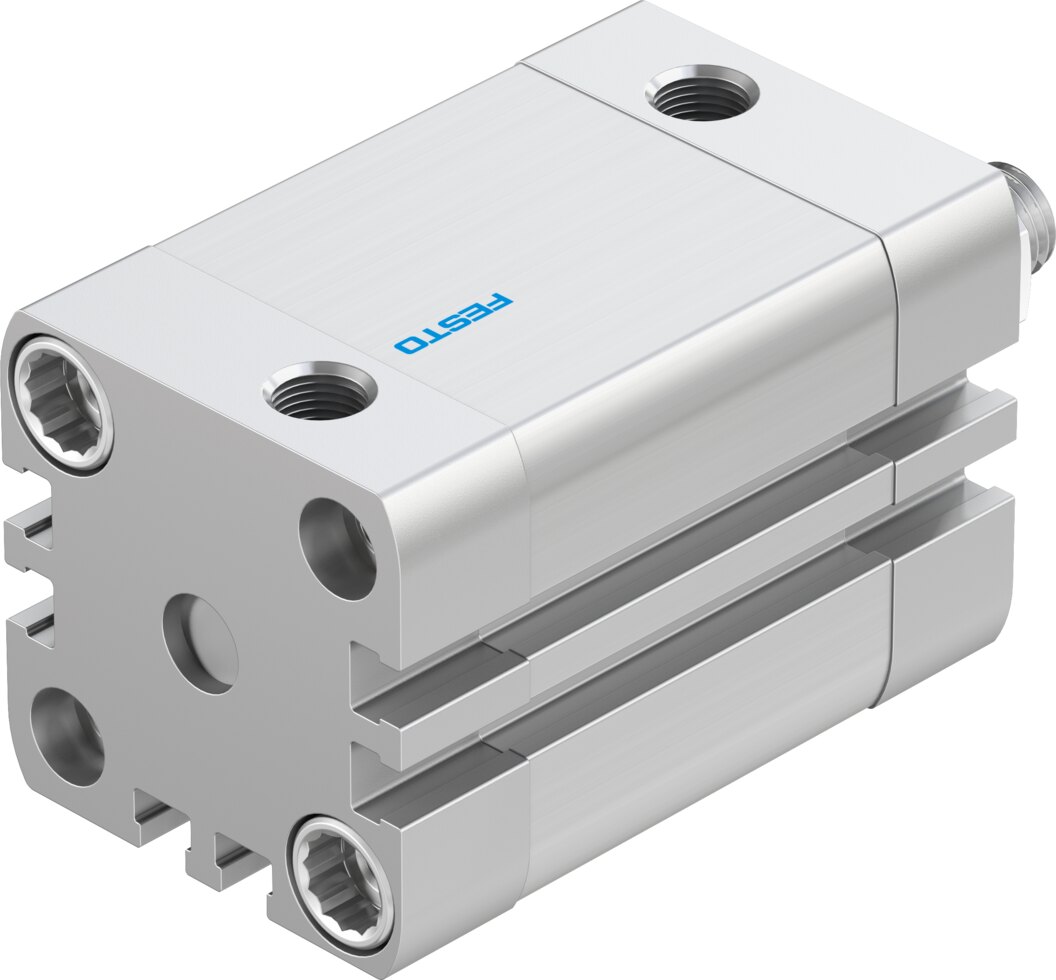

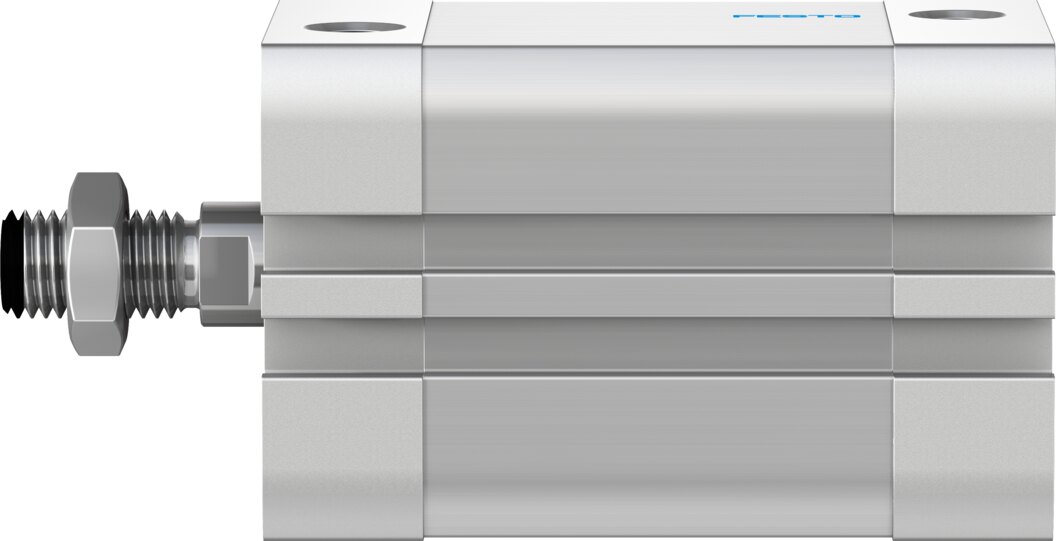

Compact cylinder, double-acting, Ø 32 mm stroke 35 mm ADN-32-35-A-PPS-A - Festo 8179021

The compact cylinder ADN-32-35-A-PPS-A is made for fixtures with little space: piston Ø 32 mm, stroke 35 mm, 483 N advance force at 6 bar. The piston rod ends in an M10x1.25 male thread.

Benefits

• Theoretical force at 6 bar: 483 N advance, 415 N return
• Self-adjusting end-position cushioning PPS over a 4 mm cushioning length, adapts to load and speed without manual adjustment
• Dimensions to ISO 21287, so standard mounting accessories fit directly
• Cleanroom-suitable, class 5 to ISO 14644-1, PWIS (LABS) conformity VDMA24364-B1/B2-L
• Operating pressure 1.5 to 10 bar, ambient temperature -20 to 80 °C
• Mounting via through-holes or female thread in the cover, port G1/8

Applications

Typical uses are hold-downs, stoppers and pushers where 483 N at 6 bar and 35 mm of travel are enough. Cleanroom class 5 to ISO 14644-1 also allows the ADN-32-35-A-PPS-A in clean production areas.
