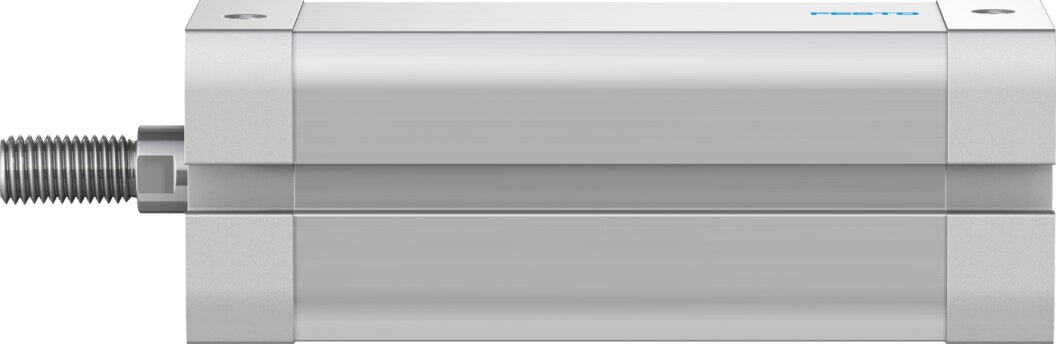

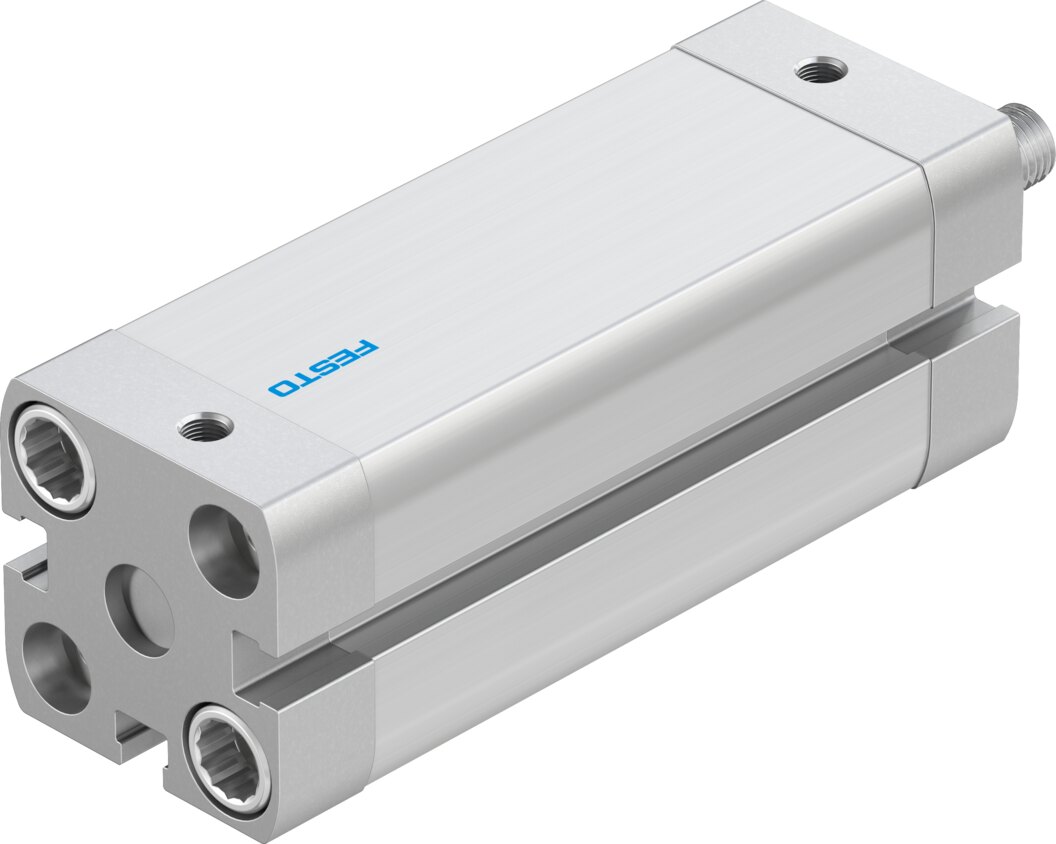

Double-acting compact cylinder Ø 20 mm stroke 70 mm ADN-20-70-A-PPS-A-10K2-10K8 - Festo 593657

Ø 20 mm piston, 70 mm stroke: the double-acting compact cylinder ADN-20-70-A-PPS-A-10K2-10K8 from the ADN series is the Festo version with part number 593657. According to type code ADN-20-70-A-PPS-A-10K2-10K8, the cylinder is prepared for end-position sensing with proximity switches. Compressed air drives the piston both ways, so advance and return over 70 mm are powered.

Benefits at a glance

• Piston Ø 20 mm, stroke 70 mm
• PPS end-position cushioning without adjustment
• Piston rod with male thread
• End positions can be sensed with proximity switches
• Double-acting: force in both directions

Use

In handling and fixture construction the cylinder moves parts over 70 mm, for example as an ejector, pusher or lifting unit.
