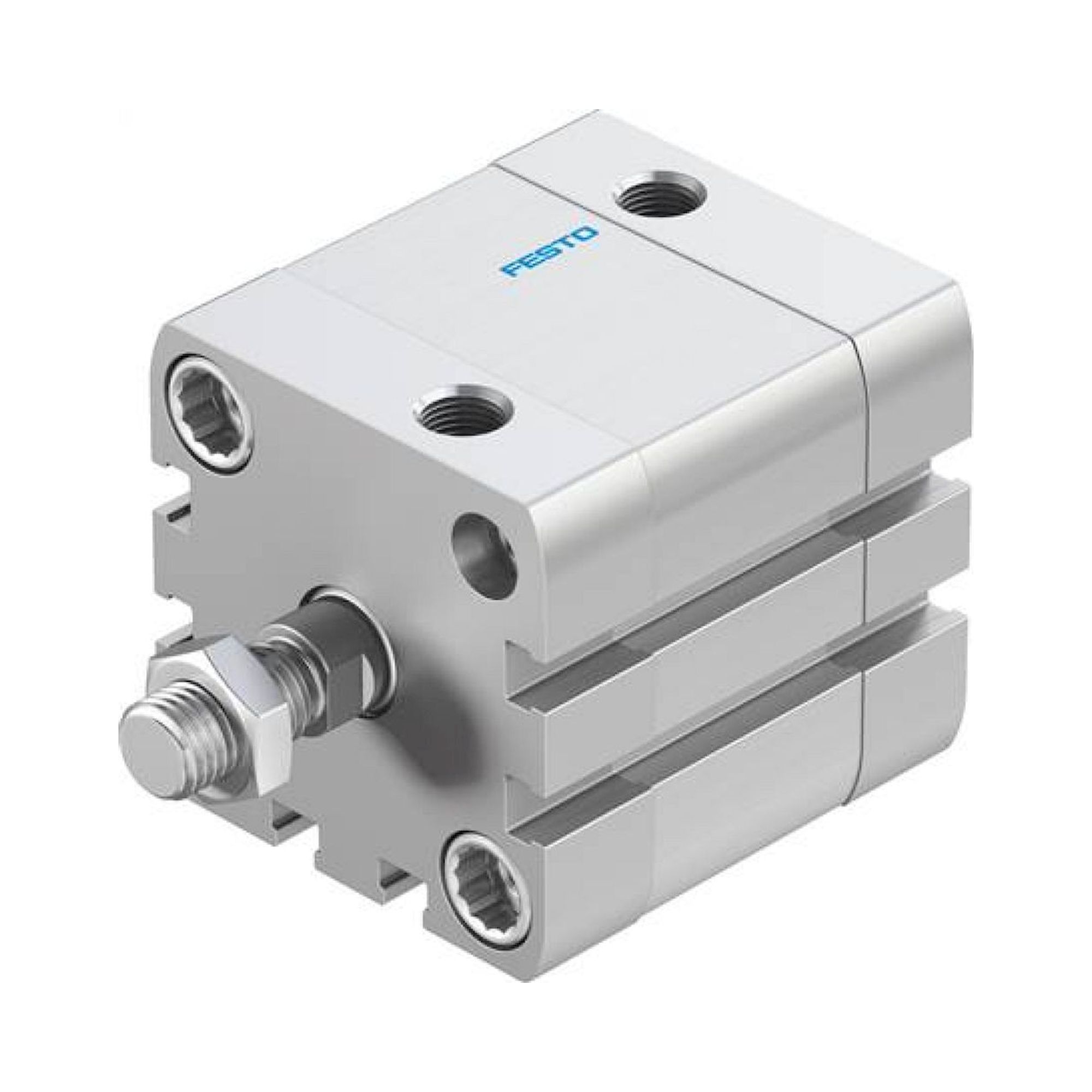

Compact cylinder double-acting Ø 12 mm stroke 50 mm ADN-12-50-A-P-A - Festo 8178548

12 mm piston, 50 mm stroke, 68 N advance and 51 N return force at 6 bar: the double-acting compact cylinder ADN-12-50-A-P-A fits fixtures where a standard cylinder is too long.

Benefits

• Easy sizing: 68 N forward and 51 N back at 6 bar according to Festo
• Quiet stop: elastic cushioning at both ends absorbs 0.07 J in the end positions
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Flexible use: operating pressure 1 to 10 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy steel, thread M5
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B1/B2-L

Applications

With a 12 mm piston, the ADN-12-50-A-P-A suits small-parts handling, electronics assembly and light stoppers. For mounting, the ADN-12-50-A-P-A uses through-holes, female threads or Festo accessories, air port M5. According to Festo the product weight is 126 g.
