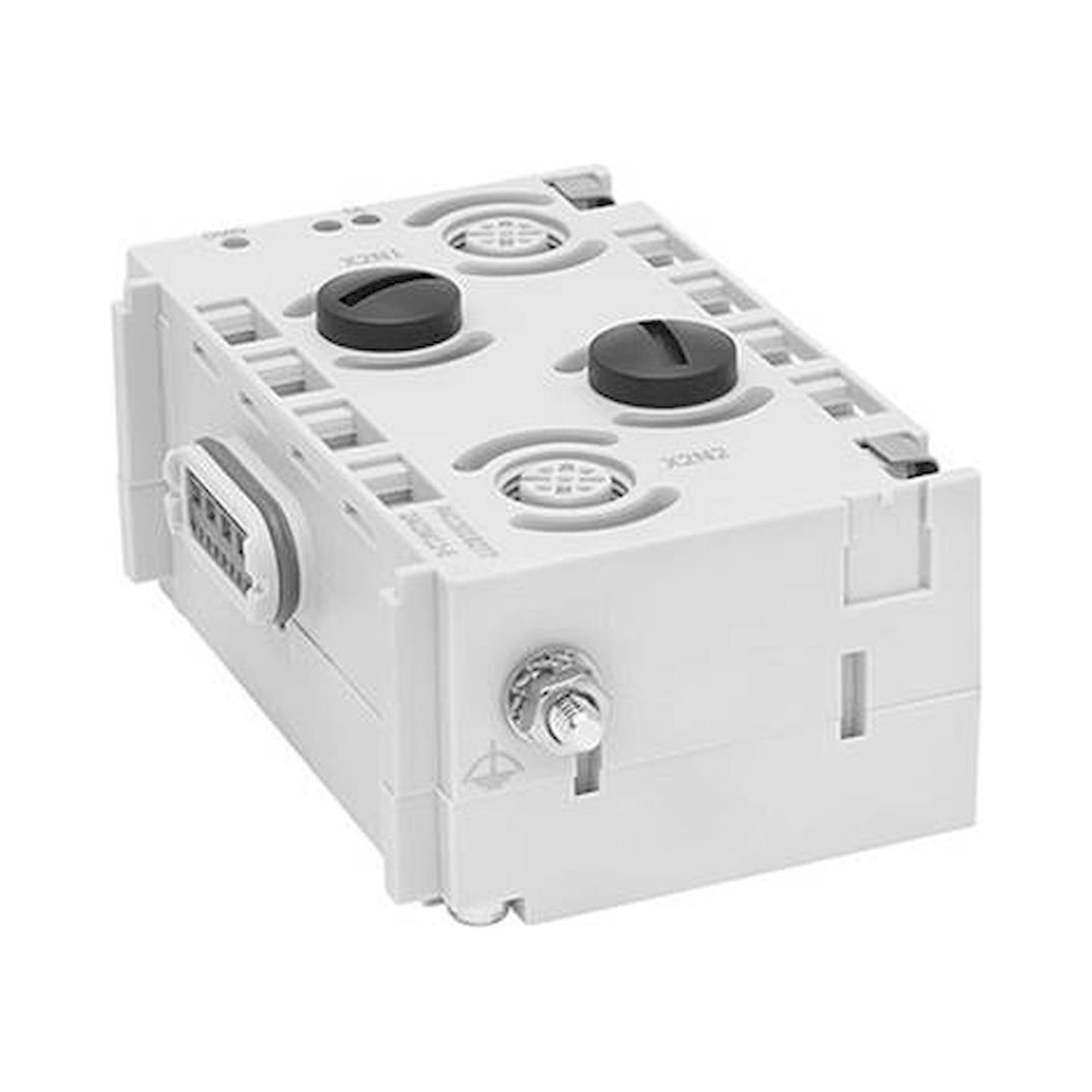

AES I/O module 4AI4M12-E with 4 analogue inputs, M12x1 5-pin socket, IP65 - Aventics R412018278
The 4AI4M12-E I/O module adds 4 analogue inputs to an AES series valve system, connected via M12x1 5-pin socket. Signal ranges 0 to 10 V, 2 to 10 V, 0 to 20 mA, 4 to 20 mA, IP65 protection, ambient temperature -10 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
4 analogue inputs, M12x1 5-pin socket, IP65: the Aventics module 4AI4M12-E (AES-D-IO-4AI4M12-E) is part of the AES series I/O system.
Benefits
- 4 analogue inputs
- Signal connection M12x1 5-pin socket
- Input ranges 0 to 10 V, 2 to 10 V, 0 to 20 mA, 4 to 20 mA
- IP65 protection, -10 to 60 °C
- EMC to EN 61000-6-2 and EN 61000-6-4
Applications
The module is used to integrate sensors and actuators on the machine directly through the AES valve terminal, without a separate I/O station.
Technical data
| Material number | R412018278 |
|---|---|
| Version | I/O modules |
| I/O module version | analog inputs/outputs |
| Number of I/O connections | 4 inputs |
| Power plug IN, Type | Internal |
| Signal connection I/O type | Socket |
| Signal connection I/O thread size | M12x1 |
| Signal connection I/O number of poles | 5-pin |
| Signal connection I/O coding | A-coded |
| Analog inputs | 0 ... 10 V, 2 - 10 V, 0 ... 20 mA, 4 ... 20 mA |
| Ambient temperature | -10 to 60 °C |
| Operational voltage electronics | 24 V DC |
| Electronics voltage tolerance | -25 % / +25 % |
| Protection class | IP65 |
| Max. total current of sensors | 0.5 A |
| Logic/actuator voltage | Galvanically isolated |
| Diagnosis | Short circuit |
| Generic emission standard in accordance with norm | EN 61000-6-4 |
| Generic immunity standard in accordance with norm | EN 61000-6-2 |
| Housing material | Polyamide, fiber-glass reinforced |
| Weight | 0.11 kg |
| Customs tariff number | 85366930 |
| Manufacturer | Aventics |
| Hersteller-Nr | R412018278 |
| Zolltarifnummer | 85366930 |
| GPSR Herstellerdaten | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Operating voltage | 24 V DC |
| Protection rating | IP65 |
| Temperaturbereich | -10-60 °C |
