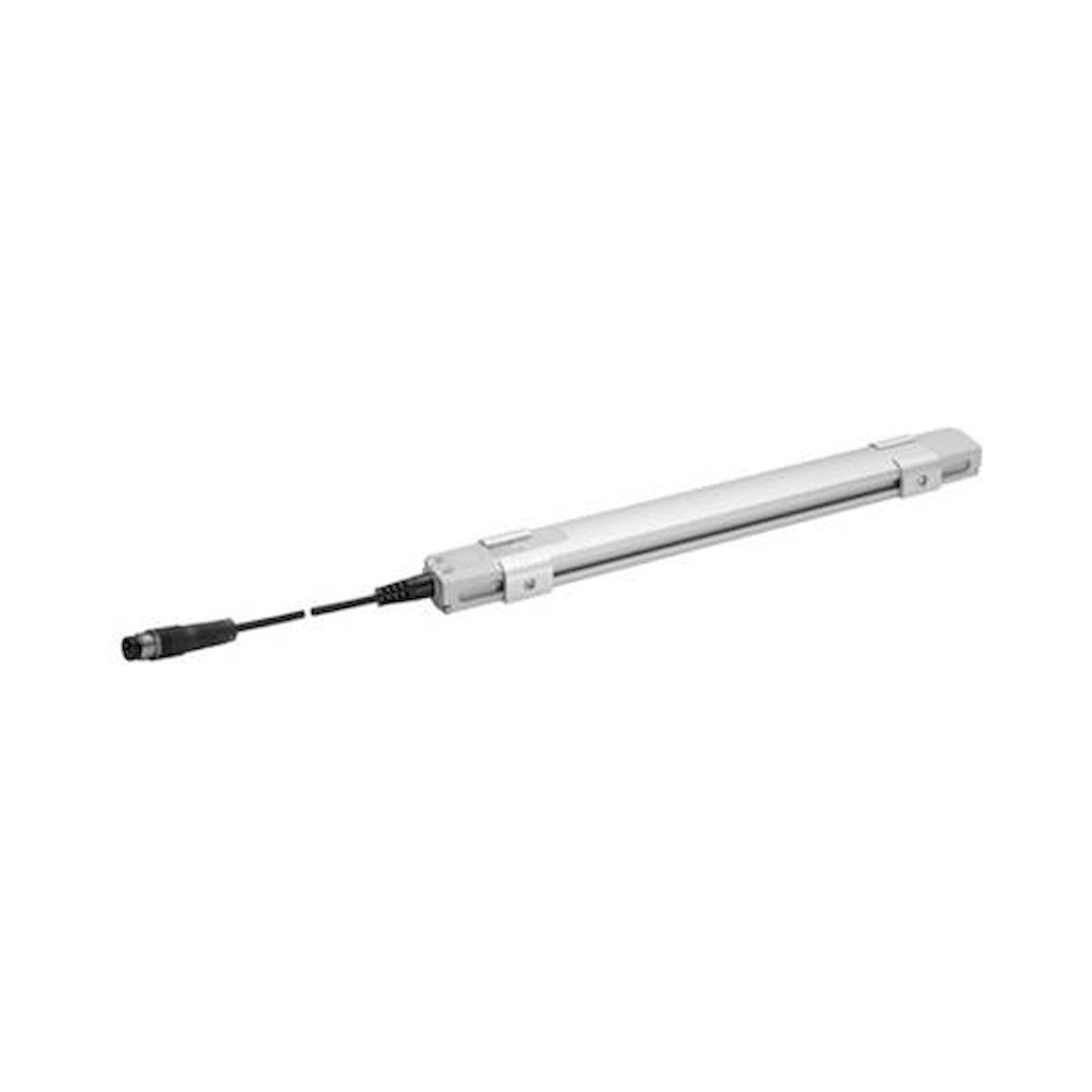

Position sensor SM6-AL-M08T-030-287, measuring range 287 mm, M8x1 plug, 4-pin, 0.3 m cable - Aventics R412010885
The SM6-AL-M08T-030-287 position sensor from the Aventics SM6-AL series detects the piston position over a measuring range of 287 mm and passes it to the controller as 0 to 10 V DC, 4 to 20 mA. Connection: M8x1 plug, 4-pin, 0.3 m cable, repeatability typ. 0.06 % FSR.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SM6-AL-M08T-030-287 position sensor from the Aventics SM6-AL series detects the piston position over a measuring range of 287 mm and passes it to the controller as 0 to 10 V DC, 4 to 20 mA.
Benefits
- Measuring range up to 287 mm can be taught to the application via teach-in button.
- Precise measurement: resolution typ. 0.03 % FSR, linearity 0.5 mm.
- 287 mm of travel as 0 to 10 V DC, 4 to 20 mA signal directly for analogue input cards.
- Aluminium housing, polyurethane cable sheath, connection M8x1 plug, 4-pin, 0.3 m cable.
- Mechanically robust: shock resistance 30 g / 11 ms, vibration resistance 10 to 55 Hz, 1 mm.
- With protection class IP65 and IP67 it is dust-tight and protected against temporary immersion, so it also suits harsh machine environments.
Applications
Fitted to cylinders PRA, ITS, RTC, CVI with the matching sensor mounting. The 287 mm measuring range suits stroke monitoring, part detection via piston position and process documentation.
Technical data
| Feature | Value |
|---|---|
| Type | SM6-AL-M08T-030-287 |
| Part number | R412010885 |
| Indirect mounting for series | PRA, ITS, RTC, CVI |
| Electrical connection type | Plug |
| Electrical connection size | M8x1 |
| Electrical connection number of poles | 4-pin |
| Cable | with cable |
| Cable length | 0.3 m |
| Quiescent current (without load) | < 35 mA |
| Repeatability (max measuring range) | typically 0.06 % FSR |
| Max load resistance | 500 Ω |
| Output signal | 0 to 10 V DC, 4 to 20 mA |
| Residual ripple | ≤ 10 % |
| Sampling interval | 1.15 ms |
| Certificates | cULus |
| Protection class | IP65, IP67 |
| Ambient temperature | -20 to 70 °C |
| Max measuring range | 287 mm |
| Max measuring range resolution | typically 0.03 % FSR |
| Linearity deviation | 0.5 mm |
| Shock resistance | 30 g / 11 ms |
| Vibration resistance | 10 to 55 Hz, 1 mm |
| Display | 2 LED |
| Housing material | Aluminium |
| Material cable sheath | Polyurethane |
| Weight | 0.31 kg |
| Manufacturer | Aventics |
| Hersteller-Nr | R412010885 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Protection rating | IP67 |
| Temperaturbereich | -20-70 °C |
