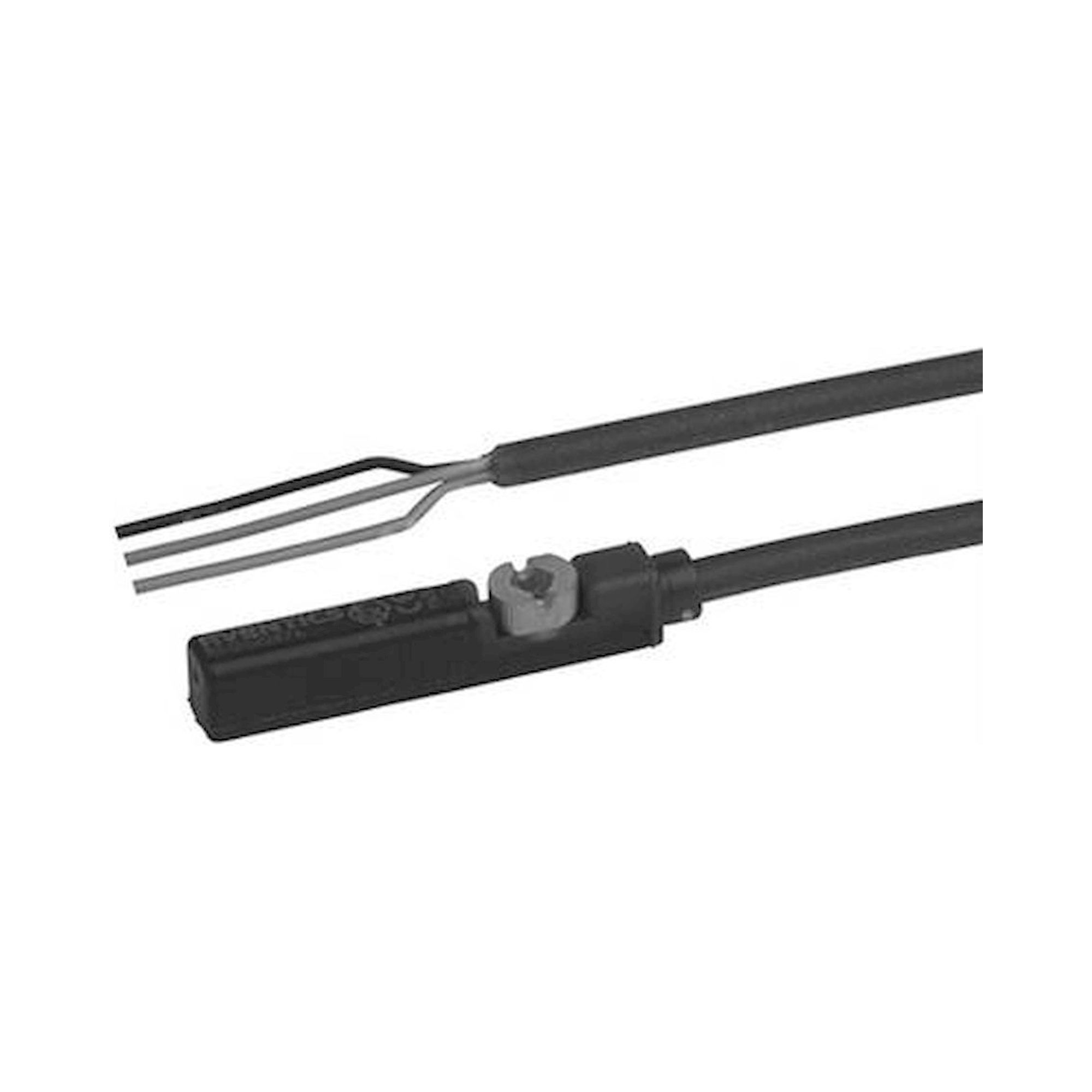

Electronic NPN cylinder switch ST6-NP-K05U-030, for 6 mm T-slot, 5 m cable, open ends - Aventics R412022850

Aventics ✓ Original product Brand new Made in Germany

Reliable end-position sensing: ST6-NP-K05U-030 is a NPN sensor from the ST6 series for 6 mm T-slot, 5 m cable, open ends. Operating voltage 10 to 30 V DC, switching current up to 0.13 A. Use from -30 to 80 °C with protection class IP65, IP67, IP69K.

Net
€52.31
excl. VAT
Item AVE-R412022850
Manufacturer no. R412022850
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Reliable end-position sensing: ST6-NP-K05U-030 is a NPN sensor from the ST6 series for 6 mm T-slot, 5 m cable, open ends.

Benefits

  • Drop-in mounting: the sensor is inserted into the 6 mm T-slot and clamped.
  • Switching frequency up to 1000 Hz, also for fast cycle sequences.
  • The output is short-circuit proof and reverse polarity protected.
  • Yellow indicator for quick checks during set-up and maintenance.
  • Housing rated IP65, IP67, IP69K.
  • Rated for ambient temperatures of -30 to 80 °C.

Applications

The ST6-NP-K05U-030 is used for position sensing on cylinders, grippers and rotary actuators in machine building.

Technical data

FeatureValue
TypeST6-NP-K05U-030
Part numberR412022850
Slot width6 mm T-slot
Cablewith cable
Contact typeNPN
Operating voltage DC10 to 30 V DC
Nominal current, actuated state< 30 mA
Quiescent current (without load)< 8 mA
Hysteresis≥ 0.2 mT
CertificatesCE declaration of conformity, cULus, RoHS, UL (Underwriters Laboratories)
Protection classIP65, IP67, IP69K
Ambient temperature-30 to 80 °C
Voltage drop U at Imax≤ 2.5 V
Max DC switching current0.13 A
Max switching frequency1000 Hz
Switching point precision±0.1 mT
Switching logicNO (make contact)
LED status displayYellow
Electrical connection 2, typeopen cable ends
Electrical connection 2, number of poles3-pin
Short circuit resistanceshort circuit resistant, Protected against polarity reversal
Shock resistance30 g / 11 ms
Vibration resistance10 to 55 Hz, 1 mm
Cable length L5 m
Housing materialPolyamide
Weight0.06 kg
ManufacturerAventics
Hersteller-NrR412022850
Zolltarifnummer85365019
GPSR HerstellerdatenAVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Country of ManufactureGermany
Protection ratingIP69K
Temperaturbereich-30-80 °C
