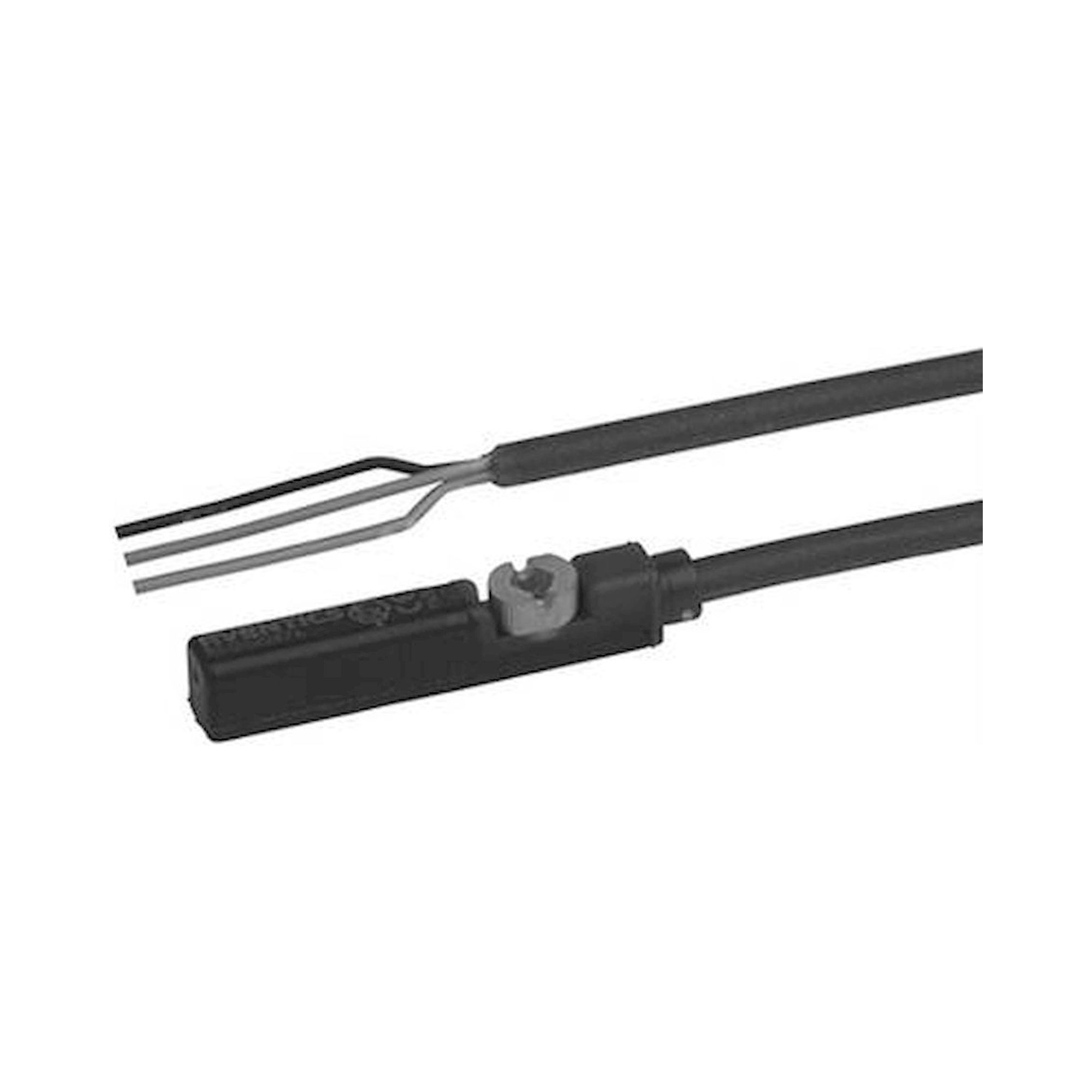

Electronic PNP cylinder switch ST6-PN-K05U-030, for 6 mm T-slot, 5 m cable, open ends - Aventics R412022855
The electronic PNP cylinder switch ST6-PN-K05U-030 from the Aventics ST6 series reports the piston position of pneumatic cylinders to the controller, connection 5 m cable, open ends. Operating voltage 10 to 30 V DC, switching current up to 0.13 A.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The electronic PNP cylinder switch ST6-PN-K05U-030 from the Aventics ST6 series reports the piston position of pneumatic cylinders to the controller, connection 5 m cable, open ends.
Benefits
- Fits the 6 mm T-slot, mounted from above (drop-in) without dismantling the cylinder.
- Up to 1000 Hz switching frequency for short cycle times.
- Short-circuit proof and reverse polarity protected: connection errors during installation are caught.
- Yellow indicator for quick checks during set-up and maintenance.
- Housing rated IP65, IP67, IP69K.
- Ambient temperature range -30 to 80 °C.
Applications
The ST6-PN-K05U-030 sensor reports piston positions in special machines, fixtures and conveyor systems to PLC inputs.
Technical data
| Feature | Value |
|---|---|
| Type | ST6-PN-K05U-030 |
| Part number | R412022855 |
| Slot width | 6 mm T-slot |
| Cable | with cable |
| Contact type | PNP |
| Operating voltage DC | 10 to 30 V DC |
| Nominal current, actuated state | < 30 mA |
| Quiescent current (without load) | < 8 mA |
| Hysteresis | ≥ 0.2 mT |
| Certificates | CE declaration of conformity, cULus, RoHS, UL (Underwriters Laboratories) |
| Protection class | IP65, IP67, IP69K |
| Ambient temperature | -30 to 80 °C |
| Voltage drop U at Imax | ≤ 2.5 V |
| Max DC switching current | 0.13 A |
| Max switching frequency | 1000 Hz |
| Switching point precision | ±0.1 mT |
| Switching logic | NO (make contact) |
| LED status display | Yellow |
| Electrical connection 2, type | open cable ends |
| Electrical connection 2, number of poles | 3-pin |
| Short circuit resistance | short circuit resistant, Protected against polarity reversal |
| Shock resistance | 30 g / 11 ms |
| Vibration resistance | 10 to 55 Hz, 1 mm |
| Cable length L | 5 m |
| Housing material | Polyamide |
| Weight | 0.06 kg |
| Manufacturer | Aventics |
| Hersteller-Nr | R412022855 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Protection rating | IP69K |
| Temperaturbereich | -30-80 °C |
