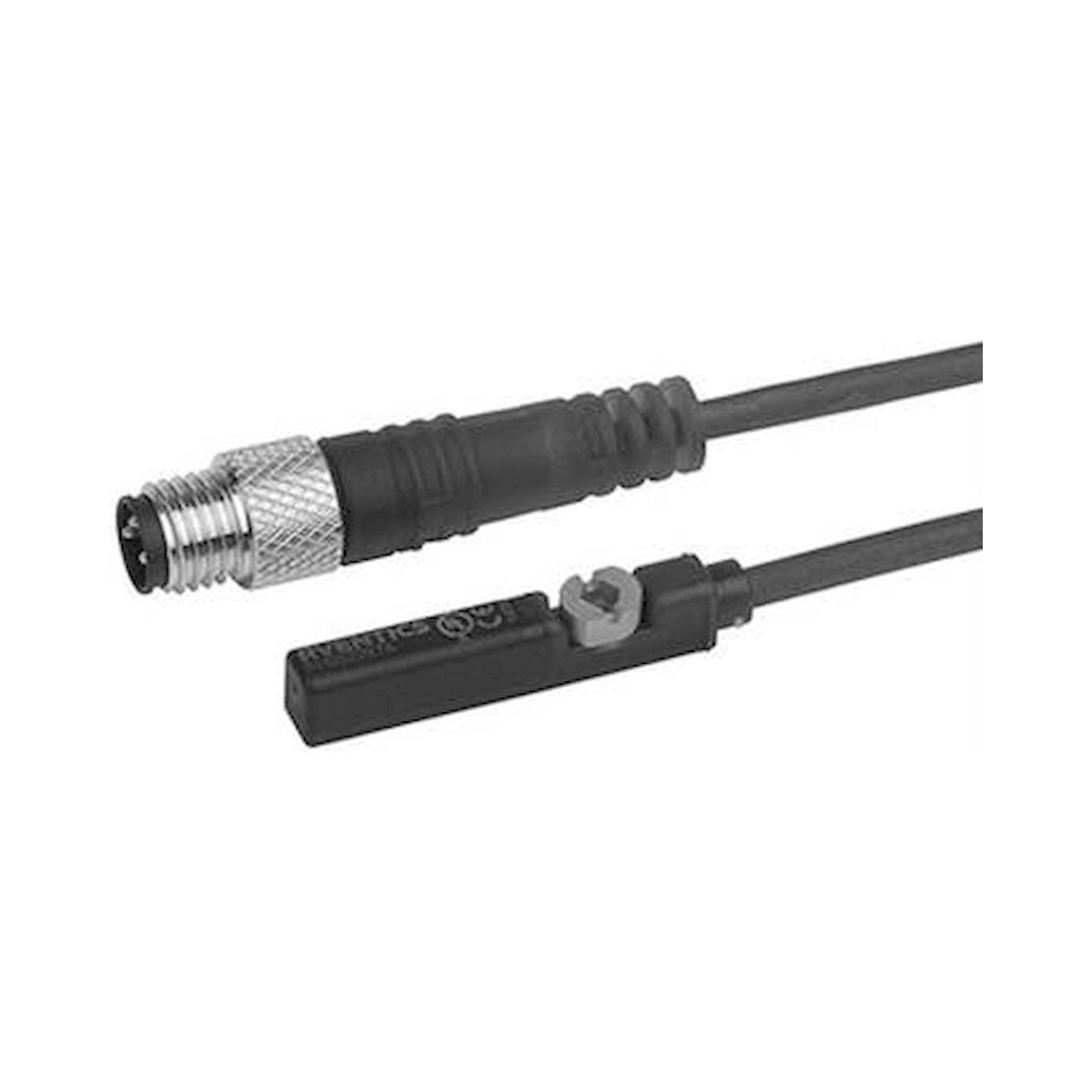

Electronic PNP cylinder switch ST6-PN-M08V-030, for 6 mm T-slot, M8x1 plug, 3-pin - Aventics R412022862
The electronic PNP cylinder switch ST6-PN-M08V-030 from the Aventics ST6 series reports the piston position of pneumatic cylinders to the controller, connection M8x1 plug, 3-pin. Operating voltage 10 to 30 V DC, switching current up to 0.13 A.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The electronic PNP cylinder switch ST6-PN-M08V-030 from the Aventics ST6 series reports the piston position of pneumatic cylinders to the controller, connection M8x1 plug, 3-pin.
Benefits
- Fits the 6 mm T-slot, mounted from above (drop-in) without dismantling the cylinder.
- Maximum switching frequency 1000 Hz.
- Electronics short-circuit proof and reverse polarity protected, which protects against wiring errors during commissioning.
- Status indication via yellow LED.
- Protection class IP65 and IP67: the housing is dust-tight and protected against temporary immersion.
- Usable at ambient temperatures from -30 to 80 °C.
Applications
Typical use is end-position sensing on pneumatic cylinders in assembly, handling and packaging machines, where the ST6-PN-M08V-030 replaces mechanical limit switches.
Technical data
| Feature | Value |
|---|---|
| Type | ST6-PN-M08V-030 |
| Part number | R412022862 |
| Slot width | 6 mm T-slot |
| Cable | with cable |
| Contact type | electronic PNP |
| Operating voltage DC | 10 to 30 V DC |
| Nominal current, actuated state | < 30 mA |
| Quiescent current (without load) | < 8 mA |
| Hysteresis | ≥ 0.2 mT |
| Switching capacity | Reed, 3-pin: max 6 W |
| Certificates | CE declaration of conformity, cULus, RoHS, UL (Underwriters Laboratories) |
| Protection class | IP65, IP67 |
| Ambient temperature | -30 to 80 °C |
| Voltage drop U at Imax | ≤ 2.5 V |
| Max DC switching current | 0.13 A |
| Max switching frequency | 1000 Hz |
| Switching point precision | ±0.1 mT |
| Switching logic | NO (make contact) |
| LED status display | Yellow |
| Electrical connection 2, type | Plug |
| Electrical connection 2, size | M8x1 |
| Electrical connection 2, number of poles | 3-pin |
| Short circuit resistance | short circuit resistant, Protected against polarity reversal |
| Shock resistance | 30 g / 11 ms |
| Vibration resistance | 10 to 55 Hz, 1 mm |
| Weight | 0.015 kg |
| Manufacturer | Aventics |
| Hersteller-Nr | R412022862 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Protection rating | IP67 |
| Temperaturbereich | -30-80 °C |
