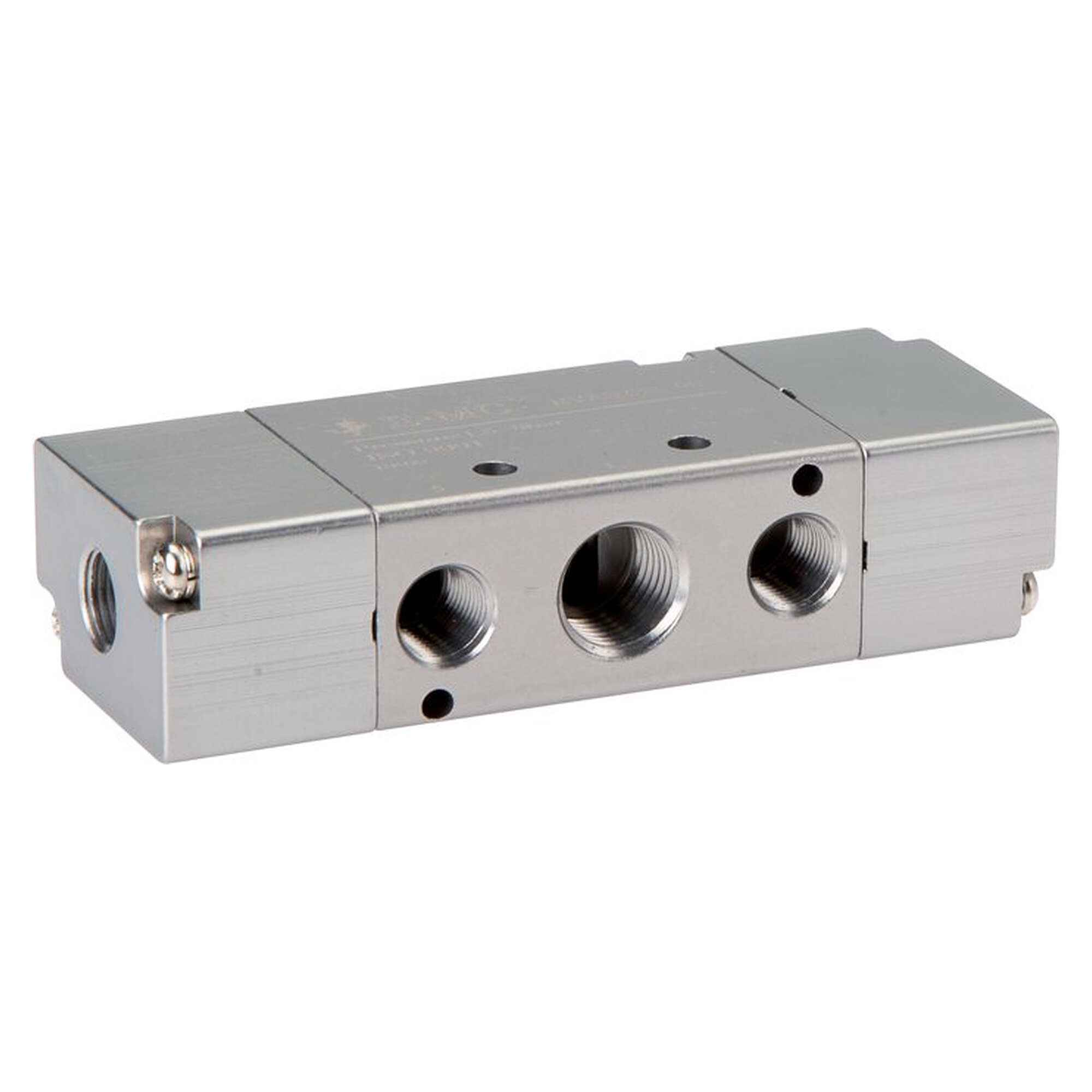

5/2-way pneumatic valve, double air pilot, impulse function, G 1/4, 800 l/min - E.MC
5/2-way pneumatic valve with G 1/4 ports and 800 l/min flow, switched by a pressure signal at the 2x G 1/8 pilot port. As an impulse valve it holds the last switched position even after the signal is removed. Operating pressure 1.5 to 8 bar, pilot pressure 2 to 8 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Where no voltage should be present at the valve, this air-actuated 5/2-way pneumatic valve does the switching: a pressure signal at the 2x G 1/8 pilot port shifts it. With a nominal size of 4.5 mm and 800 l/min at G 1/4 it feeds a mid-size cylinder directly.
Advantages
- Impulse function: a short switching pulse is enough, and the position is held if the signal drops out.
- 800 l/min with a nominal size of 4.5 mm, 3x G 1/4 ports and 2x G 1/8 exhaust.
- No coil at the valve: 2x G 1/8 pilot port, pilot pressure 2 to 8 bar.
- Aluminium alloy body and spool, NBR seals, service life of at least 40 million cycles.
Applications
- Double-acting cylinders on clamping fixtures that must hold position if the signal fails.
- Step sequences where a short pulse reverses the direction of motion.
- Rotary actuators and linear axes needing up to 800 l/min.
- Fully pneumatic control chains with signal transmitters such as roller lever or push-button valves.
Technical data
| Feature | Value |
|---|---|
| Type | 5/2-way pneumatic valve, pneumatically actuated |
| Function | impulse valve (bistable) |
| Working ports (3x) | G 1/4 |
| Exhaust (2x) | G 1/8 |
| Pilot port | 2x G 1/8 |
| Nominal size | 4.5 mm |
| Flow rate | 800 l/min |
| Operating pressure | 1.5 to 8 bar |
| Pilot pressure | 2 to 8 bar |
| Proof pressure | 12 bar |
| Medium | filtered compressed air, lubricated or non-lubricated |
| Temperature range | -20 to 70 °C, non-freezing |
| Max. switching frequency | 5 cycles/s |
| Service life | min. 40 million cycles |
| Body and spool material | aluminium alloy |
| Piston material | POM |
| Seal material | NBR |
| Overall length | 92.0 mm |
| Valve body | 35 x 22 mm |
| Weight | 165 g |
| Dimension drawing | in the E.MC datasheet (PDF) |
| Manufacturer | E.MC |
| Hersteller-Nr | RV 5222-08 A |
| EAN | 4050571715830 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Nominal size DN [mm] | 4,5 |
| Flow rate [l/min] | 800 |
| Gewinde Abluft (2x) | G 1/8 |
| Temperaturbereich | -20-70 °C |
