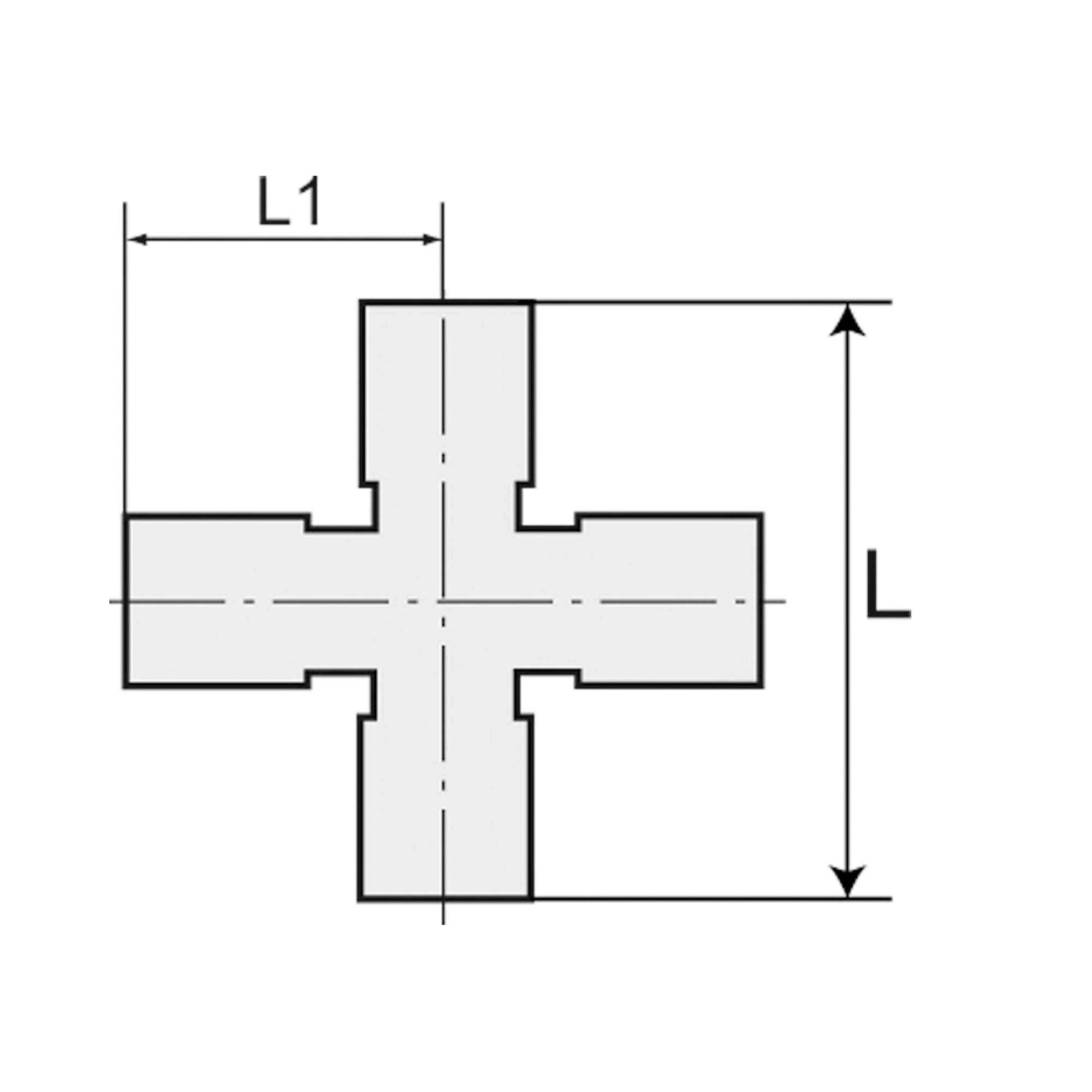

Push-in X-connector »click-clock« for hose exterior-Ø 4 mm - Riegler 108768

Push-in X-connector »click-clock« for hose exterior-Ø 4, Working pressure -0.99 to 16 bar, Operating temperature -20 °C to 80 °C The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass. Advantages of this new, optimised series: Much easier connection and disconnection of the hose, even with repeated mountingCan also be used for non-calibrated hosesSuitable for vacuum operation

Technical data

Standards and origin

• Customs tariff number: 74122000
• Country of origin: IT

About X-unions

A push-in X-connector splits one line into four ports in a cross layout, with the tubes pushed in by hand and held by the collet. At a branch point that replaces several individual fittings. The range covers tube outside diameters from 4 to 16 mm, with working pressure up to 10 or 20 bar depending on the version.

What matters when choosing

• For tube O.D.: 4 to 16 mm. The outside diameter of the tube is what counts, because that is the surface the collet grips.
• Material: plastic with nickel-plated brass, nickel-plated brass or stainless steel 1.4404. Nickel-plated brass is the standard choice for compressed air, stainless steel 1.4404 is used where the surroundings or the medium are aggressive.
• Sealant: NBR or FKM, FPM. NBR covers ordinary compressed air duty, FKM takes the higher temperatures up to 150 °C.
• Working pressure: 10 to 20 bar maximum, down to -0.99 to -0.95 bar. That makes the connectors usable on vacuum lines as well.
• Series: Blue Series, click-clock or inox line. The series fixes the material and temperature combination. Operating temperature starts at -20 °C and ends at 80 °C or 150 °C depending on the version.

Typical applications

• Cross distribution of control air on valve terminals and cylinder groups
• Branching blow-off air lines on conveyors and blow-off stations
• Vacuum lines on suction cups, since working pressure reaches down to -0.99 bar
• Plant sections handling corrosive media, where the stainless steel 1.4404 version applies
• Test rigs and assembly fixtures whose tubing is rearranged often

The 15 items come in plastic with nickel-plated brass, in nickel-plated brass and in stainless steel 1.4404, sealed with NBR or FKM, FPM. Production is in Italy, India and China.
