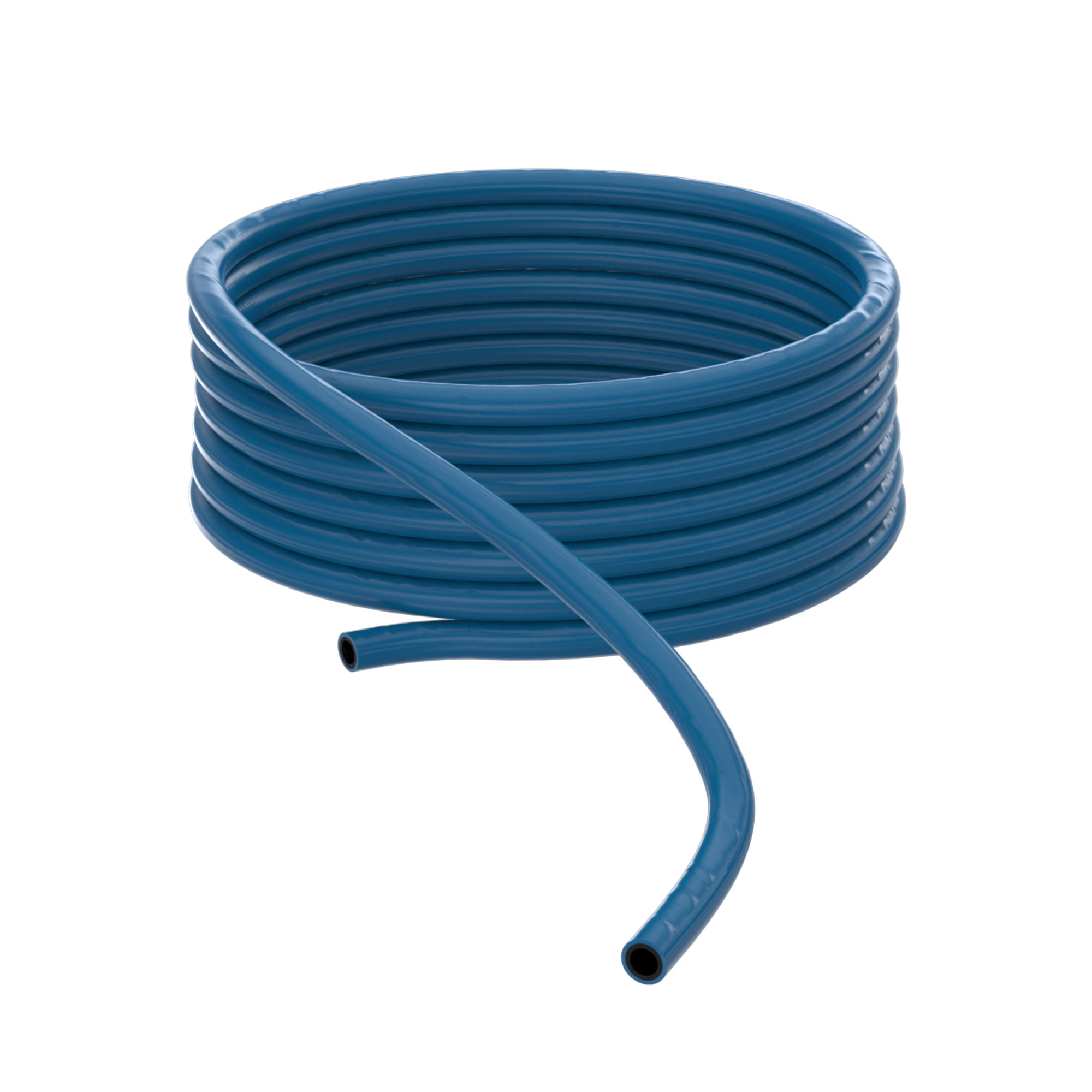

Soft PVC workshop hose, hose O.D. 11 to 34 mm, 15 bar, roll length 50 m - Riegler
Riegler soft PVC workshop hose in several sizes: hose O.D. 11 to 34 mm, I.D. 6.3 to 25 mm. Operating pressure up to 15 bar at 23 °C, temperature range -20 to 60 °C. Even fabric reinforcement for high pressure resistance and mechanical strength.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Riegler soft PVC workshop hose in several sizes: hose O.D. 11 to 34 mm, I.D. 6.3 to 25 mm. Operating pressure up to 15 bar at 23 °C, temperature range -20 to 60 °C.
Advantages
- Operating pressure up to 15 bar at 23 °C
- Hose inner diameter 6.3 to 25 mm
- Hose outer diameter 11 to 34 mm
- Min. bending radius 23 to 88 mm
- Even fabric reinforcement for high pressure resistance and mechanical strength
- Very good handling and excellent bond adhesion
Applications
Applications: compressed air applications in the workshop, such as supplying pneumatic tools and equipping assembly stations. Choose the right size via the hose diameter and roll length of the variant.
Technical data
| Manufacturer | Riegler |
|---|---|
| Temperature min | -20 °C |
| Temperature max | 60 °C |
| Outer cover | soft PVC, blue |
| Inner tube | soft PVC, black |
| Reinforcement | high-strength polyester fabric |
| Max operating pressure at 23 °C | 15 bar |
| Roll length | 50 m |
| Hose inner diameter (per variant) | 6.3 to 25 mm |
| Hose outer diameter (per variant) | 11 to 34 mm |
| Min bending radius (per variant) | 23 to 88 mm |
| Type no. | WSS11X6,3, WSS13X8, WSS14,5X9, WSS15,5X10, WSS19X12,7, WSS23X16, WSS26,5X19, WSS34X25 |
| GPSR Herstellerdaten | Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Betriebsdruck max [bar] | 15 |
| Temperaturbereich | -20-60 °C |
| Temperature (max.) | 60 |
