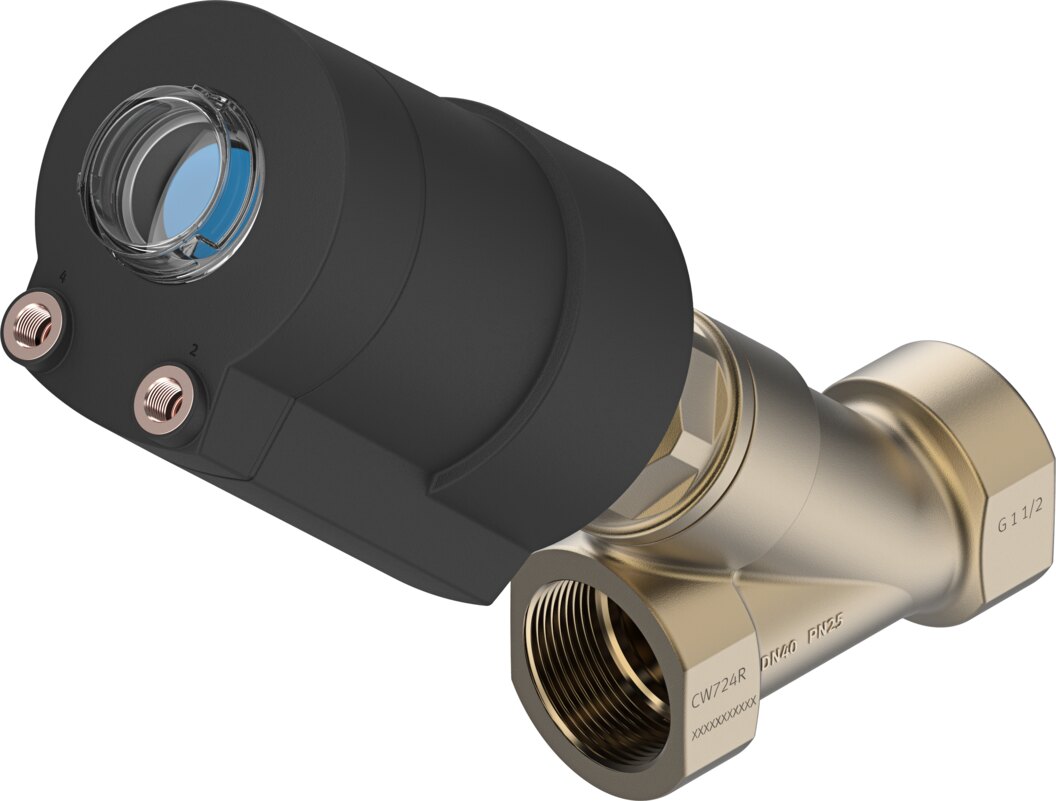

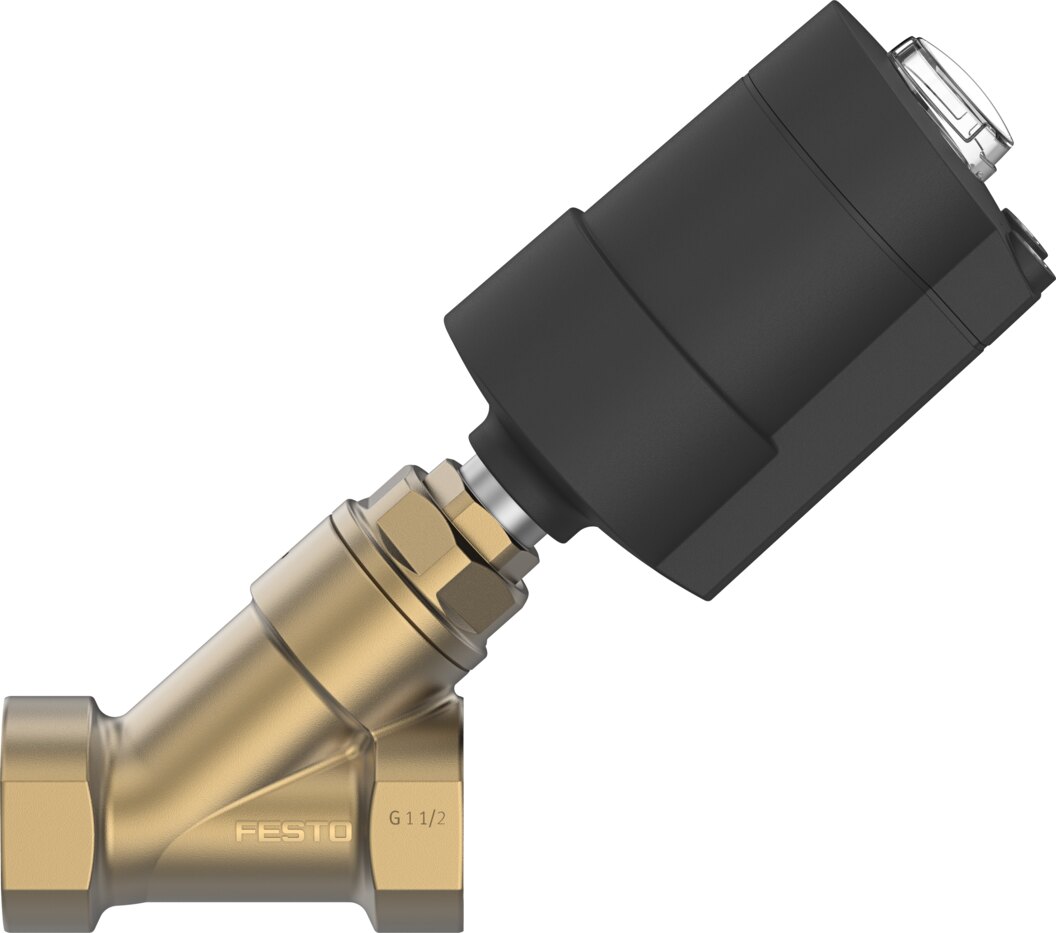

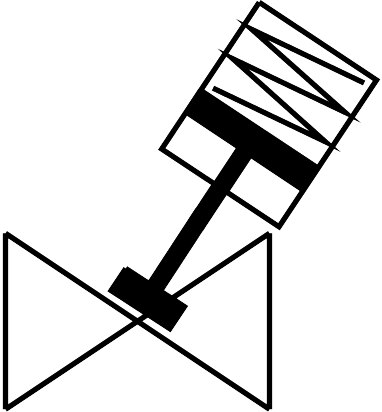

Angle seat valve G1 1/2 brass 2/2 NC up to 9.3 bar VZXA-B-TS6-40-M2-B1T-9.3-K-75-20-PM - Festo 8111596
The angle seat valve VZXA-B-TS6-40-M2-B1T-9.3-K-75-20-PM with piston drive opens and closes lines with G1 1/2 connection. Medium pressure 0 to 9.3 bar, Kv 32.9 m³/h, media from -10 to 180 °C. Control function: closed via spring force, N/C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The angle seat valve VZXA-B-TS6-40-M2-B1T-9.3-K-75-20-PM switches media up to 9.3 bar in on/off operation, the inclined seat keeps the flow path open. The Kv value is 32.9 m³/h.
Benefits
- Medium pressure 0 to 9.3 bar
- Flow rate Kv 32.9 m³/h
- Housing in brass CW724R
- Degree of protection IP65, IP67
- Actuator size 75 mm with 20 mm stroke
- Media temperature -10 to 180 °C
Applications
Suitable for vapour, mineral oil-based hydraulic fluid, inert gases, mineral oil, water, filtered compressed air, grade of filtration 200 µm, neutral fluids. Mounting position is freely selectable.
Technical data
| Feature | Value |
|---|---|
| Type | VZXA-B-TS6-40-M2-B1T-9.3-K-75-20-PM |
| Festo part number | 8111596 |
| Design | Poppet valve with piston drive |
| Type of actuation | Pneumatic |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Line connection | Threaded coupling G1 1/2 to DIN ISO 228 |
| Valve function | 2/2 |
| Flow direction | Non-reversible |
| Medium pressure | 0 to 9.3 bar |
| Type of reset | Mechanical spring |
| Type of piloting | Externally actuated |
| Pneumatic connection | Female thread G1/8 |
| Operating pressure | 5 to 7 bar |
| Medium | Vapour, Mineral oil-based hydraulic fluid, Inert gases, Mineral oil, Water, Filtered compressed air, grade of filtration 200 µm, Neutral fluids |
| Direction of flow | Below valve seat, for gaseous and liquid media |
| Control of medium | On/off operation |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Max. viscosity | 600 mm²/s |
| Media temperature | -10 to 180 °C |
| Ambient temperature | 0 to 60 °C |
| Flow rate Kv | 32.9 m³/h |
| Outdoor applications | Weather-protected application areas Class C1 based on IEC 60654-1 |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material process valve housing | Brass |
| Material number process valve housing | CW724R |
| Material seals | Fluoro rubber |
| Material spindle seal | PTFE |
| Material seat seal | PTFE |
| Product weight | 3777 g |
| CE mark (see declaration of conformity) | In accordance with EU Pressure Equipment Directive |
| UKCA marking (see declaration of conformity) | to UK Pressure Equipment Regulations |
| Size of drive | 75 mm |
| Stroke | 20 mm |
| Control function | Closed via spring force, N/C |
| Position detection | Via mechanical indicator |
| Material drive housing | Reinforced PA |
| Storage temperature | -10 to 60 °C |
| Degree of protection | IP65, IP67 |
| Material piston rod | High-alloy stainless steel |
| Material cover | Reinforced PA |
| Weight | 5 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VZXA-B-TS6-40-M2-B1T-9.3-K-75-20-PM |
| EAN | 4052568576691 |
| Zolltarifnummer | 84818073 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Brass |
| Thread | G 1 1/2 |
| Stroke [mm] | 20 |
| Seal material | FPM |
| Housing material | Brass |
| Function | 2/2 |
| Actuation type | pneumatic |
| Medientemperatur [°C] | -10 bis 180 |
| Series | VZXA |
