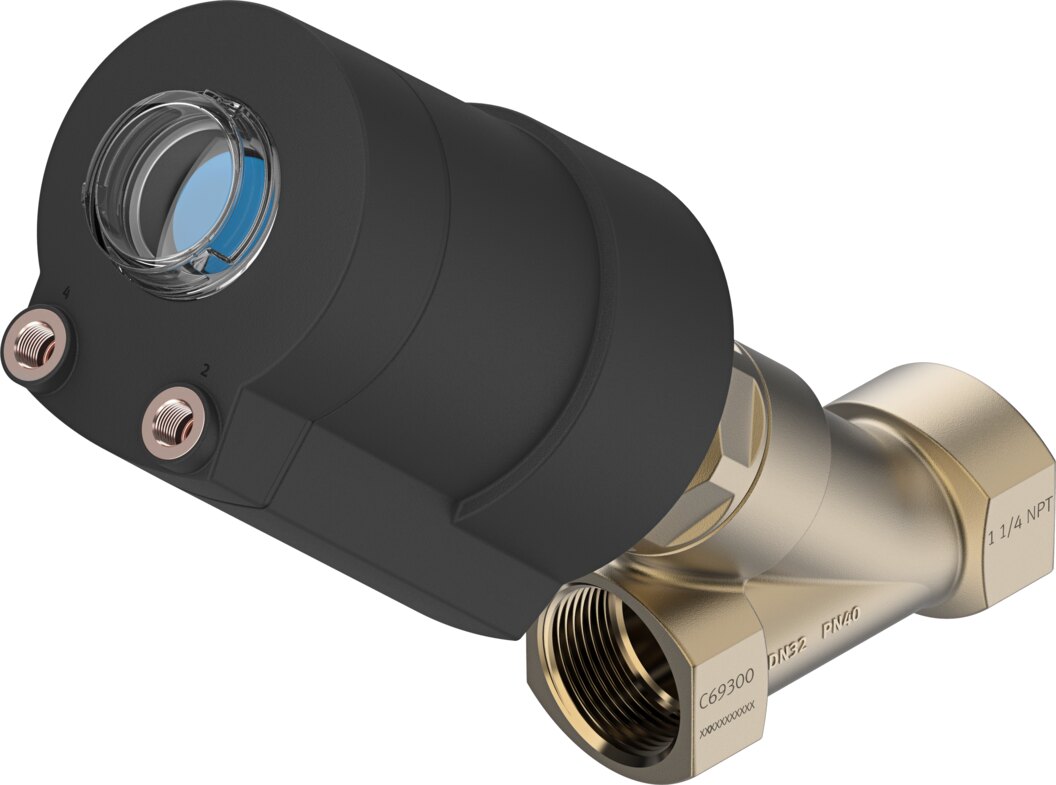

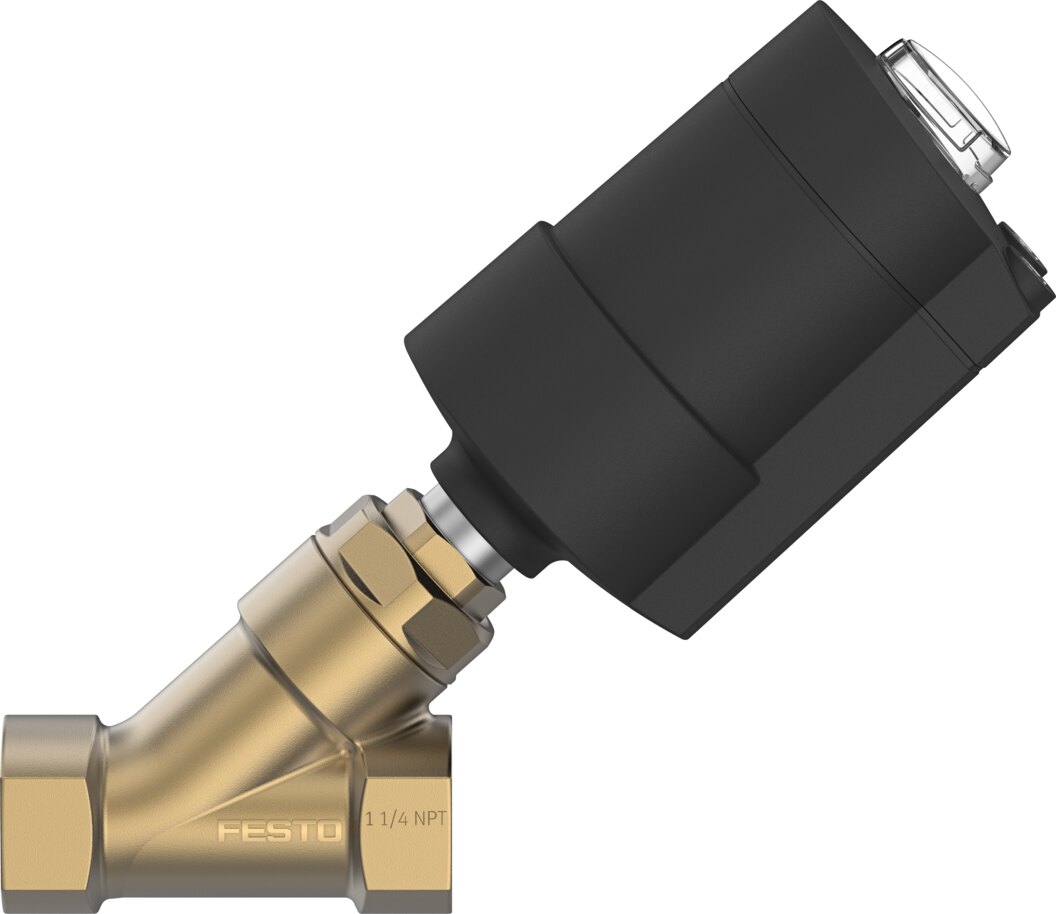

Angle seat valve VZXA-A-TS7-1 1/4"-M6-B1T-16-K-75-20-PR-PM - Festo 8111601
Net
excl. VAT
€402.52
Item
FES-8111601
Manufacturer no.
VZXA-A-TS7-1 1/4"-M6-B1T-16-K-75-20-PR-PM
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Design | Poppet valve with piston drive |
|---|---|
| Type of actuation | Pneumatic |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Line connection | Threaded coupling 1 1/4 NPT to ANSI/ASME B 1.20.1 |
| Valve function | 2/2 |
| Flow direction | Non-reversible |
| Medium pressure | 0 ... 16 bar |
| Type of reset | Mechanical spring |
| Type of piloting | Externally actuated |
| Pneumatic connection | Female thread G1/8 |
| Operating pressure | 5 ... 7 bar |
| Medium | Vapour, Inert gases, Filtered compressed air, grade of filtration 200 µm |
| Direction of flow | Above valve seat, for gaseous media |
| Control of medium | On/off operation |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Max. viscosity | 600 mm²/s |
| Media temperature | -10 ... 60 °C |
| Ambient temperature | 0 ... 60 °C |
| Flow rate Kv | 25.3 m³/h |
| Outdoor applications | Weather-protected application areas Class C1 based on IEC 60654-1 |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material process valve housing | Brass |
| Material number process valve housing | CW724R |
| Material seals | Fluoro rubber |
| Material spindle seal | PTFE |
| Material seat seal | PTFE |
| Product weight | 3001 g |
| Size of drive | 75 mm |
| Stroke | 20 mm |
| Control function | Closed via reduced spring force, N/C |
| Position detection | Via mechanical indicator |
| Material drive housing | Reinforced PA |
| Storage temperature | -10 ... 60 °C |
| Degree of protection | IP65, IP67 |
| Material piston rod | High-alloy stainless steel |
| Material cover | Reinforced PA |
| Weight | 4.4 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VZXA-A-TS7-1 1/4"-M6-B1T-16-K-75-20-PR-PM |
| EAN | 4052568576738 |
| Zolltarifnummer | 84818073 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
