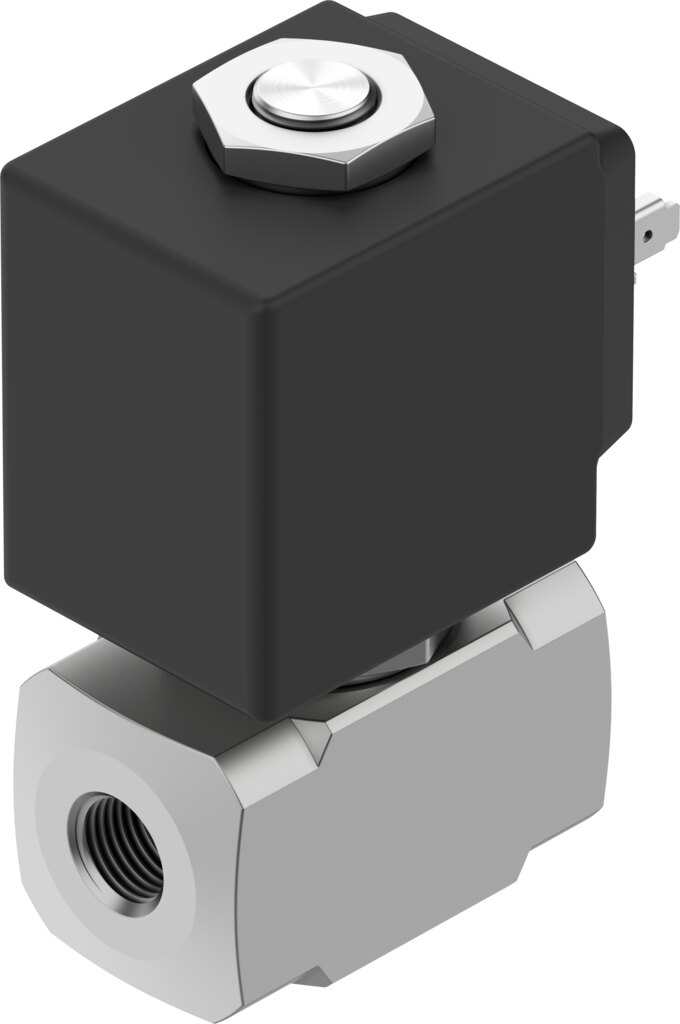

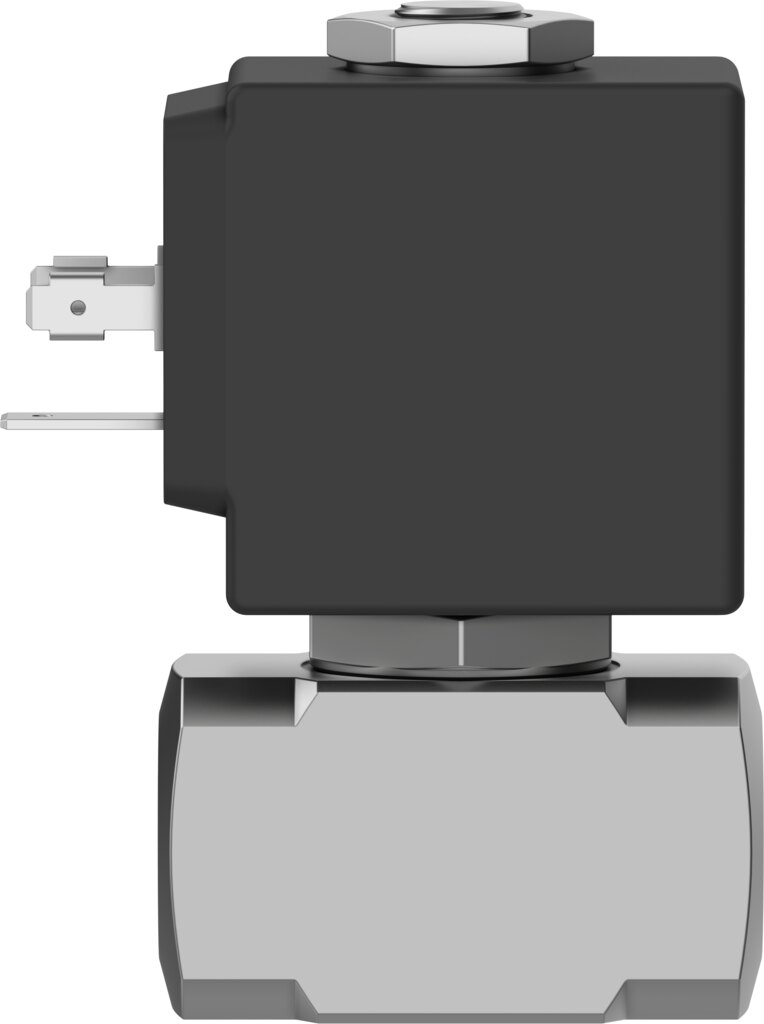

2/2-way solenoid valve NPT 1/8 DN 4 mm stainless steel 110 V AC VZWD-B-L-M22C-M-N18-40-V-30-2A-A1-8-R1 - Festo 8214511
Directly actuated 2/2-way poppet valve for media up to 8 bar and 140 °C that switches from 0 bar pressure difference. NPT 1/8 port, 4 mm nominal size, Kv 0.36 m³/h, 110 V AC coil with 100% duty cycle, stainless steel body.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 4 mm nominal size and a NPT 1/8 connection, the Festo solenoid valve VZWD-B-L-M22C-M-N18-40-V-30-2A-A1-8-R1 doses and shuts off liquid and gaseous media up to 8 bar. Direct actuation makes it independent of differential pressure, and the 110 V AC coil opens it in 8 ms.
Benefits
- Switches from 0 bar: directly actuated, no minimum pressure difference, medium pressure 0 to 8 bar
- Fast response: switching time 8 ms on, 25 ms off
- Continuous duty: 100% duty cycle, 110 V AC coil (20 VA pick-up, 15 VA holding), insulation class F
- Corrosion resistant: stainless steel 1.4305 body, corrosion resistance class CRC 3
- Easy installation: inline mounting in any position, plug to EN 175301-803, IP65
Applications
Typical applications include cooling and flushing circuits, lubrication and oil supply lines and gas lines in machines and test rigs. The NPT 1/8 connection screws directly into the line. The stainless steel body 1.4305 is recommended for humid or aggressive environments, for example on NPT 1/8 lines in wet areas.
Technical data
| Feature | Value |
|---|---|
| Order code | VZWD-B-L-M22C-M-N18-40-V-30-2A-A1-8-R1 |
| Part number | 8214511 |
| Design | Directly actuated poppet valve |
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Process valve connection | NPT 1/8 |
| Electrical connection | Plug, To EN 175301-803, Square design |
| Nominal size | 4 mm |
| Valve function | 2/2-way, single solenoid, closed |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gases, mineral oil, water, neutral fluids, other media on request |
| Pressure difference | 0 bar |
| Characteristic coil data | 110 V AC, 50/60 Hz, pick-up power 20 VA, holding power 15 VA |
| Insulation material class | F |
| Permissible voltage fluctuations | +15% / -10% |
| Duty cycle | 100% |
| Type of reset | Mechanical spring |
| Type of piloting | Direct |
| Medium pressure | 0 to 8 bar |
| Maximum viscosity | 25 mm²/s |
| Media temperature | -10 to 140 °C |
| Ambient temperature | -10 to 80 °C |
| Flow rate Kv | 0.36 m³/h |
| Switching time on | 8 ms |
| Switching time off | 25 ms |
| Note on materials | RoHS compliant |
| Material housing | High-alloy stainless steel |
| Material number housing | 1.4305 |
| Material seals | Fluoro rubber |
| CE mark (see declaration of conformity) | To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions, To UK regulations for electrical equipment |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 3 - High corrosion stress |
| Manufacturer | Festo |
| Hersteller-Nr | VZWD-B-L-M22C-M-N18-40-V-30-2A-A1-8-R1 |
| EAN | 4052568827304 |
| Zolltarifnummer | 84818073 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel |
| Thread | NPT 1/8 |
| Nominal size DN [mm] | 4 |
| Seal material | FPM |
| Function | 2/2 closed monostable |
| Actuation type | Electrical |
| Medientemperatur [°C] | -10 bis 140 |
| Norm | DIN EN 175301-803 |
| Operating voltage | 110 V AC |
| Series | VZWD |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | NPT 1/8 |
| Protection rating | IP65 |
| Temperature (max.) | 80 |
