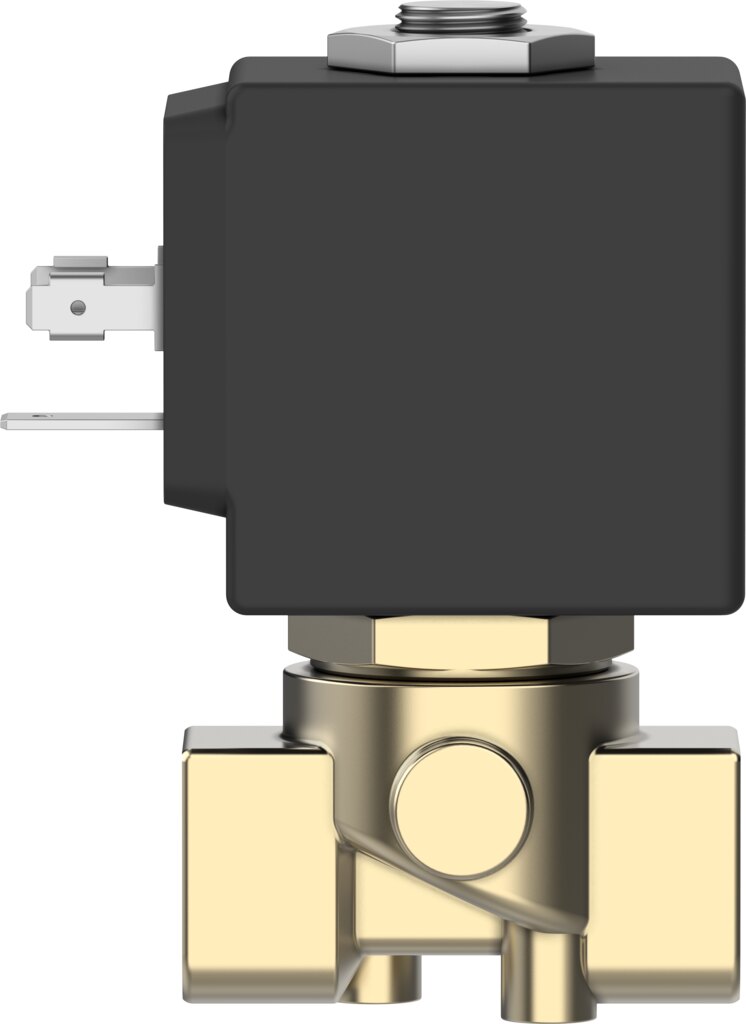

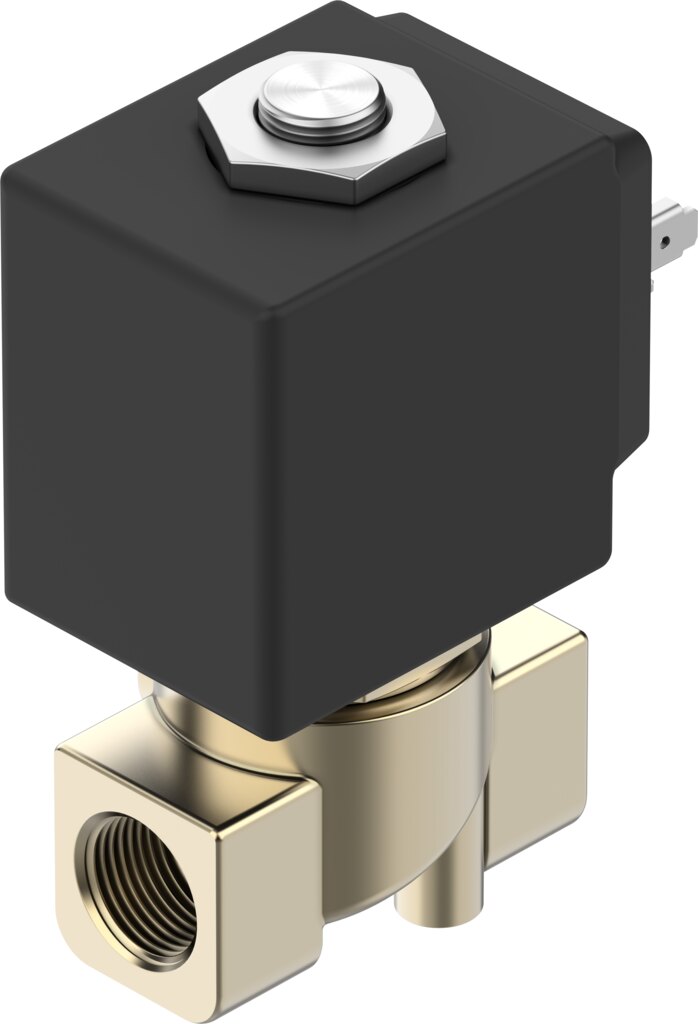

Solenoid valve VZWD-B-L-M22C-M-N14-40-V-36-1-A1-15 - Festo 8214609
Net
excl. VAT
€75.82
Item
FES-8214609
Manufacturer no.
VZWD-B-L-M22C-M-N14-40-V-36-1-A1-15
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Design | Directly actuated poppet valve |
|---|---|
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Connection Process valve | 1/4 NPT |
| Electrical connection | Plug, To EN 175301-803, Square design |
| Nominal size | 4 mm |
| Valve function | 2/2-way, single solenoid, closed |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Mineral oil, Water, Neutral fluids, Other media on request |
| Pressure difference | 0 bar |
| Characteristic coil data | 24 V DC: 27.0 W |
| Insulation material class | H |
| Permissible voltage fluctuations | +/-10% |
| Duty cycle | 100% |
| Type of reset | Mechanical spring |
| Type of piloting | Direct |
| Medium pressure | 0 ... 15 bar |
| Max. viscosity | 25 mm²/s |
| Media temperature | -10 ... 140 °C |
| Ambient temperature | -10 ... 80 °C |
| Flow rate Kv | 0.36 m³/h |
| Switching time on | 8 ms |
| Switching time off | 25 ms |
| Note on materials | RoHS compliant |
| Material housing | Brass |
| Material number housing | CW617N |
| Material seals | Fluoro rubber |
| Product weight | 380 g |
| CE mark (see declaration of conformity) | To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions, To UK regulations for electrical equipment |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Manufacturer | Festo |
| Hersteller-Nr | VZWD-B-L-M22C-M-N14-40-V-36-1-A1-15 |
| EAN | 4052568789374 |
| Zolltarifnummer | 84818079 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
