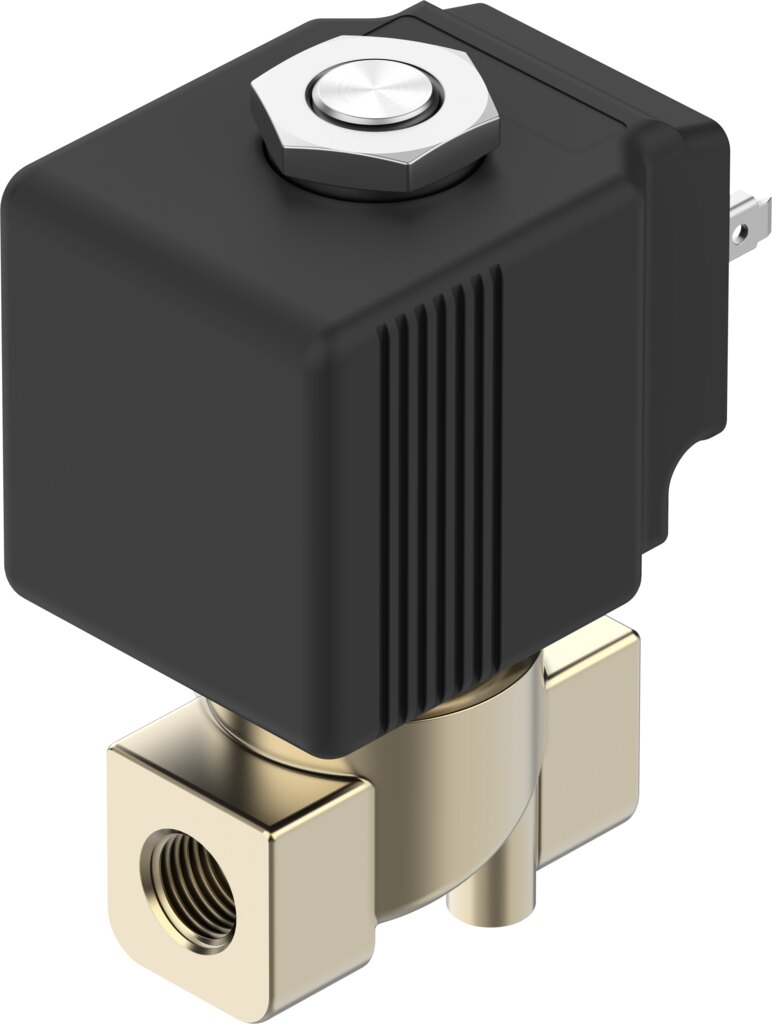

Solenoid valve 2/2-way NC G1/8 nominal size 2.5 mm up to 33 bar brass 24 V DC VZWD-B-L-M22C-M-G18-25-V-36-1-A1-33 - Festo 8214421
Direct-acting 2/2-way solenoid valve, normally closed, for media up to 33 bar and 140 °C. Kv 0.15 m³/h at 2.5 mm nominal size, housing material brass CW617N. It is actuated by a coil 24 V DC with 27 W.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The solenoid valve VZWD-B-L-M22C-M-G18-25-V-36-1-A1-33 opens and closes lines with G1/8 ports for pressures up to 33 bar. As a direct-acting poppet valve with 2.5 mm nominal size it needs no pilot pressure to switch, so it also works from 0 bar pressure differential.
Benefits
- Switches from 0 bar pressure differential, direct-acting without minimum pressure
- Medium pressure 0 to 33 bar
- Flow rate Kv 0.15 m³/h
- Housing in brass CW617N, corrosion resistance class CRC 1
- Switching times 8 ms on and 25 ms off
- Media temperature -10 to 140 °C, viscosity up to 25 mm²/s
Applications
The VZWD-B-L-M22C-M-G18-25-V-36-1-A1-33 is designed for compressed air, water, mineral oil and inert gases as well as neutral liquids up to 140 °C media temperature. Inline installation, any mounting position. Plug to EN 175301-803, square design. Ambient temperature -10 to 80 °C.
Technical data
| Feature | Value |
|---|---|
| Type | VZWD-B-L-M22C-M-G18-25-V-36-1-A1-33 |
| Festo part number | 8214421 |
| Design | Directly actuated poppet valve |
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Connection process valve | G1/8 |
| Electrical connection | Plug, to EN 175301-803, square design |
| Nominal size | 2.5 mm |
| Valve function | 2/2-way, single solenoid, closed |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gases, mineral oil, water, neutral fluids, other media on request |
| Pressure difference | 0 bar |
| Characteristic coil data | 24 V DC: 27 W |
| Insulation material class | H |
| Permissible voltage fluctuations | ± 10% |
| Duty cycle | 100% |
| Type of reset | Mechanical spring |
| Type of piloting | Direct |
| Medium pressure | 0 to 33 bar |
| Maximum viscosity | 25 mm²/s |
| Media temperature | -10 to 140 °C |
| Ambient temperature | -10 to 80 °C |
| Flow rate Kv | 0.15 m³/h |
| Switching time on | 8 ms |
| Switching time off | 25 ms |
| Note on materials | RoHS compliant |
| Material housing | Brass |
| Material number housing | CW617N |
| Material seals | FPM |
| CE mark (see declaration of conformity) | To EU EMC Directive, to EU Low Voltage Directive, in accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions, to UK regulations for electrical equipment |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| Weight (price list) | 0.4 kg |
| Weight | 0.4 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VZWD-B-L-M22C-M-G18-25-V-36-1-A1-33 |
| EAN | 4052568786694 |
| Zolltarifnummer | 84818079 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Brass |
| Thread | G 1/8 |
| Nominal size DN [mm] | 2,5 |
| Seal material | FPM |
| Housing material | Brass CW617N |
| Function | 2/2 closed monostable |
| Actuation type | Electrical |
| Medientemperatur [°C] | -10 bis 140 |
| Norm | DIN EN 175301-803 |
| Operating voltage | 24 V DC |
| Betriebsdruck max [bar] | 33 |
| Protection rating | IP65 |
