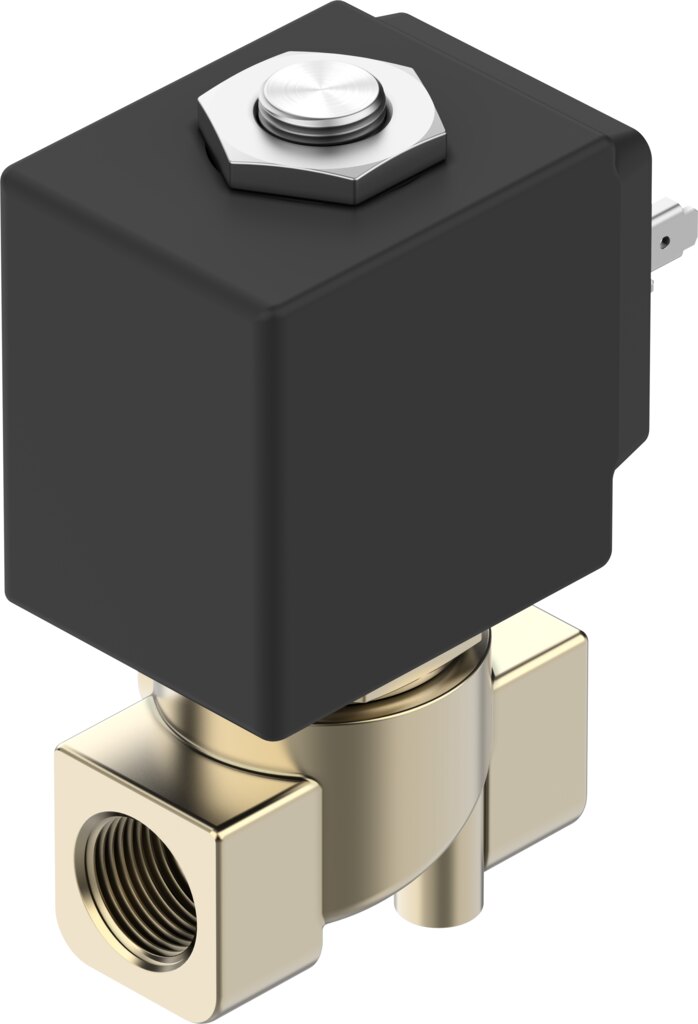

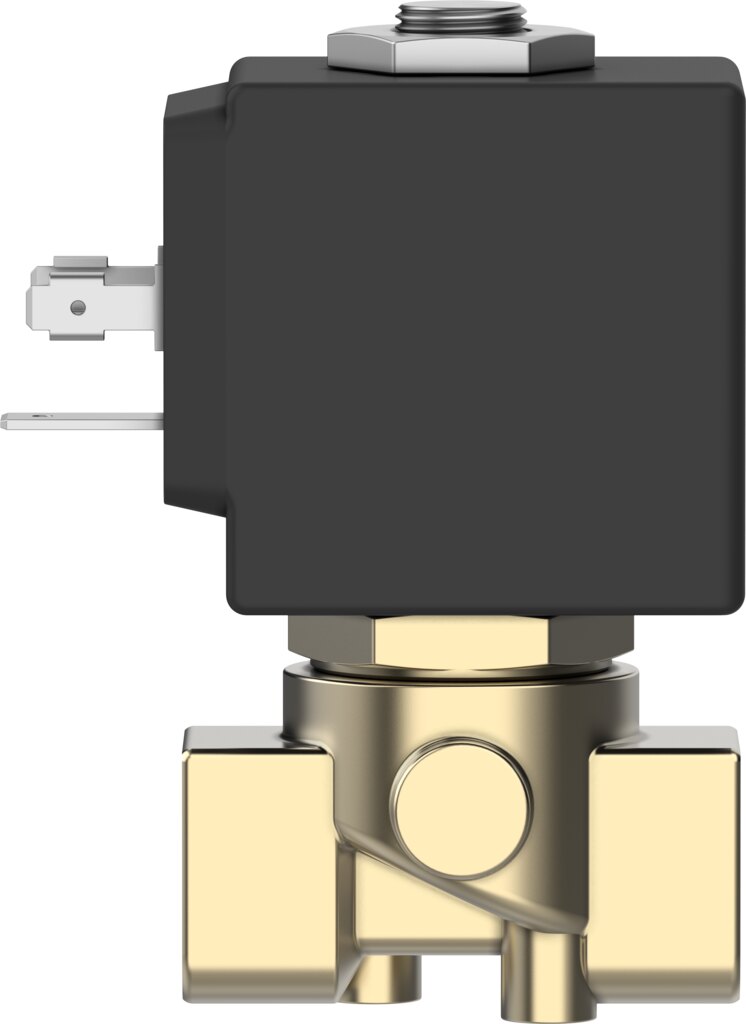

2/2-way solenoid valve G1/4 DN 4 mm brass 110 V AC VZWD-B-L-M22C-M-G14-40-V-30-2A-A1-8 - Festo 8214448

Festo ✓ Original product Brand new

Switches water, mineral oil, inert gases and compressed air directly up to 8 bar, with no minimum pressure difference. This VZWD with G1/4 and 4 mm nominal size reaches Kv 0.36 m³/h, 110 V AC coil rated for continuous duty, brass body.

Net
€75.82
excl. VAT
Item FES-8214448
Manufacturer no. VZWD-B-L-M22C-M-G14-40-V-30-2A-A1-8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 4 mm nominal size and a G1/4 connection, the Festo solenoid valve VZWD-B-L-M22C-M-G14-40-V-30-2A-A1-8 doses and shuts off liquid and gaseous media up to 8 bar. Direct actuation makes it independent of differential pressure, and the 110 V AC coil opens it in 8 ms.

Benefits

  • Fast response: switching time 8 ms on, 25 ms off
  • Hot media: media temperature -10 to 140 °C, FPM seals
  • Continuous duty: 100% duty cycle, 110 V AC coil (20 VA pick-up, 15 VA holding), insulation class F
  • Proven body: brass CW617N, CRC 1 for environments with low corrosion stress
  • Easy installation: inline mounting in any position, plug to EN 175301-803, IP65

Applications

The valve suits shut-off and dosing tasks with water, mineral oil, inert gases and compressed air, for example in cooling circuits, flushing processes or lubrication systems. It is installed directly in the pipe via its G1/4 port.

Technical data

FeatureValue
Order codeVZWD-B-L-M22C-M-G14-40-V-30-2A-A1-8
Part number8214448
DesignDirectly actuated poppet valve
Type of actuationElectrical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Process valve connectionG1/4
Electrical connectionPlug, To EN 175301-803, Square design
Nominal size4 mm
Valve function2/2-way, single solenoid, closed
Manual overrideNone
Flow directionNon-reversible
MediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gases, mineral oil, water, neutral fluids, other media on request
Pressure difference0 bar
Characteristic coil data110 V AC, 50/60 Hz, pick-up power 20 VA, holding power 15 VA
Insulation material classF
Permissible voltage fluctuations+15% / -10%
Duty cycle100%
Type of resetMechanical spring
Type of pilotingDirect
Medium pressure0 to 8 bar
Maximum viscosity25 mm²/s
Media temperature-10 to 140 °C
Ambient temperature-10 to 80 °C
Flow rate Kv0.36 m³/h
Switching time on8 ms
Switching time off25 ms
Note on materialsRoHS compliant
Material housingBrass
Material number housingCW617N
Material sealsFluoro rubber
CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Degree of protectionIP65
Corrosion resistance class CRC1 - Low corrosion stress
Weight0.3 kg
ManufacturerFesto
Hersteller-NrVZWD-B-L-M22C-M-G14-40-V-30-2A-A1-8
EAN4052568830281
Zolltarifnummer84818079
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialBrass
ThreadG 1/4
Nominal size DN [mm]4
Seal materialFPM
Function2/2 closed monostable
Actuation typeElectrical
Medientemperatur [°C]-10 bis 140
NormDIN EN 175301-803
Operating voltage110 V AC
SeriesVZWD
Betriebsdruck max [bar]8
Pneumatic connectionG1/4
Protection ratingIP65
Temperature (max.)80
