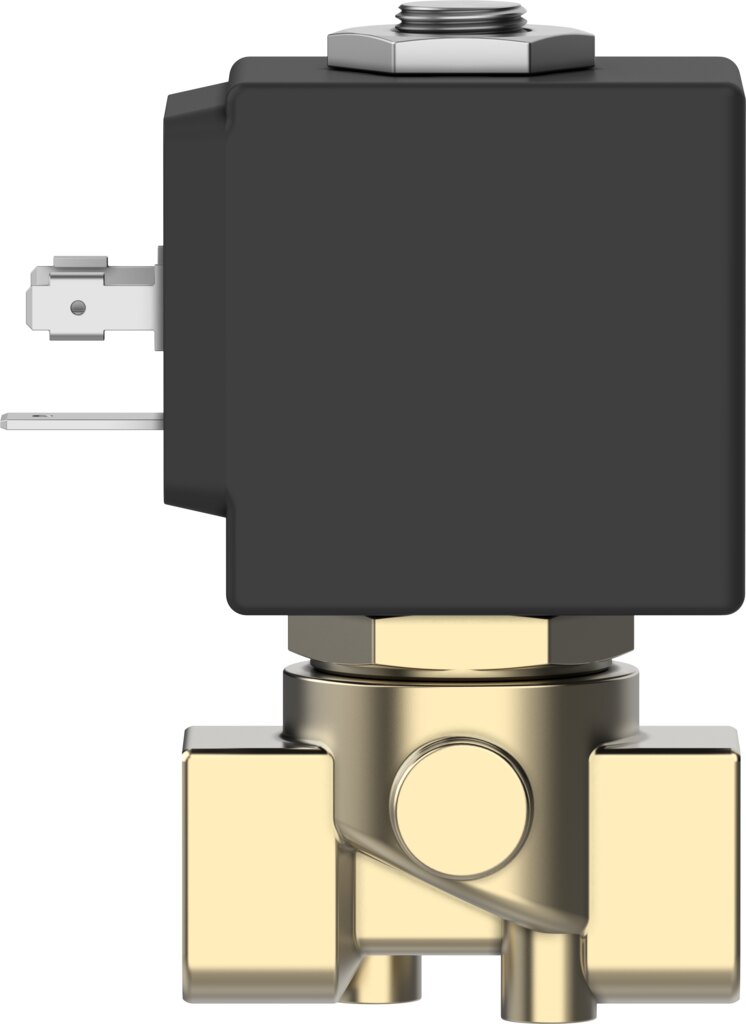

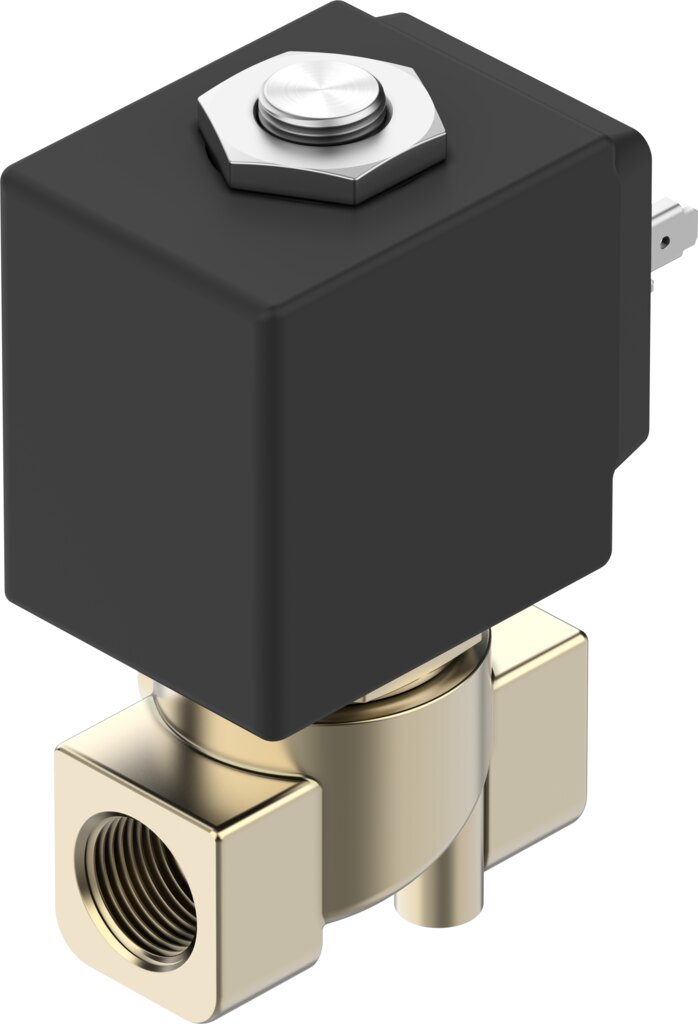

2/2-way solenoid valve G1/4 DN 1.5 mm brass 110 V AC VZWD-B-L-M22C-M-G14-15-V-30-2A-A1-30 - Festo 8214520
Normally closed solenoid valve that switches media up to 30 bar and 140 °C directly, regardless of differential pressure. With G1/4, 1.5 mm nominal size and Kv 0.07 m³/h, 110 V AC coil, brass body, IP65.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo solenoid valve VZWD-B-L-M22C-M-G14-15-V-30-2A-A1-30 is a directly actuated 2/2-way poppet valve, normally closed, for media up to 30 bar. Because the solenoid opens the seat directly, it works from 0 bar pressure difference, with a flow rate of Kv 0.07 m³/h.
Benefits
- Switches from 0 bar: directly actuated, no minimum pressure difference, medium pressure 0 to 30 bar
- Hot media: media temperature -10 to 140 °C, FPM seals
- Continuous duty: 100% duty cycle, 110 V AC coil (20 VA pick-up, 15 VA holding), insulation class F
- Proven body: brass CW617N, CRC 1 for environments with low corrosion stress
- Easy installation: inline mounting in any position, plug to EN 175301-803, IP65
Applications
The VZWD is used wherever small quantities of liquid or gaseous media must be released or shut off quickly, for example in test and dosing systems, cooling systems or gas supplies. The G1/4 port allows direct inline installation.
Technical data
| Feature | Value |
|---|---|
| Order code | VZWD-B-L-M22C-M-G14-15-V-30-2A-A1-30 |
| Part number | 8214520 |
| Design | Directly actuated poppet valve |
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Process valve connection | G1/4 |
| Electrical connection | Plug, To EN 175301-803, Square design |
| Nominal size | 1.5 mm |
| Valve function | 2/2-way, single solenoid, closed |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gases, mineral oil, water, neutral fluids, other media on request |
| Pressure difference | 0 bar |
| Characteristic coil data | 110 V AC, 50/60 Hz, pick-up power 20 VA, holding power 15 VA |
| Insulation material class | F |
| Permissible voltage fluctuations | +15% / -10% |
| Duty cycle | 100% |
| Type of reset | Mechanical spring |
| Type of piloting | Direct |
| Medium pressure | 0 to 30 bar |
| Maximum viscosity | 25 mm²/s |
| Media temperature | -10 to 140 °C |
| Ambient temperature | -10 to 80 °C |
| Flow rate Kv | 0.07 m³/h |
| Switching time on | 8 ms |
| Switching time off | 25 ms |
| Note on materials | RoHS compliant |
| Material housing | Brass |
| Material number housing | CW617N |
| Material seals | Fluoro rubber |
| CE mark (see declaration of conformity) | To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions, To UK regulations for electrical equipment |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Manufacturer | Festo |
| Hersteller-Nr | VZWD-B-L-M22C-M-G14-15-V-30-2A-A1-30 |
| EAN | 4052568788483 |
| Zolltarifnummer | 84818079 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Brass |
| Thread | G 1/4 |
| Nominal size DN [mm] | 1,5 |
| Seal material | FPM |
| Function | 2/2 closed monostable |
| Actuation type | Electrical |
| Medientemperatur [°C] | -10 bis 140 |
| Norm | DIN EN 175301-803 |
| Operating voltage | 110 V AC |
| Series | VZWD |
| Betriebsdruck max [bar] | 30 |
| Pneumatic connection | G1/4 |
| Protection rating | IP65 |
| Temperature (max.) | 80 |
