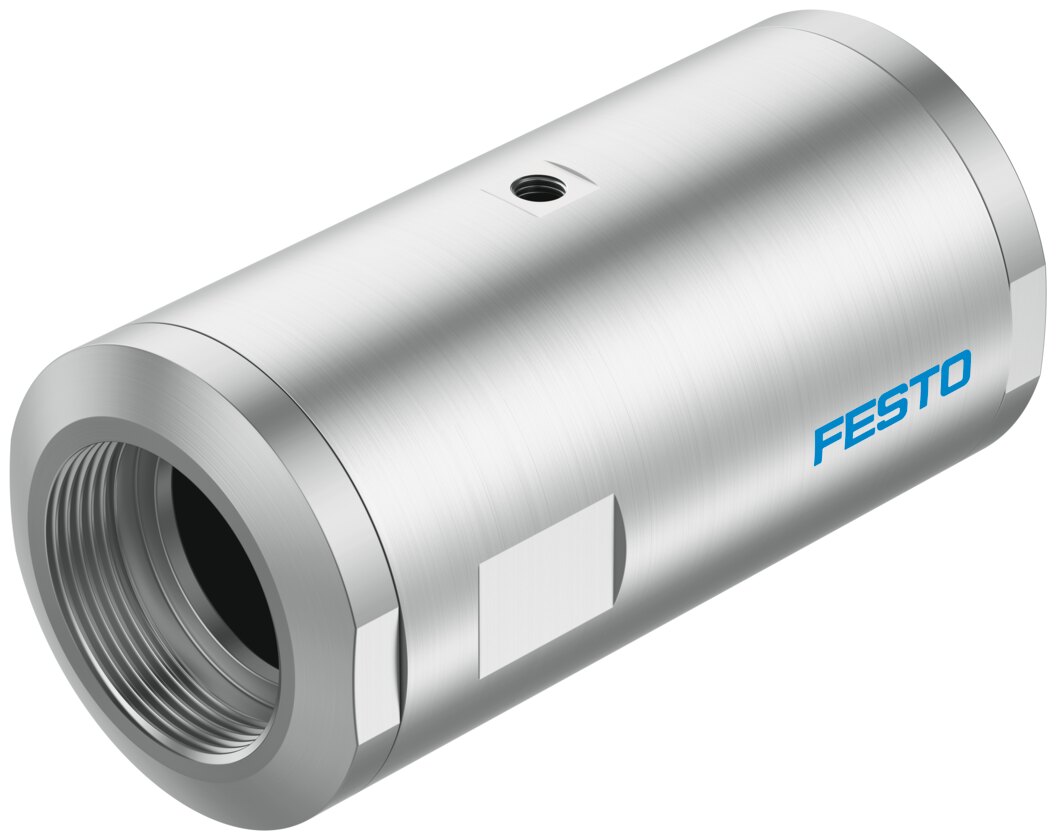

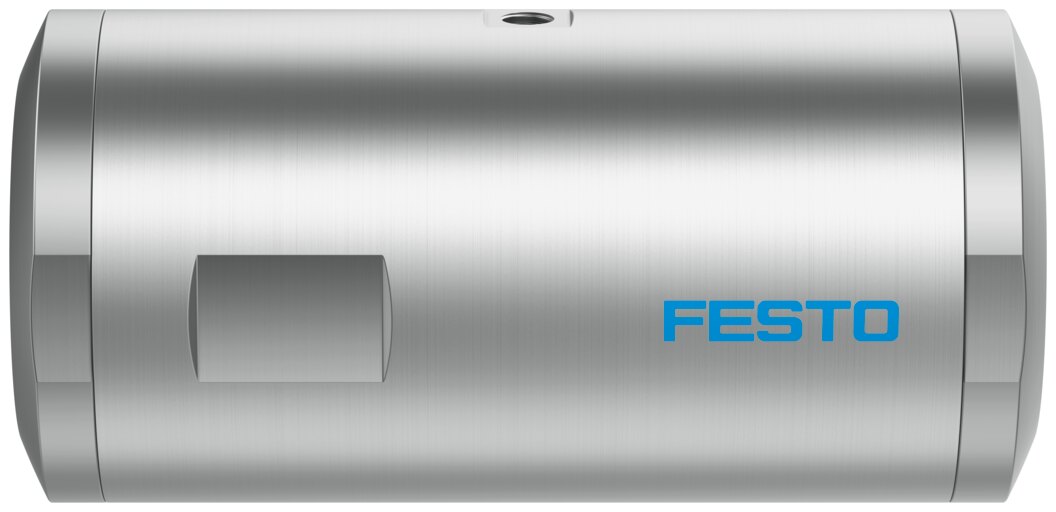

Pinch valve VZQA-C-M22U-50-TT-ALALE-2 - Festo 8161477
Net
excl. VAT
€715.07
Item
FES-8161477
Manufacturer no.
VZQA-C-M22U-50-TT-ALALE-2
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Design | Pinch valve, pneumatically actuated |
|---|---|
| Type of actuation | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Connection Process valve | 2 NPT |
| Nominal size DN | 50 |
| Valve function | 2/2-way, single solenoid, open |
| Flow direction | Reversible |
| Medium pressure | 0 ... 2 bar |
| Note on the medium pressure | Use in the vacuum range was tested up to -0.09 MPa with the air at room temperature. Depending on the application, a counter-vacuum may have to be created on the control side to guarantee the media flow. |
| Operating pressure | 0 ... 4.5 bar |
| Nominal pressure PN | 10 |
| Differential pressure | 2.5 bar |
| Burst pressure | 16 bar |
| Overload pressure | 7.8 bar |
| Type of reset | Rebound resilience |
| Type of piloting | Externally actuated |
| Auxiliary pilot air port 12 | G1/8 |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:1] |
| Medium | Compressed air to ISO 8573-1:2010 [-:-:1], Water |
| Max. viscosity | 4000 mm²/s |
| Media temperature | -5 ... 100 °C |
| Ambient temperature | -5 ... 60 °C |
| Storage temperature | 5 ... 20 °C |
| Flow rate Kv | 72 m³/h |
| Switching time on | 200 ms |
| Switching time off | 1000 ms |
| Note on materials | RoHS compliant |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Material housing | Wrought aluminium alloy |
| Material housing cover | Wrought aluminium alloy |
| Material seals | VMQ |
| Material shut-off element | EPDM |
| Product weight | 1302 g |
| Suitable for use with food | See supplementary material information |
| Material bowl | Die-cast aluminium |
| Manufacturer | Festo |
| Hersteller-Nr | VZQA-C-M22U-50-TT-ALALE-2 |
| EAN | 4052568611378 |
| Zolltarifnummer | 84818079 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
