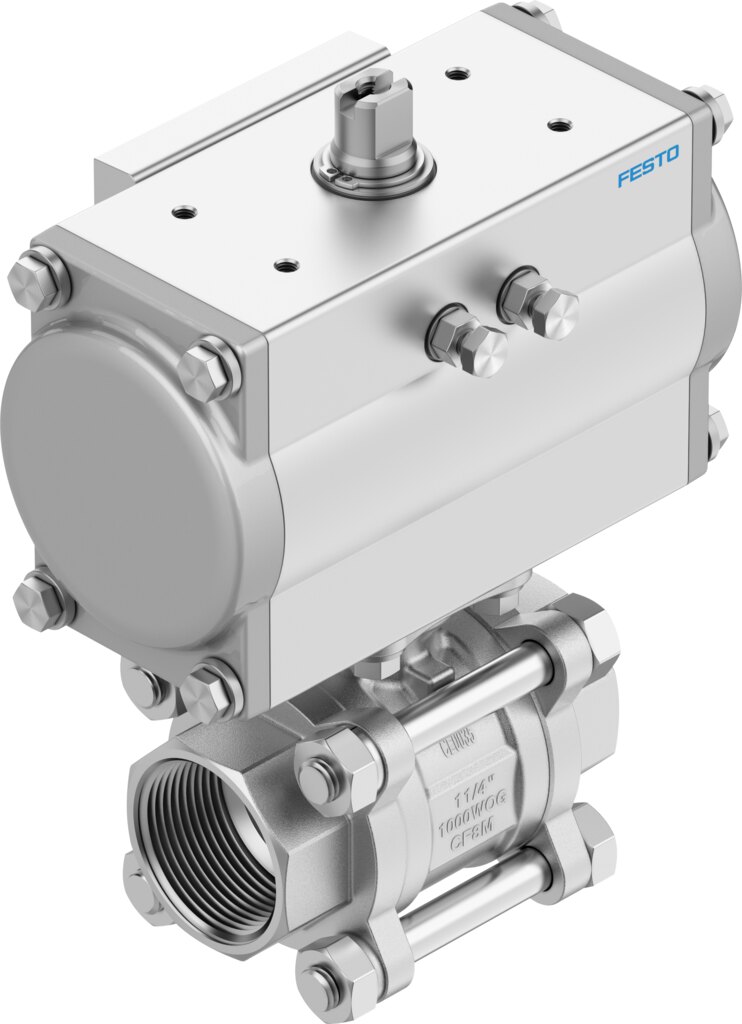

Ball valve unit VZBE-A-11/2-T-63-T-2-F0507-V15V15-PA40 - Festo 8191901
Item FES-8191901
€412.32
Images are examples, some edited with AI. The technical data are authoritative. AI notice

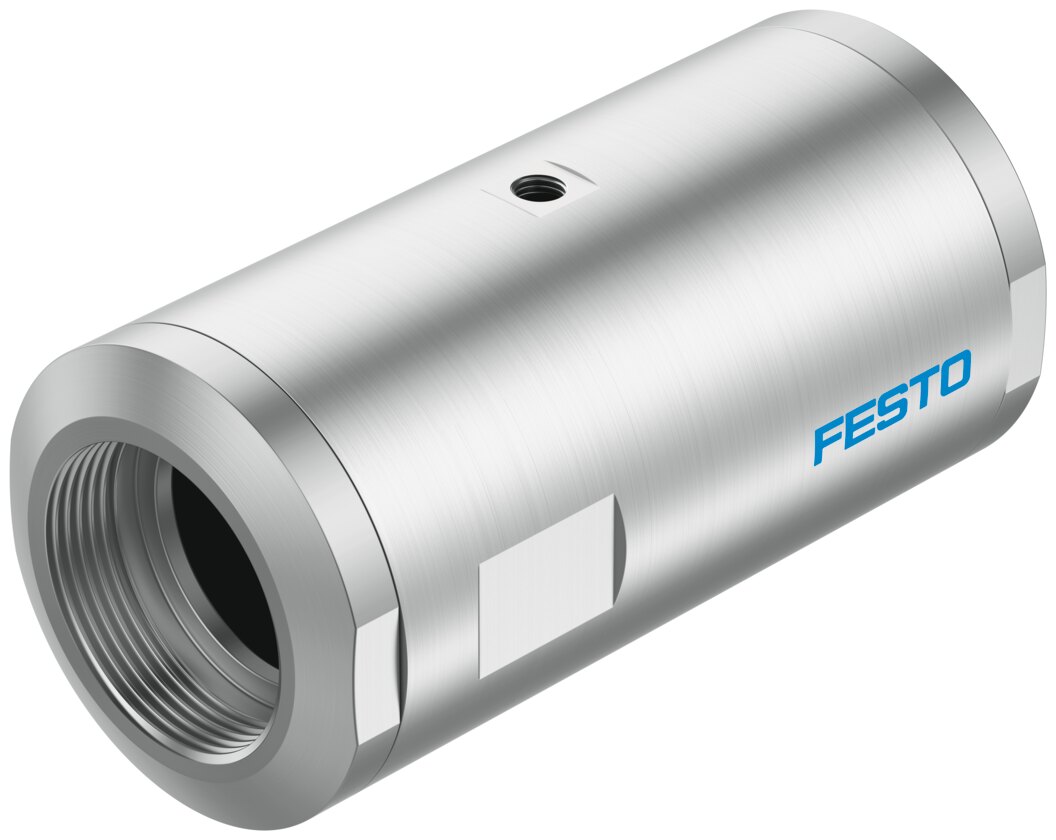

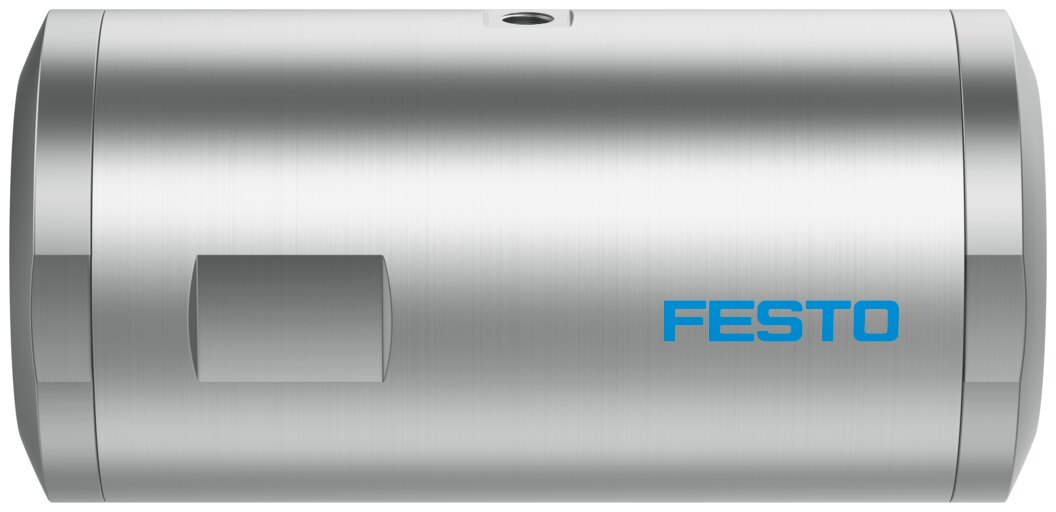

Pinch valve VZQA-C-M22U-50-GG-ALALE-2 - Festo 8161473
Net
excl. VAT
€579.00
Item
FES-8161473
Manufacturer no.
VZQA-C-M22U-50-GG-ALALE-2
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data

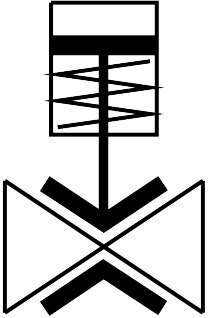

| Design | Pinch valve, pneumatically actuated |
|---|---|
| Type of actuation | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Connection Process valve | G2 |
| Nominal size DN | 50 |
| Valve function | 2/2-way, single solenoid, open |
| Flow direction | Reversible |
| Medium pressure | 0 ... 2 bar |
| Note on the medium pressure | Use in the vacuum range was tested up to -0.09 MPa with the air at room temperature. Depending on the application, a counter-vacuum may have to be created on the control side to guarantee the media flow. |
| Operating pressure | 0 ... 4.5 bar |
| Nominal pressure PN | 10 |
| Differential pressure | 2.5 bar |
| Burst pressure | 16 bar |
| Overload pressure | 7.8 bar |
| Type of reset | Rebound resilience |
| Type of piloting | Externally actuated |
| Auxiliary pilot air port 12 | G1/8 |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:1] |
| Medium | Compressed air to ISO 8573-1:2010 [-:-:1], Water |
| Max. viscosity | 4000 mm²/s |
| Media temperature | -5 ... 100 °C |
| Ambient temperature | -5 ... 60 °C |
| Storage temperature | 5 ... 20 °C |
| Flow rate Kv | 72 m³/h |
| Switching time on | 200 ms |
| Switching time off | 1000 ms |
| Note on materials | RoHS compliant |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Material housing | Wrought aluminium alloy |
| Material housing cover | Wrought aluminium alloy |
| Material seals | VMQ |
| Material shut-off element | EPDM |
| Product weight | 1302 g |
| Suitable for use with food | See supplementary material information |
| Material bowl | Die-cast aluminium |
| Weight | 1.5 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VZQA-C-M22U-50-GG-ALALE-2 |
| EAN | 4052568611330 |
| Zolltarifnummer | 84818079 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
Customers Who Bought This Item Also Bought
Festo

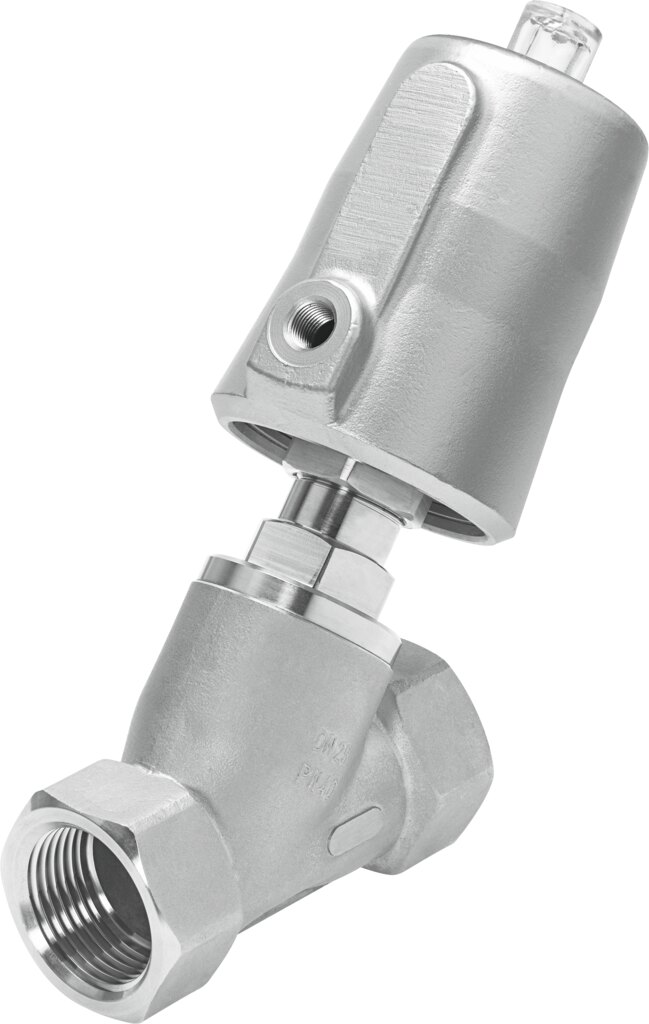

Angle seat valve VZXF-L-M22C-M-A-G112-350-M1-V4B2T-50-7 - Festo 3539926
