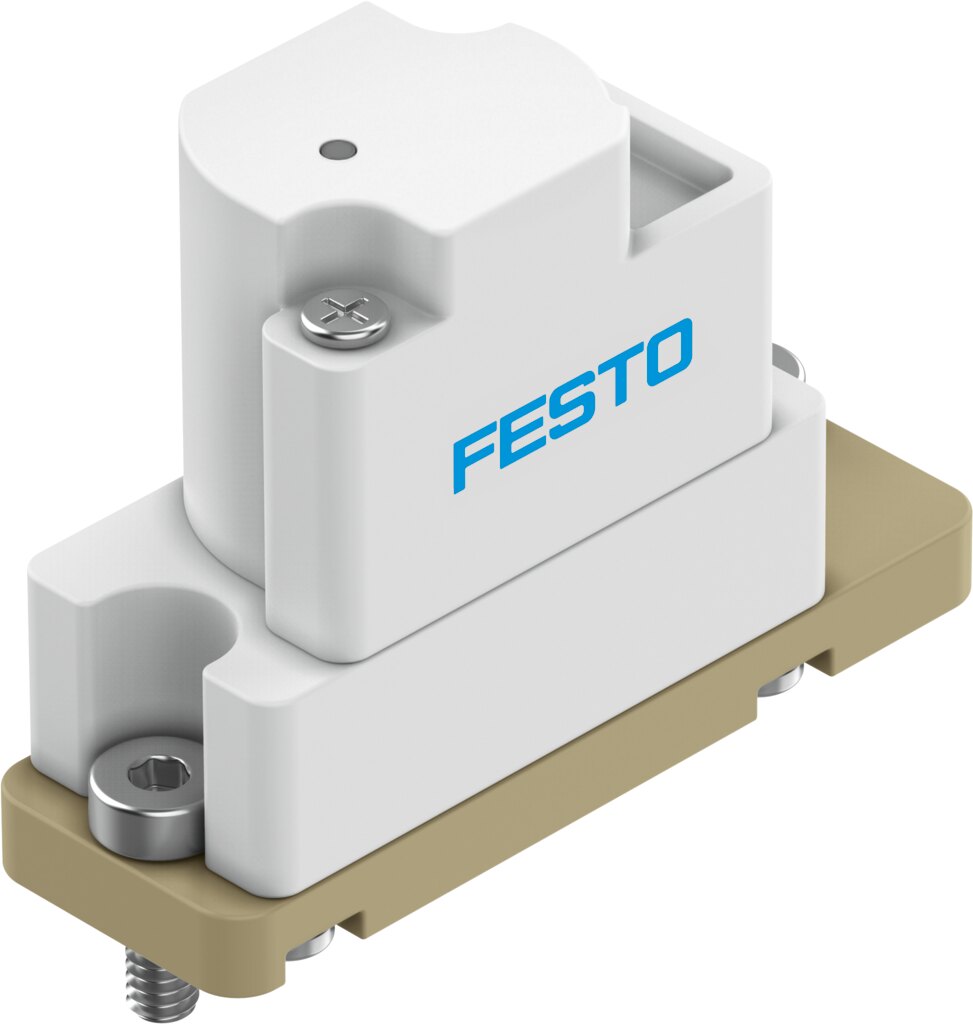

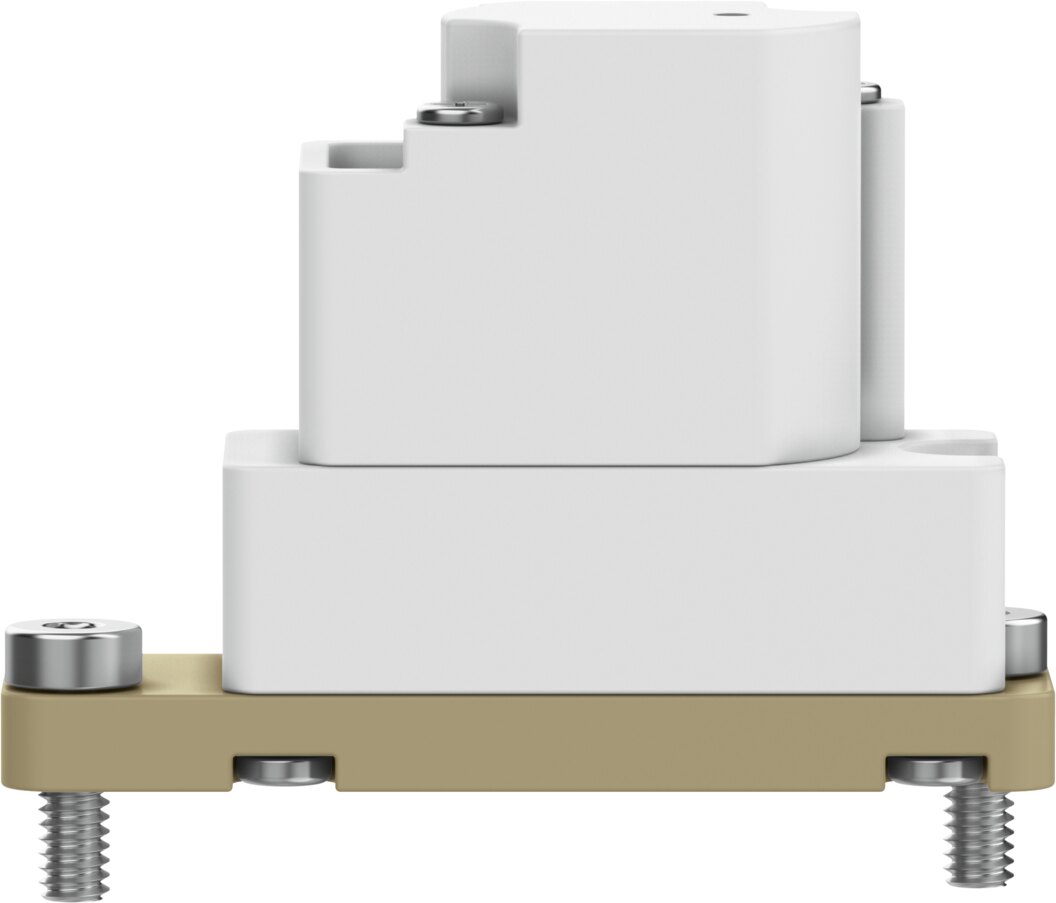

Media separated rocker valve 3/2 NC/NO nominal size 1.6 mm PEEK FFPM VZDB-F10-M32-16-M3-PF - Festo 8122800

Festo ✓ Original product Brand new

Reliable separation of the smallest media volumes: in the rocker valve VZDB-F10-M32-16-M3-PF an FFPM diaphragm seal keeps the medium away from the actuator. Nominal size 1.6 mm, valve function 3/2-way, monostable, open/closed, housing in PEEK. Pilot pressure 1.5 to 3 bar, media from 0 to 50 °C.

Net
€152.88
excl. VAT
Item FES-8122800
Manufacturer no. VZDB-F10-M32-16-M3-PF
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

In the media separated rocker valve VZDB-F10-M32-16-M3-PF, an FFPM diaphragm seal separates the medium from the actuator, internal volume is 35 µl.

Benefits

  • Internal volume only 35 µl
  • Flow rate Kv 0.034 m³/h
  • Switching frequency up to 2 Hz
  • Housing in PEEK
  • Media temperature 0 to 50 °C
  • Pilot pressure 1.5 to 3 bar

Applications

Operating media: liquid media, Gaseous media, maximum particle size 5 µm. Any mounting position.

Technical data

FeatureValue
TypeVZDB-F10-M32-16-M3-PF
Festo part number8122800
DesignRocker valve with diaphragm seal
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingVia through-hole for M2 screw
Connection Process valveMale thread/male thread
Size10
Nominal size1.6 mm
Valve function3/2-way, monostable, open/closed
Manual overrideNone
Flow directionNon-reversible
Operating pressure-0.75 to 1 bar
Exhaust-air functionCan be throttled
Type of resetMechanical spring
Type of pilotingPiloted
Pilot air port 21M3
Fluid connectionFlange
Pilot pressure1.5 to 3 bar
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:1]
Operating mediumLiquid media, Gaseous media
Note on operating and pilot mediumMaximum particle size 5 µm
Internal volume35 µl
Media temperature0 to 50 °C
Ambient temperature0 to 50 °C
Storage temperature-20 to 70 °C
Flow rate Kv0.034 m³/h
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingPEEK
Material sealsFFPM
Product weight7 g
Corrosion resistance class CRC0 - No corrosion stress
Max. switching frequency2 Hz
Weight0.012 kg
ManufacturerFesto
Hersteller-NrVZDB-F10-M32-16-M3-PF
EAN4052568556655
Zolltarifnummer84818087
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Seal materialFFKM
Function3/2 open/closed monostable
Actuation typepneumatic
Medientemperatur [°C]0 bis 50
Pneumatic connectionM3
