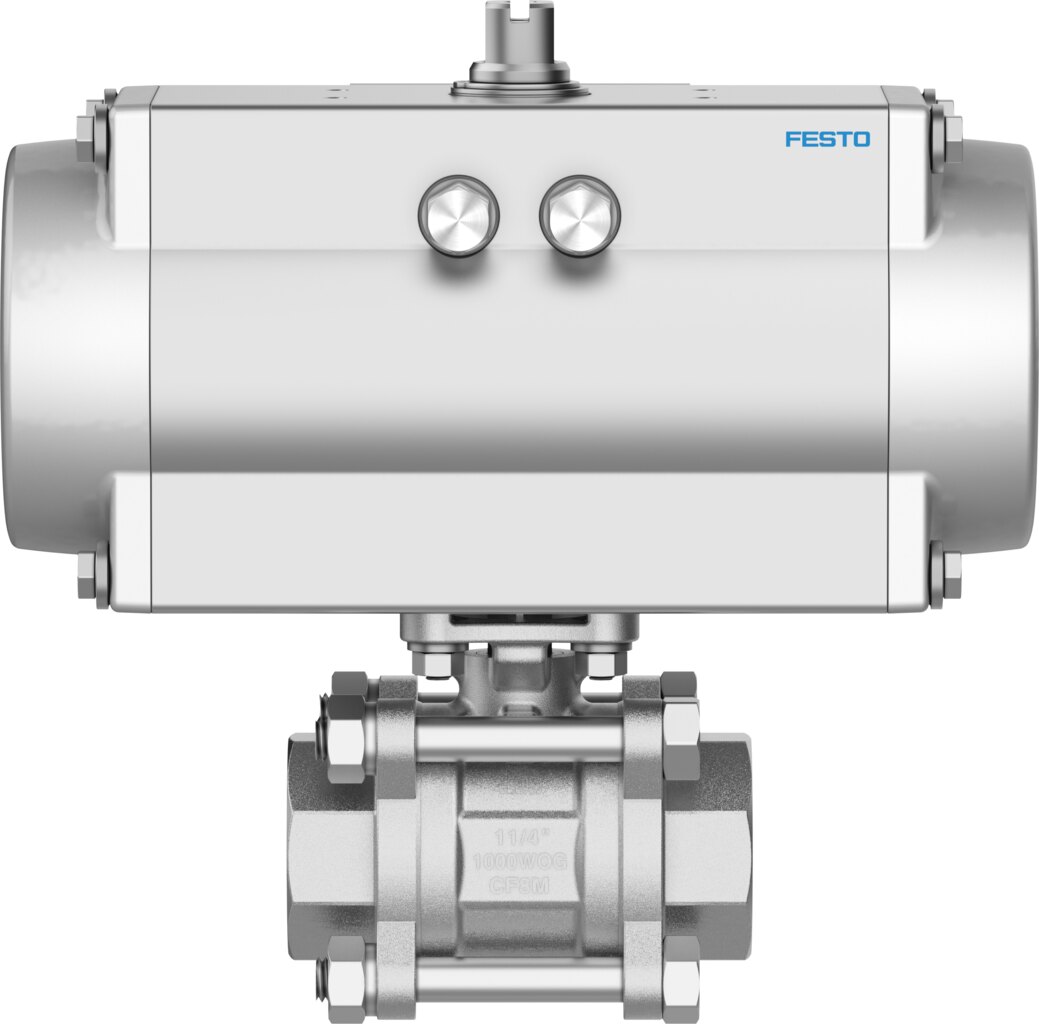

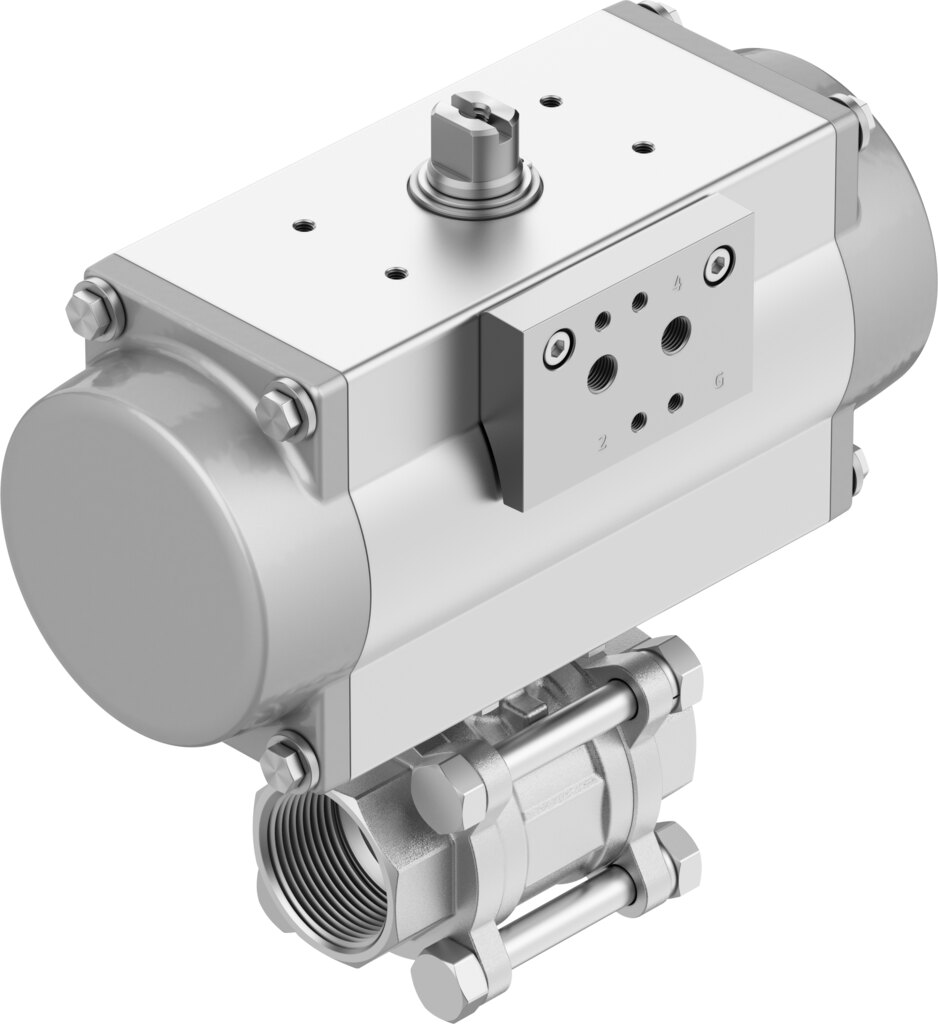

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Ball valve unit with quarter turn actuator stainless steel 1/4 NPT DN 8 PN 63 VZBE-A-1/4-T-63-T-2-F0304-V15V15-PB20 - Festo 8191906

Festo ✓ Original product Brand new

Ball valve unit VZBE-A-1/4-T-63-T-2-F0304-V15V15-PB20 with pneumatic quarter turn actuator for DN 8 lines up to PN 63, mounted and ready for use. Connection 1/4 NPT, housing in cast stainless steel, Kv 19 m³/h. Actuator for operating pressure 5.5 to 8 bar.

Net
€267.44
excl. VAT
Item FES-8191906
Manufacturer no. VZBE-A-1/4-T-63-T-2-F0304-V15V15-PB20
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The ball valve unit VZBE-A-1/4-T-63-T-2-F0304-V15V15-PB20 brings ball valve and pneumatic quarter turn actuator as a mounted unit into DN 8 lines up to PN 63. The Kv value is 19 m³/h.

Benefits

  • Kv value 19 m³/h in DN 8
  • Valve rated for nominal pressure PN 63
  • Quarter turn actuator for operating pressure 5.5 to 8 bar
  • Actuator interface F0304 to ISO 5211
  • Housing and ball in cast stainless steel 1.4408
  • Media temperature -10 to 200 °C

Applications

Approved media: compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water - no steam, neutral fluids, other media on request. Mounting position is freely selectable. For potentially explosive areas in zones 1, 2, 21 and 22 (ATEX).

Technical data

FeatureValue
TypeVZBE-A-1/4-T-63-T-2-F0304-V15V15-PB20
Festo part number8191906
DesignQuarter turn actuator
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valve1/4 NPT
Switching position indicatorSlot direction = flow direction
Flange hole patternF0304
Nominal size DN8
Valve function2/2
Flow directionReversible
Operating pressure5.5 to 8 bar
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN7 Nm
Based on standardISO 5211
MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water - no steam, Neutral fluids, Other media on request
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Media temperature-10 to 200 °C
Flow rate Kv19 m³/h
Max. surface temperature assembly+105°C...+280°C, T4...T2
explosion group assemblyIIC, IIIC
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1.4408
Material seat sealPTFE
Material sealsFluoro rubber, PTFE
Material ballCast stainless steel
Material number ball1.4408
Material shaftHigh-alloy stainless steel
Product weight1930 g
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Explosion ambient temperature-10°C <= Ta <= +80°C
Corrosion resistance class CRC1 - Low corrosion stress
ManufacturerFesto
Hersteller-NrVZBE-A-1/4-T-63-T-2-F0304-V15V15-PB20
EAN4052568715670
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4408
ThreadNPT 1/4
Nominal size DN [mm]8
Nominal pressure PN [bar]63
Seal materialFKM, PTFE
Housing materialStainless steel 1.4408
Function2/2
Actuation typepneumatic
Medientemperatur [°C]-10 bis 200
NormISO 5211
SeriesVZBE
