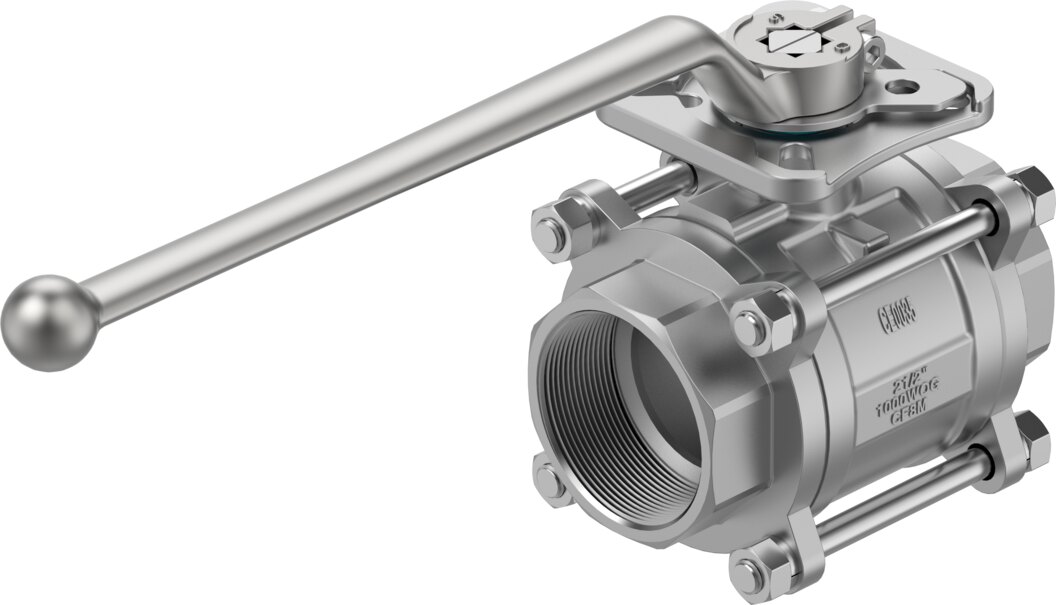

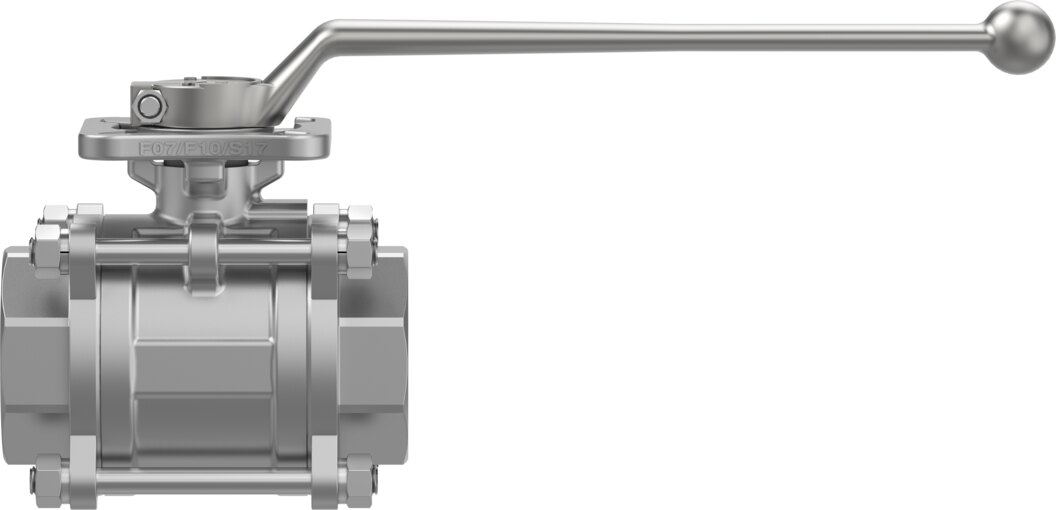

2-way ball valve stainless steel 2 1/2 NPT DN 65 PN 63 VZBE-21/2-T-63-T-2-F0710-M-V15V16 - Festo 8096671

Festo ✓ Original product Brand new

The 2-way ball valve VZBE-21/2-T-63-T-2-F0710-M-V15V16 for DN 65 lines is rated for nominal pressure PN 63 and comes with connection 2 1/2 NPT. It accepts a quarter turn actuator via the F0710 flange pattern to ISO 5211, flow rate is Kv 181.9 m³/h. Media from -20 to 200 °C.

Net
€541.68
excl. VAT
Item FES-8096671
Manufacturer no. VZBE-21/2-T-63-T-2-F0710-M-V15V16
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For process lines DN 65 up to PN 63, the 2-way ball valve VZBE-21/2-T-63-T-2-F0710-M-V15V16 provides shut-off with 2 1/2 NPT connection and ISO 5211 flange. Flow rate is Kv 181.9 m³/h.

Benefits at a glance

  • Flow rate Kv 181.9 m³/h at nominal size DN 65
  • Valve rated for nominal pressure PN 63
  • Housing in cast stainless steel 1.4408
  • Media temperature -20 to 200 °C
  • Flange pattern F0710 to ISO 5211, quarter turn actuator mounts directly
  • Breakaway torque 55 Nm at nominal pressure as basis for actuator sizing

Applications

Suitable for vapour, compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water, neutral fluids. Mounting position is freely selectable. For potentially explosive areas in zones 1, 2, 21 and 22 (ATEX). For automation, size the quarter turn actuator according to the breakaway torque.

Technical data

FeatureValue
TypeVZBE-21/2-T-63-T-2-F0710-M-V15V16
Festo part number8096671
Design2-way ball valve
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valve2 1/2 NPT
Switching position indicatorSlot direction = flow direction
Flange hole patternF0710
Inside diameter63 mm
Nominal size DN65
Valve function2/2
Flow directionReversible
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN55 Nm
Based on standardISO 5211
MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids
Media temperature-20 to 200 °C
Flow rate Kv181.9 m³/h
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1.4408
Material seat sealPTFE, modified
Material sealsFluoro rubber, PTFE
Material ballHigh-alloy stainless steel
Material number ball1.4401
Material shaftHigh-alloy stainless steel
Material number shaft1.4401
Product weight5900 g
ApprovalCRN
CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC4 - Very high corrosion stress
ManufacturerFesto
Hersteller-NrVZBE-21/2-T-63-T-2-F0710-M-V15V16
EAN4052568453428
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4408
ThreadNPT 2 1/2
Nominal size DN [mm]65
Nominal pressure PN [bar]63
Seal materialFKM, PTFE
Housing materialStainless steel 1.4408
Function2/2
Actuation typeMechanical
Medientemperatur [°C]-20 bis 200
NormISO 5211
SeriesVZBE
