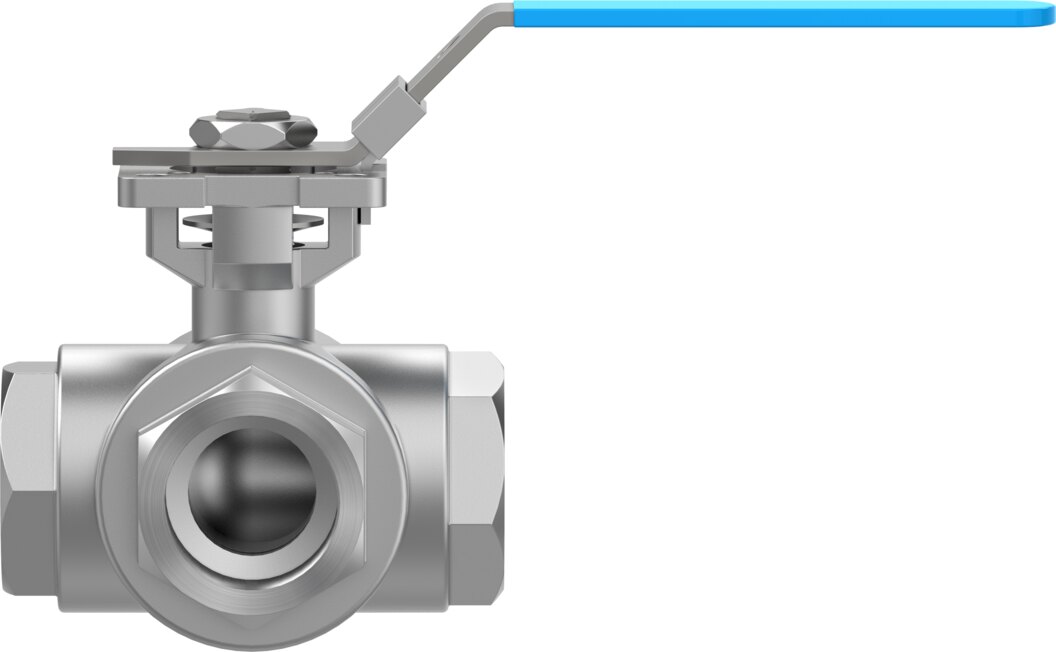

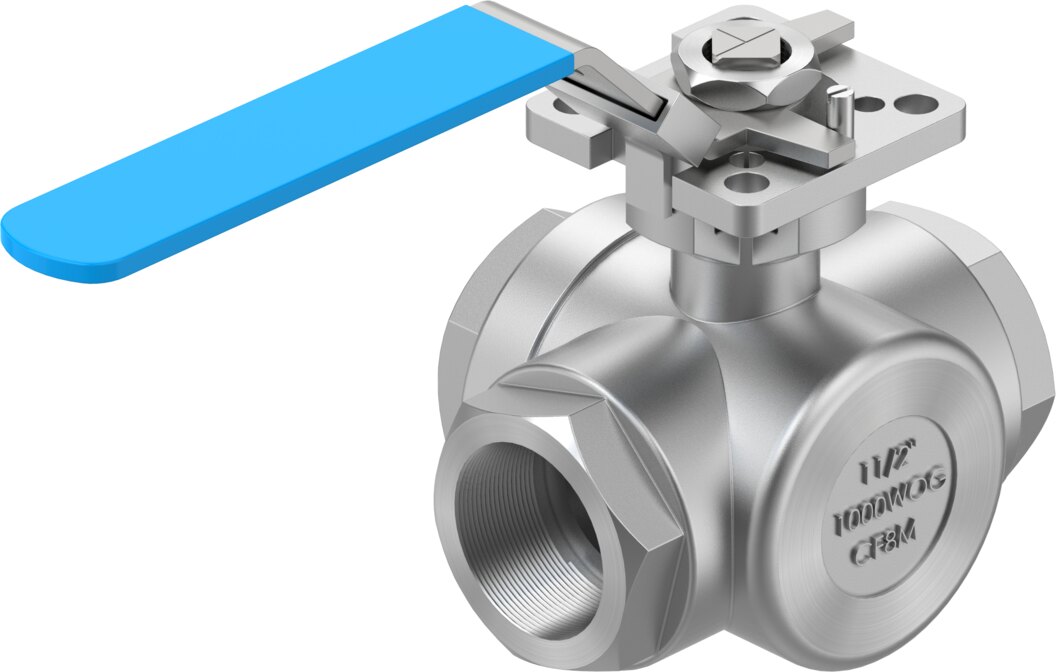

3-way ball valve T-port stainless steel 1 1/2 NPT DN 40 PN 63 VZBE-11/2-T-63-F-3T-F0507-M-V15V15 - Festo 8096957

Festo ✓ Original product Brand new

Shut-off and diverting in DN 40 lines up to PN 63: the 3-way ball valve with T-bore VZBE-11/2-T-63-F-3T-F0507-M-V15V15 in cast stainless steel with connection 1 1/2 NPT. It accepts a quarter turn actuator via the F0507 flange pattern to ISO 5211. Media from -20 to 200 °C.

Net
€447.96
excl. VAT
Item FES-8096957
Manufacturer no. VZBE-11/2-T-63-F-3T-F0507-M-V15V15
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With the 3-way ball valve with T-bore VZBE-11/2-T-63-F-3T-F0507-M-V15V15 you switch media flows in DN 40 lines, the cast stainless steel housing is rated for PN 63.

Key advantages

  • Valve rated for nominal pressure PN 63
  • Housing and ball in cast stainless steel 1.4408
  • ATEX explosion protection for zones 1, 2, 21 and 22
  • Mounting flange F0507 to ISO 5211 for direct actuator mounting
  • Breakaway torque 45.5 Nm at nominal pressure as basis for actuator sizing
  • Media temperature -20 to 200 °C

Applications

Festo lists the following media for VZBE-11/2-T-63-F-3T-F0507-M-V15V15: vapour, compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water, neutral fluids. Mounting position is freely selectable. Can also be used in hazardous areas, zones 1, 2, 21 and 22 to ATEX. A matching quarter turn actuator mounts directly on the ISO 5211 interface.

Technical data

FeatureValue
TypeVZBE-11/2-T-63-F-3T-F0507-M-V15V15
Festo part number8096957
DesignT-bore
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valve1 1/2 NPT
Switching position indicatorSlot direction = flow direction
Flange hole patternF0507
Inside diameter32 mm
Nominal size DN40
Valve function3/2
Flow directionReversible
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN45.5 Nm
Based on standardISO 5211
MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids
Media temperature-20 to 200 °C
Flow rate Kv T hole angled20.2 m³/h
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1.4408
Material seat sealPTFE
Material sealsPTFE
Material ballCast stainless steel
Material number ball1.4408
Material shaftHigh-alloy stainless steel
Material number shaft1.4401
Product weight3600 g
ApprovalCRN
CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC4 - Very high corrosion stress
ManufacturerFesto
Hersteller-NrVZBE-11/2-T-63-F-3T-F0507-M-V15V15
EAN4052568453596
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4408
ThreadNPT 1 1/2
Nominal size DN [mm]40
Nominal pressure PN [bar]63
Seal materialPTFE
Housing materialStainless steel 1.4408
Function3/2
Actuation typeMechanical
Medientemperatur [°C]-20 bis 200
NormISO 5211
SeriesVZBE
