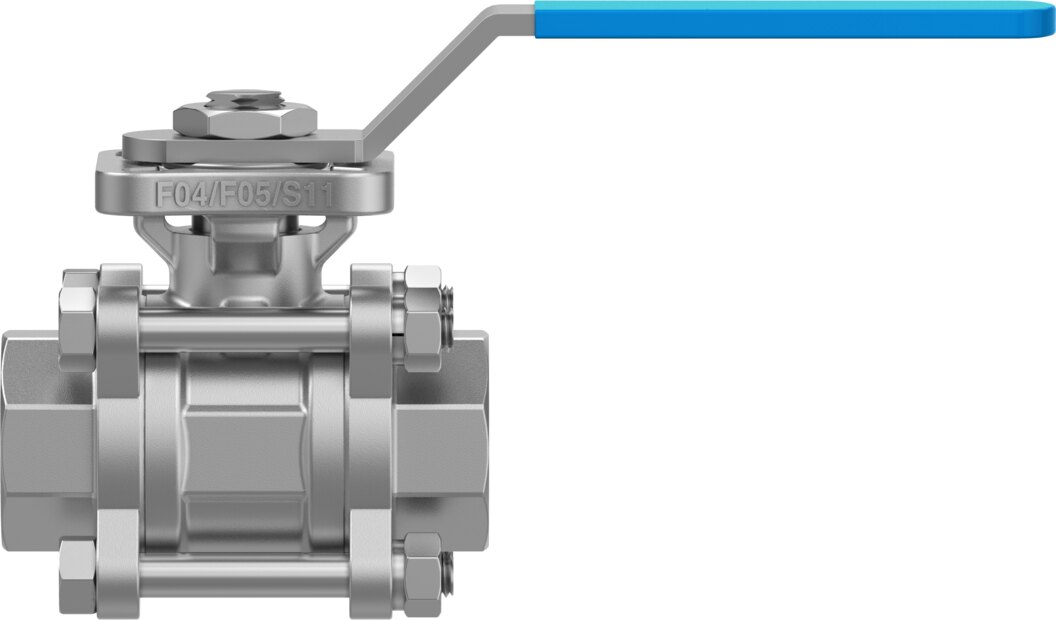

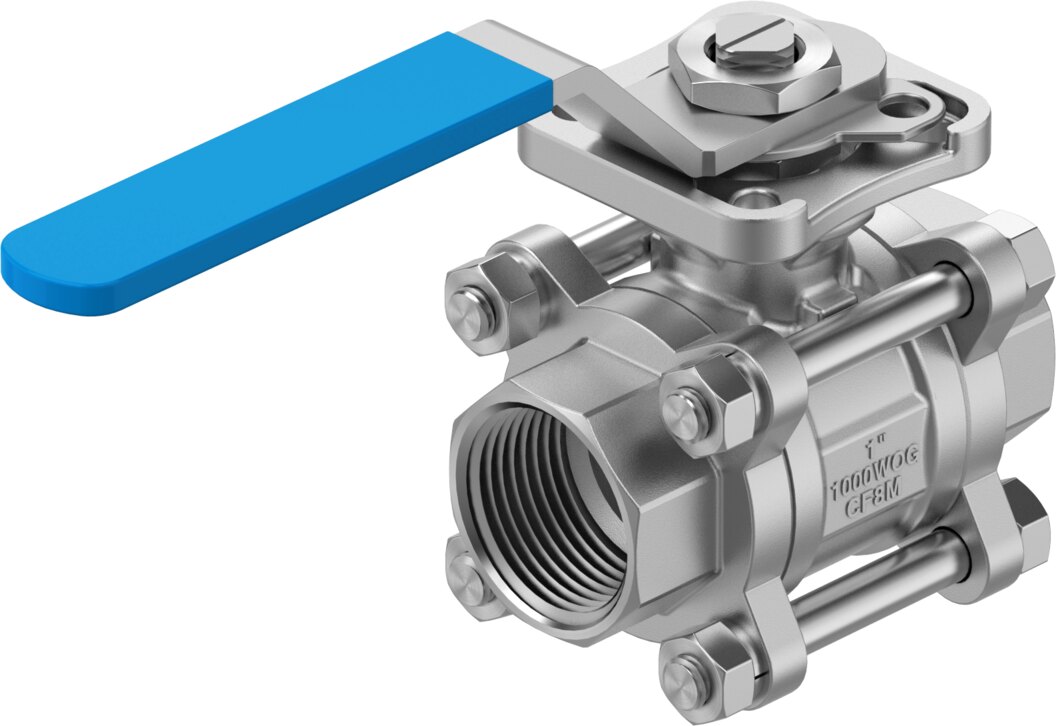

2-way ball valve stainless steel 1 NPT DN 25 PN 63 VZBE-1-T-63-T-2-F0405-M-V15V15 - Festo 8096667

Festo ✓ Original product Brand new

The 2-way ball valve VZBE-1-T-63-T-2-F0405-M-V15V15 for DN 25 lines is rated for nominal pressure PN 63 and comes with connection 1 NPT. It accepts a quarter turn actuator via the F0405 flange pattern to ISO 5211, flow rate is Kv 25.1 m³/h. Media from -20 to 200 °C.

Net
€106.59
excl. VAT
Item FES-8096667
Manufacturer no. VZBE-1-T-63-T-2-F0405-M-V15V15
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The 2-way ball valve VZBE-1-T-63-T-2-F0405-M-V15V15 shuts off pipelines of nominal size DN 25 and is rated for nominal pressure PN 63. Sizing value: Kv 25.1 m³/h.

Benefits

  • Flow rate Kv 25.1 m³/h at nominal size DN 25
  • Nominal pressure PN 63 for the valve body
  • Mounting flange F0405 to ISO 5211 for direct actuator mounting
  • Breakaway torque 15 Nm at nominal pressure as basis for actuator sizing
  • Media temperature -20 to 200 °C
  • Housing and ball in cast stainless steel 1.4408

Applications

Suitable for vapour, compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water, neutral fluids. Any mounting position. The VZBE type 8096667 is approved for ATEX zones 1, 2, 21 and 22. For automation, size the quarter turn actuator according to the breakaway torque.

Technical data

FeatureValue
TypeVZBE-1-T-63-T-2-F0405-M-V15V15
Festo part number8096667
Design2-way ball valve
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valve1 NPT
Switching position indicatorSlot direction = flow direction
Flange hole patternF0405
Inside diameter25 mm
Nominal size DN25
Valve function2/2
Flow directionReversible
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN15 Nm
Based on standardISO 5211
MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids
Media temperature-20 to 200 °C
Flow rate Kv25.1 m³/h
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1.4408
Material seat sealPTFE, modified
Material sealsFluoro rubber, PTFE
Material ballCast stainless steel
Material number ball1.4408
Material shaftHigh-alloy stainless steel
Material number shaft1.4401
Product weight1100 g
ApprovalCRN
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC4 - Very high corrosion stress
Weight1.1 kg
ManufacturerFesto
Hersteller-NrVZBE-1-T-63-T-2-F0405-M-V15V15
EAN4052568453381
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4408
ThreadNPT 1
Nominal size DN [mm]25
Nominal pressure PN [bar]63
Seal materialFKM, PTFE
Housing materialStainless steel 1.4408
Function2/2
Actuation typeMechanical
Medientemperatur [°C]-20 bis 200
NormISO 5211
SeriesVZBE
