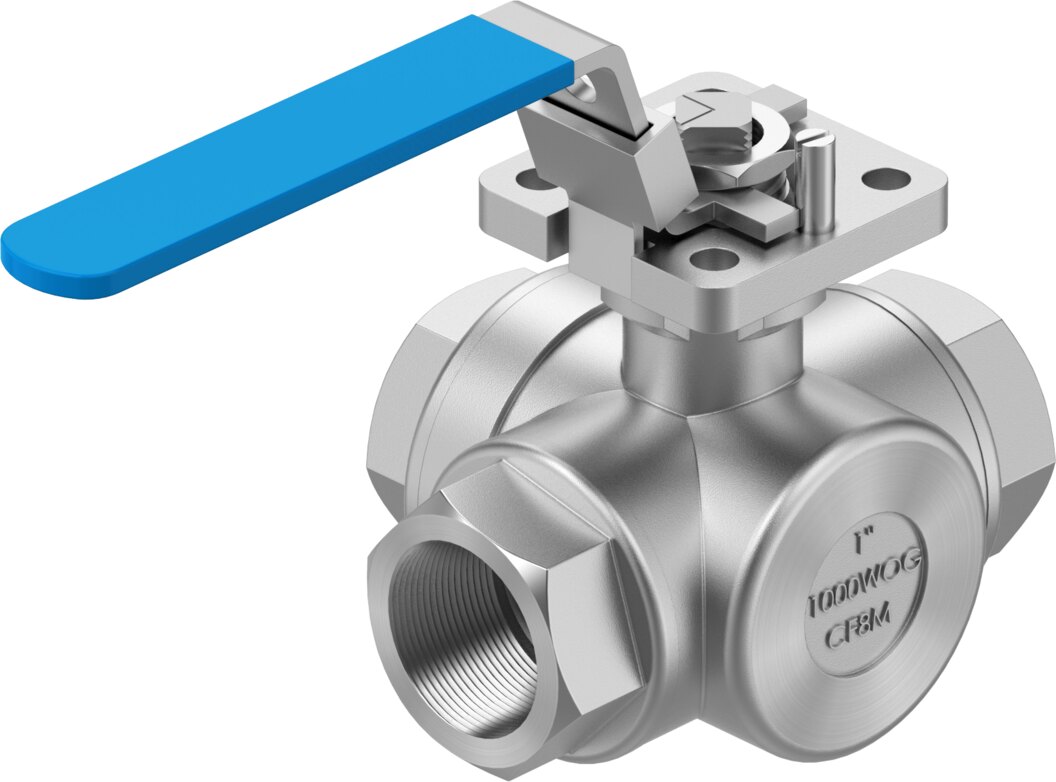

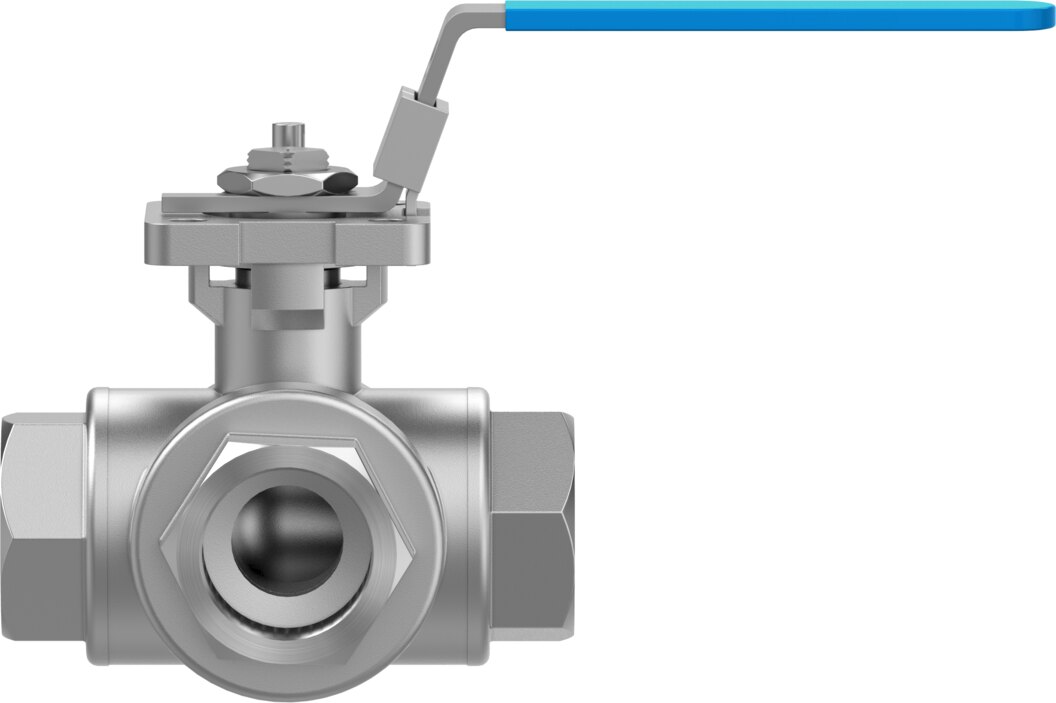

3-way ball valve L-port stainless steel 1 NPT DN 25 PN 63 VZBE-1-T-63-F-3L-F05-M-V15V15 - Festo 8096947
The 3-way ball valve with L-bore VZBE-1-T-63-F-3L-F05-M-V15V15 for DN 25 lines is rated for nominal pressure PN 63 and comes with connection 1 NPT. It accepts a quarter turn actuator via the F05 flange pattern to ISO 5211, flow rate is Kv 4.1 m³/h in the L path. Media from -20 to 200 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For process lines DN 25 up to PN 63, the 3-way ball valve with L-bore VZBE-1-T-63-F-3L-F05-M-V15V15 provides shut-off with 1 NPT connection and ISO 5211 flange. Sizing value: Kv 4.1 m³/h in the L path.
Benefits at a glance
- Kv value 4.1 m³/h in the L path
- Nominal pressure PN 63 for the valve body
- Breakaway torque 25.2 Nm at nominal pressure as basis for actuator sizing
- Media temperature -20 to 200 °C
- Mounting flange F05 to ISO 5211 for direct actuator mounting
- Housing and ball in cast stainless steel 1.4408
Applications
Approved media: vapour, compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water, neutral fluids. Any mounting position. The VZBE type 8096947 is approved for ATEX zones 1, 2, 21 and 22. A matching quarter turn actuator mounts directly on the ISO 5211 interface.
Technical data
| Feature | Value |
|---|---|
| Type | VZBE-1-T-63-F-3L-F05-M-V15V15 |
| Festo part number | 8096947 |
| Design | L-bore |
| Type of actuation | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Connection Process valve | 1 NPT |
| Switching position indicator | Slot direction = flow direction |
| Flange hole pattern | F05 |
| Inside diameter | 20 mm |
| Nominal size DN | 25 |
| Valve function | 3/2 |
| Flow direction | Reversible |
| Nominal pressure PN | 63 |
| Breakaway torque at differential pressure, nominal pressure, process valve PN | 25.2 Nm |
| Based on standard | ISO 5211 |
| Medium | Vapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids |
| Media temperature | -20 to 200 °C |
| Flow rate Kv L hole | 4.1 m³/h |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material housing | Cast stainless steel |
| Material number housing | 1.4408 |
| Material seat seal | PTFE |
| Material seals | PTFE |
| Material ball | Cast stainless steel |
| Material number ball | 1.4408 |
| Material shaft | High-alloy stainless steel |
| Material number shaft | 1.4401 |
| Product weight | 1700 g |
| Approval | CRN |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Corrosion resistance class CRC | 4 - Very high corrosion stress |
| Weight | 1.6 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VZBE-1-T-63-F-3L-F05-M-V15V15 |
| EAN | 4052568453497 |
| Zolltarifnummer | 84818081 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel 1.4408 |
| Thread | NPT 1 |
| Nominal size DN [mm] | 25 |
| Nominal pressure PN [bar] | 63 |
| Seal material | PTFE |
| Housing material | Stainless steel 1.4408 |
| Function | 3/2 |
| Actuation type | Mechanical |
| Medientemperatur [°C] | -20 bis 200 |
| Norm | ISO 5211 |
| Series | VZBE |
