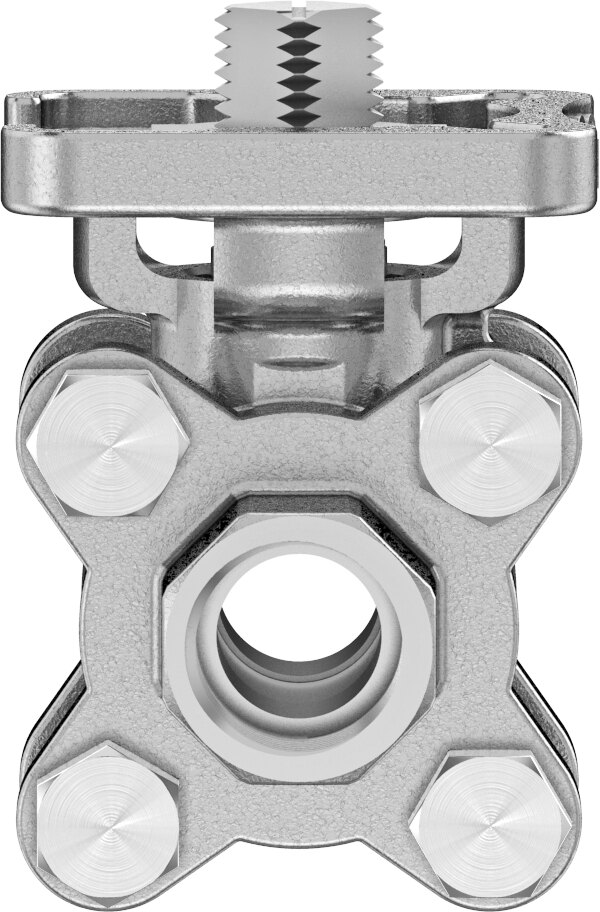

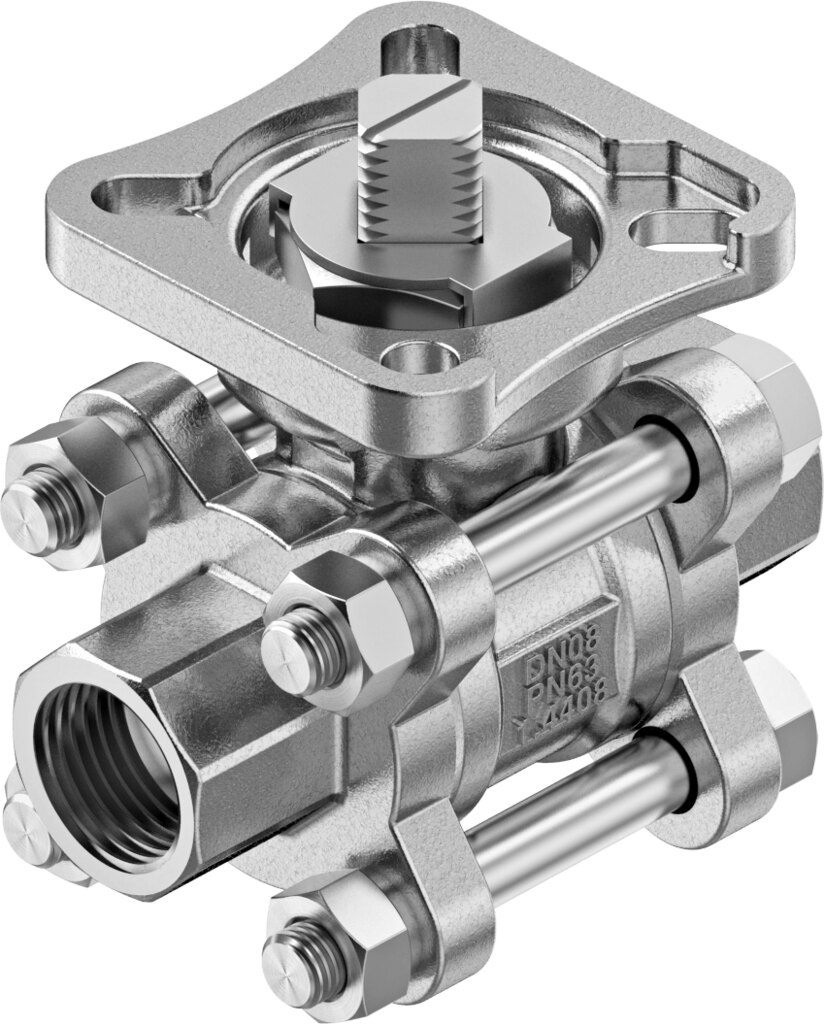

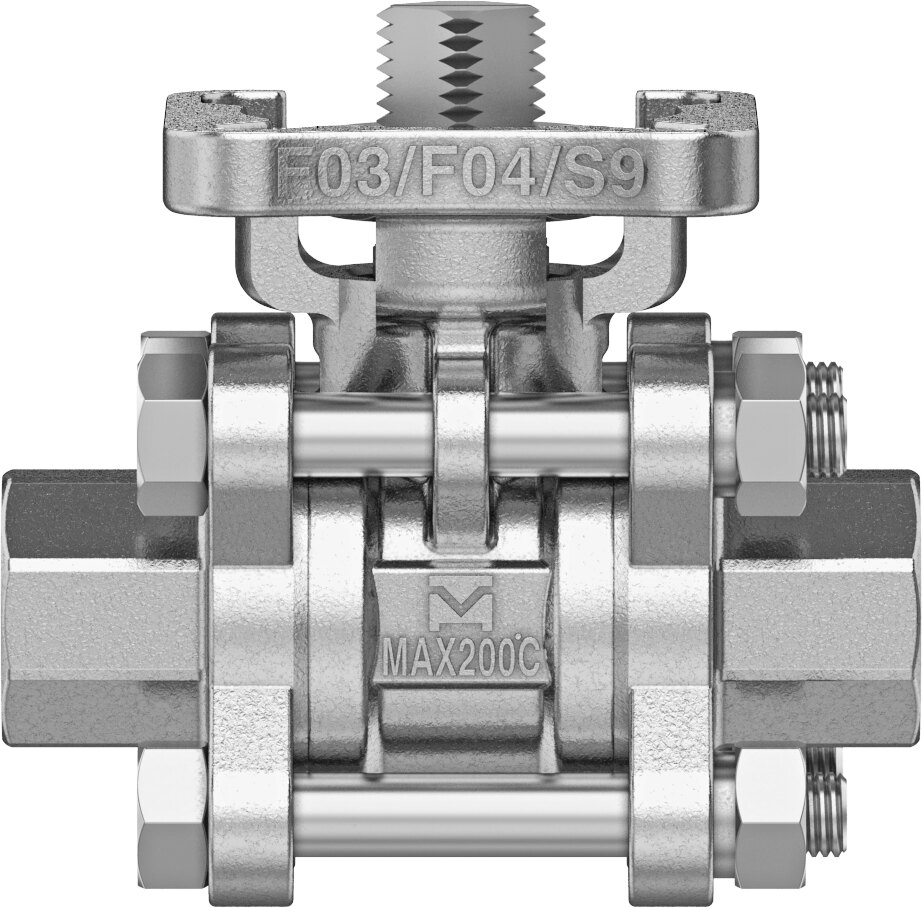

2-way ball valve stainless steel with weld ends DN 8 PN 63 VZBE-1/4-WA-63-T-2-F0304-V15V15 - Festo 8089038
The 2-way ball valve VZBE-1/4-WA-63-T-2-F0304-V15V15 for DN 8 lines is rated for nominal pressure PN 63 and comes with connection weld-on end to ASME B16.11. It accepts a quarter turn actuator via the F03, F04 flange pattern to ISO 5211, flow rate is Kv 19 m³/h. Media from -20 to 200 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With the 2-way ball valve VZBE-1/4-WA-63-T-2-F0304-V15V15 you switch media flows in DN 8 lines, the cast stainless steel housing is rated for PN 63. VZBE-1/4-WA-63-T-2-F0304-V15V15 reaches Kv 19 m³/h.
Benefits
- Flow rate Kv 19 m³/h at nominal size DN 8
- Nominal pressure PN 63 for the valve body
- Breakaway torque 7 Nm at nominal pressure as basis for actuator sizing
- Flange pattern F03, F04 to ISO 5211, quarter turn actuator mounts directly
- Media from -20 to 200 °C
- Housing and ball in cast stainless steel 1.4408/CF8M
Applications
Festo lists the following media for VZBE-1/4-WA-63-T-2-F0304-V15V15: vapour, compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water, neutral fluids. Any mounting position. The VZBE type 8089038 is approved for ATEX zones 1, 2, 21 and 22. For automation, size the quarter turn actuator according to the breakaway torque.
Technical data
| Feature | Value |
|---|---|
| Type | VZBE-1/4-WA-63-T-2-F0304-V15V15 |
| Festo part number | 8089038 |
| Design | 2-way ball valve |
| Type of actuation | Mechanical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Connection Process valve | Weld-on end to ASME B16.11 |
| Switching position indicator | Slot direction = flow direction |
| Flange hole pattern | F03, F04 |
| Inside diameter | 11.6 mm |
| Nominal size DN | 8 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Nominal pressure PN | 63 |
| Breakaway torque at differential pressure, nominal pressure, process valve PN | 7 Nm |
| Based on standard | ISO 5211 |
| Medium | Vapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids |
| Media temperature | -20 to 200 °C |
| Flow rate Kv | 19 m³/h |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material housing | Cast stainless steel |
| Material number housing | 1.4408/CF8M |
| Material seat seal | PTFE, modified |
| Material seals | Fluoro rubber, PTFE |
| Material ball | Cast stainless steel |
| Material number ball | 1.4408/CF8M |
| Material shaft | High-alloy stainless steel |
| Material number shaft | 1.4401 |
| Product weight | 400 g |
| Approval | CRN |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Corrosion resistance class CRC | 4 - Very high corrosion stress |
| Manufacturer | Festo |
| Hersteller-Nr | VZBE-1/4-WA-63-T-2-F0304-V15V15 |
| EAN | 4052568457921 |
| Zolltarifnummer | 84818081 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel 1.4408 |
| Nominal size DN [mm] | 8 |
| Nominal pressure PN [bar] | 63 |
| Seal material | FKM, PTFE |
| Housing material | Stainless steel 1.4408 |
| Function | 2/2 |
| Actuation type | Mechanical |
| Medientemperatur [°C] | -20 bis 200 |
| Norm | ISO 5211 |
| Series | VZBE |
